Stability for the Erdős-Rothschild problem

Abstract

Given a sequence $\boldsymbol {k} := (k_1,\ldots ,k_s)$ of natural numbers and a graph G, let $F(G;\boldsymbol {k})$ denote the number of colourings of the edges of G with colours $1,\dots ,s$ , such that, for every $c \in \{1,\dots ,s\}$ , the edges of colour c contain no clique of order $k_c$ . Write $F(n;\boldsymbol {k})$ to denote the maximum of $F(G;\boldsymbol {k})$ over all graphs G on n vertices. This problem was first considered by Erdős and Rothschild in 1974, but it has been solved only for a very small number of nontrivial cases. In previous work with Pikhurko and Yilma, (Math. Proc. Cambridge Phil. Soc. 163 (2017), 341–356), we constructed a finite optimisation problem whose maximum is equal to the limit of $\log _2 F(n;\boldsymbol {k})/{n\choose 2}$ as n tends to infinity and proved a stability theorem for complete multipartite graphs G.

In this paper, we provide a sufficient condition on $\boldsymbol {k}$ which guarantees a general stability theorem for any graph G, describing the asymptotic structure of G on n vertices with $F(G;\boldsymbol {k}) = F(n;\boldsymbol {k}) \cdot 2^{o(n^2)}$ in terms of solutions to the optimisation problem. We apply our theorem to systematically recover existing stability results as well as all cases with $s=2$ . The proof uses a version of symmetrisation on edge-coloured weighted multigraphs.

1 Introduction

Let a nonincreasing sequence $\boldsymbol {k} = (k_1,\ldots ,k_s) \in \mathbb {N}^s$ of natural numbers be given. By an s-edge-colouring (or colouring for brevity) of a graph $G=(V,E)$ , we mean a function $\chi :E\to [s]$ , where we denote $[s]:=\{1,\dots ,s\}$ . Note that colourings do not have to be proper, that is, adjacent edges can have the same colour. A colouring $\chi $ of G is called $\boldsymbol {k}$ -valid if, for every $c\in [s]$ , the colour-c subgraph $\chi ^{-1}(c)$ contains no copy of $K_{k_c}$ , the complete graph of order $k_c$ . Write $F(G; \boldsymbol {k})$ for the number of $\boldsymbol {k}$ -valid colourings of G.

In a previous paper with Yilma [24], we investigated the Erdős-Rothschild problem of determining $F(n;\boldsymbol {k})$ , the maximum of $F(G;\boldsymbol {k})$ over all graphs G on n vertices, and the $\boldsymbol {k}$ -extremal graphs, that is order-n graphs which attain this maximum. We assume throughout the paper, as we did there, that $s\ge 2$ and that $k_c \geq 3$ for all $c \in [s]$ (since $k_c=2$ just forbids colour c and the problem reduces to one with $s-1$ colours).

The case when $k_1 = \ldots = k_s =: k$ , which we denote by $\boldsymbol {k}=(k_1,\ldots ,k_s)=(k;s)$ , was first considered by Erdős and Rothschild in 1974 (see [7, 8]). A trivial lower bound on $F(n;(k;s))$ is obtained by taking the largest $K_k$ -free graph on n vertices, namely, the Turán graph $T_{k-1}(n)$ which is the complete $(k-1)$ -partite graph with parts as equal as possible. Any s-edge-colouring of this graph is $\boldsymbol {k}$ -valid, so we have

(1.1) $$ \begin{align} F(n;(k;s)) \geq s^{t_{k-1}(n)}, \end{align} $$

where $t_{k-1}(n)$ is the number of edges in $T_{k-1}(n)$ . In particular, Erdős and Rothschild conjectured that, when $\boldsymbol {k}=(3,3)$ and n is sufficiently large, the trivial lower bound (1.1) is in fact tight and, furthermore, $T_{2}(n)$ is the unique $\boldsymbol {k}$ -extremal graph on n vertices. The conjecture was verified for all $n \geq 6$ by Yuster [29] (who also computed $F(n;(3,3))$ for smaller n). Proving Yuster’s extension of the conjecture, Alon et al. [1] showed that an analogous result holds for two and three colours: for large n, the Turán graph $T_{k-1}(n)$ is the unique $\boldsymbol {k}$ -extremal graph for $\boldsymbol {k}=(k,k)$ and $\boldsymbol {k}=(k,k,k)$ . The proof of this result uses Szemerédi’s regularity lemma, so the graphs to which it applies are very large indeed. However, the assertions are not true for all numbers n of vertices. As was remarked in [1], the assertions do not hold when $k \leq n < s^{(k-2)/2}$ , as in this case, a random colouring of the edges of $K_n$ with s colours contains no monochromatic $K_k$ with probability more than $\frac {1}{2}$ . Thus, for this range of n, we have $F(n;(k;s))> s^{\binom {n}{2}}/2 \geq s^{t_{k-1}(n)}$ . Hàn and Jiménez [9] used graph containers to obtain an essentially optimal lower bound for the order n of graphs for which the trivial lower bound (1.1) for $s=2,3$ is tight.

In this paper, we are only interested in large n. It was proved in [1, Proposition 5.1] that the limit

(1.2) $$ \begin{align} F(\boldsymbol{k}):=\lim_{n\to\infty} \frac{\log_2 F(n;\boldsymbol{k})}{n^2/2} \end{align} $$

exists (and is positive) when $\boldsymbol {k}=(k;s)$ . It can be easily seen that the proof from [1] extends to an arbitrary fixed sequence $\boldsymbol {k}$ . The authors of [1] noted that when more than three colours are used, the behaviour of $F(n;(k;s))$ changes, making its determination both harder and more interesting. Namely, it was shown in [1, page 287] that if $s \geq 4$ (and $k \geq 3$ ), then $F(n;(k;s))$ is exponentially in $n^2$ larger than $s^{t_{k-1}(n)}$ .

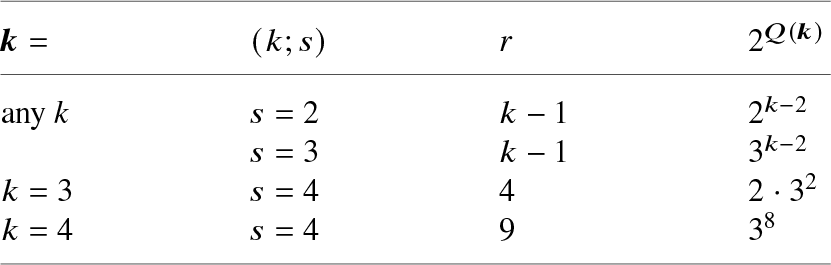

Table 1 Known results.

(*) These graphs are known to be asymptotically extremal only: they achieve the right exponent in $F(n;\boldsymbol {k})$ .

In particular, any extremal graph has to contain many copies of $K_k$ . The authors of [1] determined $F(\boldsymbol {k})$ for $\boldsymbol {k}=(3,3,3,3)$ and $\boldsymbol {k}=(4,4,4,4)$ , where $T_4(n)$ and $T_9(n)$ , respectively, achieve the right exponent. Pikhurko and Yilma [25] were able to obtain an exact result for these cases: that these Turán graphs are the unique respective extremal graphs. Recently, Botler et al. [4] announced the determination of $F(\boldsymbol {k})$ for $\boldsymbol {k}=(3;5),(3;6)$ . For $s=6$ , they proved that $T_8(n)$ is the unique extremal graph, and also proved a stability result. For $s=5$ , they uncovered new behaviour: for large n, there is an infinite family $\{S_{\alpha ,\beta }(n): 0 \leq \alpha +\beta \leq \frac {1}{4}\} \cup \{T_{\alpha ,\beta }(n): 0 \leq \alpha , \beta \leq \frac {1}{4}\}$ of asymptotically optimal graphs with either $4$ , $6$ or $8$ parts, where $S_{\alpha ,\beta }(n)$ denotes the complete partite graph with parts of size $\frac {n}{4},\frac {n}{4},\alpha n,\alpha n,\beta n,\beta n,(\frac {1}{4}-\alpha -\beta ) n,(\frac {1}{4}-\alpha -\beta ) n$ and $T_{\alpha ,\beta }(n)$ denotes the complete partite graph with parts of size $\alpha n, \alpha n, (\frac {1}{4}-\alpha )n, (\frac {1}{4}-\alpha )n, \beta n, \beta n, (\frac {1}{4}-\beta )n, (\frac {1}{4}-\beta )n$ . These are the only known results, asymptotic or exact.

Many other versions of the Erdős-Rothschild problem have been studied, where the goal is to maximise the number of colourings of some discrete object when one forbids certain coloured substructures. Erdős and Rothschild themselves considered the generalisation where one forbids a monochromatic graph H. In [1], the authors showed that the trivial lower bound (1.1) is tight for large n when H is colour-critical, that is, the removal of any edge from H reduces its chromatic number (note that every clique is colour-critical). In a further generalisation, Balogh [3] considered edge-colourings in which a specific colouring of a fixed graph H is forbidden. Other authors have addressed this question in the cases of forbidden monochromatic matchings, stars, paths, trees and some other graphs in [12, 13], matchings with a prescribed colour pattern in [14], rainbow stars in [17] and multicoloured cliques in [15]. A so-called ‘q-analogue’ was addressed in [16], which considers a related problem in the context of vector spaces over a finite field $GF(q)$ . Alon and Yuster [2] studied a directed version of the problem, to determine the maximum number of T-free orientations of an n-vertex graph, where T is a given k-vertex tournament. The problem of counting monochromatic H-free edge-colourings in hypergraphs was studied in [11, 20, 21]. Additive versions have also been studied, where an underlying group [10] or set [22] with addition is coloured, and monochromatic triples $(x,y,z)$ with $x+y=z$ are forbidden.

1.1 An optimisation problem

This paper concerns the relation between the structure of almost extremal graphs for $F(n,\boldsymbol {k})$ and optimal solutions of a certain optimisation problem, Problem $Q_t$ , which we now define.

Problem $Q_t$ : Given a sequence $\boldsymbol {k} := (k_1,\ldots ,k_s) \in \mathbb {N}^s$ of natural numbers and $t\in \{0,1,2\}$ , determine

(1.3)

the maximum value of

(1.4) $$ \begin{align} q(\phi,\boldsymbol{\alpha}) := 2\sum_{\stackrel{1 \leq i < j \leq r}{\phi(ij) \neq \emptyset}} \alpha_i \alpha_j \log_2 |\phi(ij)| \end{align} $$

over the set of feasible solutions, that is, triples $(r,\phi ,\boldsymbol {\alpha })$ , such that

1. • $r \in \mathbb {N}$ and $\phi \in \Phi _t(r;\boldsymbol {k})$ , where $\Phi _t(r;\boldsymbol {k})$ is the set of all functions $\phi : \binom {[r]}{2} \rightarrow 2^{[s]}$ , such that

   $$\begin{align*}\phi^{-1}(c) := \left\{ ij \in \binom{[r]}{2} : c \in \phi(ij) \right\} \end{align*}$$
   is $K_{k_c}$ -free for every colour $c \in [s]$ and $|\phi (ij)|\ge t$ for all $ij\in \binom {[r]}{2}$ ;

2. • $\boldsymbol {\alpha } = (\alpha _1,\ldots ,\alpha _r) \in \Delta ^r$ , where $\Delta ^r$ is the set of all $\boldsymbol {\alpha } \in \mathbb {R}^r$ with $\alpha _i \geq 0$ for all $i \in [r]$ , and $\alpha _1 + \ldots + \alpha _r = 1$ .

Note that for $t=1,2$ , a triple necessarily has $r<R(\boldsymbol {k})$ where $R(\boldsymbol {k})$ is the Ramsey number of $\boldsymbol {k}$ (i.e. the minimum R, such that $K_R$ admits no $\boldsymbol {k}$ -valid s-edge-colouring). Thus, the maximum in (1.3) is attained for $t=1,2$ since $q(r,\phi ,\cdot )$ is continuous for each of the finitely many pairs $(r,\phi )$ , and is a (nonempty) compact space. It is also attained for $t=0$ by (1.5) below. We call $\phi \in \Phi _0(r;\boldsymbol {k})$ a colour pattern and $\boldsymbol {\alpha } \in \Delta ^r$ a vertex weighting. A triple $(r,\phi ,\boldsymbol {\alpha })$ is called $Q_t$ -optimal if it attains the maximum, that is, and $q(r,\phi ,\boldsymbol {\alpha })=Q_t(\boldsymbol {k})$ . One can easily show [24, Lemma 6] that

(1.5) $$ \begin{align} Q(\boldsymbol{k}) := Q_2(\boldsymbol{k}) = Q_1(\boldsymbol{k})=Q_0(\boldsymbol{k}). \end{align} $$

Note that a $Q_0$ -optimal triple can have r arbitrarily large, by, for example, adding vertices of weight 0 or splitting an existing vertex into two clones. Let be the set of $Q_t$ -optimal triples $(r,\phi ,\boldsymbol {\alpha })$ . Let be the set of with $\alpha _i>0$ for every $i \in [r]$ . Let be the set of basic optimal solutions, which are $Q_2$ -optimal triples $(r,\phi ,\boldsymbol {\alpha })$ with $\alpha _i>0$ for every $i \in [r]$ .

Given vectors $\boldsymbol {a}=(a_1,\ldots ,a_s)$ and $\boldsymbol {b}=(b_1,\ldots ,b_t)$ , write $\boldsymbol {a}\leq \boldsymbol {b}$ if $a_i \leq b_i$ for all $i \leq \max \{s,t\}$ where $a_i:=0$ for all $i>s$ and $b_i:=0$ for all $i>t$ . We write $\| \boldsymbol {a}-\boldsymbol {b}\|_1 := \sum _{i \leq \max \{s,t\}}|a_i-b_i|$ for the $\ell ^1$ -distance between $\boldsymbol {a}$ and $\boldsymbol {b}$ . In this paper, we always take $\log $ to the base $2$ ; from now on, we omit any subscript.

One should think of feasible triples $(r,\phi ,\boldsymbol {\alpha })$ as vertex-weighted edge-coloured multigraphs. It is not hard to show that $F(\boldsymbol {k})\geq Q(\boldsymbol {k})$ . Indeed, given $\boldsymbol {k}$ , a $Q_1$ -optimal triple $(r,\phi ,\boldsymbol {\alpha })$ and $n \in \mathbb {N}$ , take the complete r-partite n-vertex graph $K_{\boldsymbol {\alpha }}(n)$ whose parts $X_1,\ldots ,X_r$ satisfy $|\,|X_i|-\alpha _i n\,| \leq 1$ for all $i \in [r]$ . Consider those s-edge-colourings of $K_{\boldsymbol {\alpha }}(n)$ in which, for $x \in X_i$ and $y \in X_j$ , we only allow colours in $\phi (ij)$ to be used on $xy$ . Every such colouring is $\boldsymbol {k}$ -valid, since every $\phi ^{-1}(c)$ is $K_{k_c}$ -free. Clearly, $F(n;\boldsymbol {k})$ is bounded below by the number of such colourings of $K_{\boldsymbol {\alpha }}(n)$ , which is

$$ \begin{align*}\prod_{ij\in\binom{[r]}{2}}|\phi(ij)|^{|X_i||X_j|} = 2^{q(\phi,\boldsymbol{\alpha})n^2/2+O(n)} = 2^{Q(\boldsymbol{k})n^2/2+O(n)}. \end{align*} $$

Taking the limit as $n\to \infty $ , we have $F(\boldsymbol {k})\geq Q(\boldsymbol {k})$ . With Yilma, we proved the following results relating the determination of $F(n;\boldsymbol {k})$ to Problem $Q_1$ , including a matching upper bound.

Theorem 1.1 [24].

The following hold for every $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ .

1. (i) For every $n \in \mathbb {N}$ , at least one of the $\boldsymbol {k}$ -extremal graphs of order n is complete multipartite.

2. (ii) $F(n;\boldsymbol {k})=2^{Q(\boldsymbol {k}){n\choose 2}+o(n^2)}$ , that is, $F(\boldsymbol {k})=Q(\boldsymbol {k})$ .

3. (iii) For every $\delta>0$ , there are $\eta>0$ and $n_0$ , such that if $G=(V,E)$ is a complete multipartite graph of order $n\ge n_0$ with (nonempty) parts $V_1,\dots ,V_r$ and $F(G;\boldsymbol {k})\ge 2^{(Q(\boldsymbol {k})-\eta )n^2/2}$ , then there is a $Q_1$ -optimal triple $(r,\phi ,\boldsymbol {\alpha '})$ , such that $\|\boldsymbol {\alpha }-\boldsymbol {\alpha }'\|_1 \leq \delta $ , where $\boldsymbol {\alpha }:=(\frac {|V_1|}{n},\dots ,\frac {|V_r|}{n})$ .

Thus, by (1.5), to determine $F(\boldsymbol {k})$ , it suffices to find the optimal solutions to Problem $Q_2$ , which has the smallest feasible set among the problems $Q_t$ . Unfortunately, this is difficult even when $\boldsymbol {k}$ is small. Given a pair $(r,\phi )$ , one can use the method of Lagrange multipliers to find a best possible $\boldsymbol {\alpha }$ for this pair; though the number of pairs $(r,\phi )$ is finite, there are generally too many for a computer search. Indeed, the upper bound of $R(\boldsymbol {k})$ for r grows large very quickly, though we expect the optimal r to be much smaller than $R(\boldsymbol {k})$ .

1.2 New results

The main contribution of this paper is a general stability theorem that determines the structure of any n-vertex graph G which is almost $\boldsymbol {k}$ -extremal, that is with $F(G,\boldsymbol {k})=F(n;\boldsymbol {k})\cdot 2^{o(n^2)}$ . This will show that the structure of any such graph is similar to an optimal solution to Problem $Q_0$ , and almost all valid colourings almost follow an optimal colour pattern. This stability result holds for all $\boldsymbol {k}$ satisfying a rather general condition, which we call the extension property. Given , one can easily check whether this condition holds. Indeed, we show that in almost all instances for which $F(\boldsymbol {k})$ is known, $\boldsymbol {k}$ satisfies a strong version of this property.

Definition 1.2 (Clones and extension property).

Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ . Given $r \in \mathbb {N}$ and $\phi \in \Phi _0(r;\boldsymbol {k})$ , we say that $i \in [r]$ is

1. • a clone of $j \in [r]\setminus \{ i \}$ (under $\phi $ ) if $\phi (ik) = \phi (jk)$ for all $k \in [r] \setminus \{ i,j\}$ and $|\phi (ij)| \leq 1$ ;

2. • a strong clone of j (under $\phi $ ) if additionally $\phi (ij) = \emptyset $ .

We say that $\boldsymbol {k}$ has

1. • the extension property if, for every and $\phi \in \Phi _0(r^*+1;\boldsymbol {k})$ , such that $\phi |_{\binom {[r^*]}{2}} = \phi ^*$ and $\sum _{i \in [r^*]: \phi (\{i,r^*+1\})\neq \emptyset }\alpha _i\log |\phi (\{ i,r^*+1 \})| = Q(\boldsymbol {k})$ , there exists $j \in [r^*]$ , such that $r^*+1$ is a clone of j under $\phi $ ;

2. • the strong extension property if in fact $r^*+1$ is a strong clone of j.

We explain the intuition and motivation behind this property in Section 2.1. For now, we remark that it is generally easy to check whether $\boldsymbol {k}$ has the extension property, when is known. We check it for some cases in Section 5. For $\boldsymbol {k}$ with the extension property, one can describe all solutions to in terms of basic optimal solutions. Every solution can be obtained by ‘blowing up’ a basic optimal solution $(r^*,\phi ^*,\boldsymbol {\alpha }^*)$ ; that is, taking arbitrarily many clones of the vertices and modifying part sizes so that the sum of vertex weights of clones of j equals $\alpha _j^*$ for every j; and then possibly adding colour c edges between clones of each j, without creating a c-coloured copy of $K_{k_c}$ , where c is the colour with the largest forbidden clique. Without loss of generality, we assume $k_1 \geq \ldots \geq k_s$ , so that $c=1$ . If $k_1=k_2$ , then one cannot add any colour $1$ edges between clones without creating a forbidden clique.

Lemma 1.3. Let $s \in \mathbb {N}$ and suppose that $\boldsymbol {k} \in \mathbb {N}^s$ with $k_1 \geq \ldots \geq k_s$ has the extension property. Let . Then if and only if there exist and a partition $V_1 \cup \ldots \cup V_{r^*}$ of $\{i: \alpha _i>0\}$ , such that the following hold.

1. (i) For all $j \in [r^*]$ , $\alpha ^*_j = \sum _{i \in V_j}\alpha _i$ .

2. (ii) For all $ij \in \binom {[r^*]}{2}$ , $i' \in V_i$ and $j' \in V_j$ , we have that $\phi (i'j') = \phi ^*(ij)$ .

3. (iii) For all $i \in [r^*]$ and distinct $i',j' \in V_i$ , we have that $\phi (i'j') \subseteq \{ 1 \}$ . Moreover, if at least one $\phi (i'i")$ for distinct $i',i"\in V_i$ and $i \in [r^*]$ is nonempty, then $k_1>k_2$ and there is an integer vector $\boldsymbol {\ell } \in \mathbb {N}^{r^*}$ , such that $\|\boldsymbol {\ell }\|_1 \leq k_1-1$ and $\phi ^{-1}(1)[V_i]$ is $K_{\ell _i+1}$ -free for all $i \in [r^*]$ .

Our main result is the following stability theorem. The edit distance $d_{\mathrm {edit}}(G,G')$ of two graphs $G,G'$ of the same order is the minimum number of edges that need to be added/removed to make $G'$ isomorphic to G. Given graphs G and H and $\delta>0$ , we say that G is $\delta $ -far from being H-free if it has edit distance at least $\delta |V(G)|^2$ to every H-free graph with the same number of vertices (note that we only need to delete edges here). Given disjoint $A,B \subseteq V(G)$ and $0 \leq d \leq 1$ , we say that $G[A,B]$ is $(\delta ,d)$ -regular if $d_G(A,B) := e_G(A,B)|A|^{-1}|B|^{-1} \in (d-\delta ,d+\delta )$ , and $|d_G(X,Y)-d_G(A,B)|<\delta $ for all $X\subseteq A$ , $Y \subseteq B$ with $|X|/|A|, |Y|/|B| \geq \delta $ . We are now ready to state the stability theorem. It says that, for any large n-vertex graph G which has close to the maximum number of valid colourings; that is, $F(G;\boldsymbol {k})=F(n,\boldsymbol {k}) \cdot 2^{o(n^2)}$ , for almost all of its valid colourings $\chi $ , there is a solution to which describes the structure of $\chi $ : it looks like a ‘blow-up’ of the solution. Lemma 1.3 describes the structure of solutions in terms of basic optimal solutions, and, therefore, there is a basic optimal solution $(r^*,\phi ^*,\boldsymbol {\alpha }^*)$ which describes the structure of $\chi $ . Part (ii) implies that, not only is there a partition of $V(G)$ , such that $\chi $ has many edges of every colour $c \in \phi ^*(ij)$ between the i-th and j-th parts (and few edges of any other colour), these edges are in fact well-distributed and of roughly equal densities between these parts.

Theorem 1.4 (Stability).

Let $s \in \mathbb {N}$ , and suppose that $\boldsymbol {k} \in \mathbb {N}^s$ with $k_1\geq \ldots \geq k_s$ has the extension property. Then for all $\delta> 0$ , there exist $n_0 \in \mathbb {N}$ and $\varepsilon> 0$ , such that the following holds. If G is a graph on $n \geq n_0$ vertices, such that

$$ \begin{align*}\frac{\log F(G;\textbf{k})}{\binom{n}{2}} \geq Q(\textbf{k}) - \varepsilon, \end{align*} $$

then, for at least $(1-2^{-\varepsilon n^2})F(G;\boldsymbol {k})$ colourings $\chi : E(G) \rightarrow [s]$ which are $\boldsymbol {k}$ -valid, there are and a partition $Y_1 \cup \ldots \cup Y_{r^*}$ of $V(G)$ , such that the following hold.

1. (i) For all $i \in [r^*]$ , we have that $|\,|Y_i| - \alpha ^*_in\,| < 1$ .

2. (ii) For all $c \in \phi ^*(ij)$ and $ij \in \binom {[r^*]}{2}$ , we have that $\chi ^{-1}(c)[Y_i,Y_j]$ is $(\delta ,|\phi ^*(ij)|^{-1})$ -regular. In particular, $e_G(Y_i,Y_j) \geq (1-s\delta )|Y_i||Y_j|$ .

3. (iii) Suppose $\sum _{i \in [r^*]}e(G[Y_i])> \delta n^2$ . Then $\boldsymbol {k}$ does not have the strong extension property, and all but at most $\delta n^2$ edges in $\bigcup _{i \in [r^*]}G[Y_i]$ are coloured with $1$ under $\chi $ . Moreover, if $\boldsymbol {\ell } := (\ell _1,\ldots ,\ell _{r^*}) \in \mathbb {N}^{r^*}$ is such that $G[Y_i]$ is $\delta $ -far from being $K_{\ell _i}$ -free, then $\|\boldsymbol {\ell }\|_1 \leq k_{1}-1$ .

Somewhat conversely, if (i), (iii) and $e_G(Y_i,Y_j)\geq (1-s\delta )|Y_i||Y_j|$ hold for some triple , a partition $Y_1,\ldots ,Y_{r^*}$ of an n-vertex graph G, and $\delta =o(1)$ , and each $G[Y_i]$ is $K_{\ell_i+1}$ -free for some vector $\boldsymbol {\ell }$ of $1$ -norm at most $k_1-1$ , then $F(G;\boldsymbol {k})\geq 2^{(Q(\boldsymbol {k})-o(1))n^2/2}$ .

One should note the similarities between the statements of Theorem 1.4 and Lemma 1.3. Indeed, this parallel shows that the gist of Theorem 1.4 is ‘near-extremal graphs look like blow-ups of solutions to ’. This is not quite true within parts, as here, G could be very far from a complete partite graph. Note also that the partition $Y_1 \cup \ldots \cup Y_{r^*}$ may be different for different colourings $\chi $ .

We illustrate these statements with the example $\boldsymbol {k} = (5,3)$ . As it is not hard to show (or see Lemma 1.8), consists of just one element, namely, $(2,\phi ^*,(\frac {1}{2},\frac {1}{2}))$ , where $\phi ^*(12):=\{1,2\}$ . Thus, by Theorem 1.4 and the remark after it, the set of almost extremal graphs can be described as consisting of graphs that are $o(n^2)$ -close to $T_2(n)$ with triangle-free graphs added into each part, or a $K_4$ -free graph added into one part. Note that the partition $Y_1\cup Y_2$ of Theorem 1.4 may depend on the colouring. For example, if G is $T_4(n)$ with parts $V_1,\ldots ,V_4$ , then Theorem 1.4 gives that for a typical colouring, there are disjoint pairs $ij,\ell m$ , such that almost all edges between $V_i$ and $V_j$ and between $V_{\ell }$ and $V_m$ are coloured with colour $1$ ; then $Y_1$ and $Y_2$ in Theorem 1.4 have to be $V_i\cup V_j$ and $V_{\ell } \cup V_m$ , up to changing $o(n)$ vertices.

If $\boldsymbol {k}$ has the strong extension property, then G is close to a complete multipartite graph by Theorem 1.4. So the pairs $(r^*,\boldsymbol {\alpha }^*)$ associated with the colourings specified by the theorem are close to each other up to a relabelling of colours. We have the following corollary of Theorem 1.4 for $\boldsymbol {k}$ with the strong extension property.

Corollary 1.5. Let $s \in \mathbb {N}$ , and suppose that $\boldsymbol {k} \in \mathbb {N}^s$ with $k_1\geq \ldots \geq k_s$ has the strong extension property. Then for all $\delta> 0$ , there exists $n_0 \in \mathbb {N}$ and $\varepsilon> 0$ , such that the following holds. Let G be a graph on $n \geq n_0$ vertices, such that

$$ \begin{align*} \frac{\log F(G;\boldsymbol{k})}{\binom{n}{2}} \geq Q(\boldsymbol{k}) - \varepsilon. \end{align*} $$

Then there are $r^*,\boldsymbol {\alpha }^*$ and a partition V(G) = $V_1 \cup \ldots \cup V_{r^*}$ with $\left |\,|V_i|-\alpha ^*_i n \,\right | < 1$ for all $i \in [r^*]$ , such that the edit distance between G and $K[V_1,\ldots ,V_{r^*}]$ is at most $\delta n^2$ . Moreover, for at least $(1-2^{-\varepsilon n^2}) \cdot F(G;\boldsymbol {k}) \ \boldsymbol {k}$ -valid s-edge-colourings $\chi $ of G, there exists where $\|\boldsymbol {\alpha }-\boldsymbol {\alpha }^*\|_1 \leq \delta $ , such that $\chi ^{-1}(c)[V_i,V_j]$ is $(\delta ,|\phi ^*(ij)|^{-1})$ -regular for all $ij \in \binom {[r^*]}{2}$ and $c \in \phi ^*(ij)$ .

Recall from Theorem 1.1 (i) that at least one extremal graph is complete multipartite. The following conjecture was made in [24]:

Conjecture 1.6. For every $\boldsymbol {k}$ , every $\boldsymbol {k}$ -extremal graph is complete multipartite.

In [23], we will use Corollary 1.5 to prove an exact result for all $\boldsymbol {k}$ with the strong extension property: that for such $\boldsymbol {k}$ , every large extremal graph is a complete multipartite graph with part ratios roughly $\alpha _1^*,\ldots ,\alpha _{r^*}^*$ for some $\boldsymbol {\alpha }^*$ coming from a basic optimal triple $(r^*,\phi ^*,\boldsymbol {\alpha }^*)$ . However, it seems much harder to prove an exact result for $\boldsymbol {k}$ without the strong extension property, as Theorem 1.4 as well as the example $\boldsymbol {k}=(5,3)$ above show that, in general, there are many asymptotically extremal graphs which are far from complete multipartite.

1.3 Applications

Armed with Theorem 1.4, to determine asymptotically $\boldsymbol {k}$ -extremal graphs, one need only solve Problem $Q_2$ for $\boldsymbol {k}$ , and then check for the extension property using the optimal solutions.

We apply our stability theorem to reprove stability for most of the cases in which $F(n;\boldsymbol {k})$ has already been determined, in a systematic fashion. For this, it suffices to solve Problem $Q_2$ (which follows from these earlier works), and to prove the extension property. Proving the extension property is straightforward: there are $O(s^r)$ possible attachments of a new vertex to some $(r,\phi ,\boldsymbol {\alpha })$ so a computer could check these for reasonable $s,r$ . Actually, when optimal solutions have a particular nice form, which they do in almost all known cases, one can reduce the problem to determining solutions to some simple exponential equation over the integers (see Lemma 5.3). We cannot prove stability for $\boldsymbol {k}=(3,3,3,3,3)$ , which does not have the extension property, strong or otherwise.

Theorem 1.7. Each $\boldsymbol {k}$ among $(k,k)$ , $(k,k,k)$ , $(3,3,3,3)$ , $(4,4,4,4)$ has the strong extension property, for all integers $k \geq 3$ . Thus, Theorem 1.4 applies to every such $\boldsymbol {k}$ .

As an example, we solve the optimisation problem for $s=2$ and state a version of Theorem 1.4 to illustrate it. Note that it would not be too difficult to prove stability for $s=2$ directly.

Lemma 1.8. Let $k \geq \ell \geq 3$ be positive integers, $\boldsymbol {k} := (k,\ell )$ and $\phi $ be the function on $\binom {[\ell -1]}{2}$ that assumes value $\{1,2\}$ for every pair. Then $Q(\boldsymbol {k}) = 1 - \frac {1}{\ell -1}$ and where $\boldsymbol {u}$ is uniform, and $\boldsymbol {k}$ has the extension property. Moreover, $\boldsymbol {k}$ has the strong extension property if and only if $k=\ell $ .

We write $\omega (G)$ for the clique number of a graph G; that is, the size of its largest clique.

Theorem 1.9. Let $k \geq \ell \geq 3$ be integers. For all $\delta>0$ , there exist $n_0\in \mathbb {N}$ and $\varepsilon>0$ , such that the following holds. Let G be a graph on $n\geq n_0$ vertices, such that $\log F(G;(k,\ell )) \geq (Q(k,\ell )-\varepsilon )\binom {n}{2}$ . Then there is a graph $G'$ which can be obtained from G by modifying at most $\delta n^2$ adjacencies, and an equipartition $V(G')=A_1 \cup \ldots \cup A_{\ell-1}$ , such that $G'[A_i,A_j]$ is complete for all distinct $i,j \in [\ell-1]$ , and $\sum_{i \in [\ell-1]}\omega(G'[A_i]) \leq k-1$ .

Moreover, for at least $(1-2^{-\varepsilon n^2})F(G;\boldsymbol {k})$ valid colourings $\chi $ of G, $\chi ^{-1}(c)[A_i,A_j]$ is $(\delta ,\frac {1}{2})$ -regular for $c=1,2$ and distinct $i,j \in [\ell-1]$ , and all but at most $\delta n^2$ edges in $\bigcup_{i \in [\ell-1]}G[A_i]$ are coloured with colour $1$ .

1.4 A sketch of the proof of Theorem 1.4

Since the proof of Theorem 1.4 is quite involved, we give a fairly detailed sketch first. Let G be a graph on n vertices, such that $\log F(G;\boldsymbol {k}) \geq (Q(\boldsymbol {k})-\varepsilon ) \binom {n}{2}$ . There are several ingredients to the proof.

Regularity lemma: G is close to some nearly optimal $(r,\phi ,\boldsymbol {\alpha })$ in . The multicolour version of Szemerédi’s regularity lemma was already used to prove the existing results on $F(n;\boldsymbol {k})$ in [1, 25] (for definitions and statements related to the regularity lemma, see Section 4.1). Given a $\boldsymbol {k}$ -valid colouring $\chi $ of G, we obtain an equitable partition $U_1 \cup \ldots \cup U_r$ in which almost all pairs are regular in all colours in $[s]$ . Define a colour pattern $\phi : \binom {[r]}{2} \rightarrow 2^{[s]}$ by adding the colour c to $\phi (ij)$ if $\chi ^{-1}(c)[V_i,V_j]$ is regular, and has density that is not too small. The embedding lemma (Lemma 4.6) implies that $\phi ^{-1}(c)$ is $K_{k_c}$ -free for all $c \in [s]$ . In this way, much of the information carried by $\chi $ is transferred to the tuple $\mathop {\mathrm {RL}}(\chi ) := (r,\phi ,\mathcal {U})$ , where $\mathcal {U} := \{ U_1,\ldots ,U_r \}$ .

Of course, one still needs to prove that this process is in some sense reversible: that the structure of G itself, as well as the structure of its colourings, can be recovered from $(r,\phi ,\mathcal {U})$ . This may not always be the case: we could have chosen some pathological $\chi $ to generate $(r,\phi ,\mathcal {U})$ . For example, in the case $\boldsymbol {k} = (3,3)$ , the unique extremal graph is $T_2(n) = K_{\lfloor n/2 \rfloor , \lceil n/2 \rceil }$ , but we could have chosen $\chi $ which colours every edge with colour $1$ . Then we cannot recover many further colourings from $(r,\phi ,\mathcal {U})$ .

For this reason, we only wish to consider tuples $(r,\phi ,\mathcal {U})$ which are the image of many colourings; that is, some nontrivial proportion of all colourings. Such a tuple is called popular; and we think of colourings $\chi $ which map to this tuple as being good representatives of the set of all colourings of G. Since, as we show in Proposition 4.10, almost every colouring maps to a popular tuple, it suffices to fix a popular tuple $(r,\phi ,\mathcal {U})$ and only consider colourings which map to this tuple. Intuitively, all such colourings should be similar.

Let $\alpha _i := 1/r$ for all $i \in [r]$ . Then . So the regularity lemma allows us to pass from G to a feasible solution to Problem $Q_0$ . It turns out that since $(r,\phi ,\mathcal {U})$ is popular, we have that

$$ \begin{align*} q(\phi,\boldsymbol{\alpha}) \geq Q(\boldsymbol{k}) - 2\varepsilon,\\[-15pt] \end{align*} $$

and, moreover, that $G[U_i,U_j]$ is almost complete for all $ij \in \binom {[r]}{2}$ (see Claim 4.1). Since we can choose r large (but still bounded), the number of edges of G within any $U_i$ can be made very small. Therefore, the structure of G can be recovered from $(r,\phi ,\mathcal {U})$ .

Symmetrisation: from to some . This is the main part of the proof (Lemma 3.1), and in it, we forget about G entirely, and instead concentrate on $(r,\phi ,\boldsymbol {\alpha })$ . We think of this object as a vertex-weighted coloured multigraph: the weights are given by $\boldsymbol {\alpha }$ , and the coloured edges by $\phi $ . We will apply a version of symmetrisation to $(r,\phi ,\boldsymbol {\alpha })$ . Symmetrisation was originally used in (ordinary) graphs by Zykov [30] to give a new proof of Turán’s theorem. In its most basic form, it is the process of considering two nonadjacent vertices x and y in a graph G, and replacing x by a clone of y, that is a vertex $y'$ whose neighbourhood is the same as that of y. With Yilma [24], we used symmetrisation to modify any $\boldsymbol {k}$ -extremal graph into one which is both extremal and complete multipartite (Theorem 1.1 (i)). Here, we use a version of symmetrisation as follows. Suppose that there is some $ij \in \binom {[r]}{2}$ , such that $|\phi (ij)| \leq 1$ . Then we create a new feasible solution on r parts by making vertex j a clone of vertex i, or vice versa. One of these choices will be such that the new solution $(r,\phi ',\boldsymbol {\alpha })$ satisfies $q(\phi ',\boldsymbol {\alpha }) \geq q(\phi ,\boldsymbol {\alpha })$ . At the end of this process, we will obtain (where f is for final), such that $|\phi _f(ij)| \geq 2$ whenever $i,j$ are not clones and

$$ \begin{align*}q(\phi_f,\boldsymbol{\alpha}) \geq Q(\boldsymbol{k}) - 2\varepsilon\\[-15pt] \end{align*} $$

(in fact, we split each step into small steps to get slowly evolving colour patterns $\phi =\phi _0,\ldots ,\phi _f$ ). The solution $(r,\phi _f,\boldsymbol {\alpha })$ corresponds to a smaller solution $(r_f,\psi _f,\boldsymbol {\alpha }_f)$ in which all clones are merged, so (and $q(\psi _f,\boldsymbol {\alpha }_f)=q(\phi _f,\boldsymbol {\alpha })$ is near-optimal). A compactness argument (Lemma 2.3) shows that there is some basic optimal solution $(r^*,\phi ^*,\boldsymbol {\alpha } ^*)$ which is very close to the near-optimal $(r_f,\phi _f,\boldsymbol {\alpha }_f)$ in a very strong sense: $\boldsymbol {\alpha }^*$ and $\boldsymbol {\alpha }_f$ are close in $\ell ^1$ -distance, and $\phi _f$ equals $\phi ^*$ between pairs with nonnegligible weights.

The extension property: $(r,\phi,\boldsymbol{\alpha})$ and $(r^*,\phi^*,\boldsymbol{\alpha}^*)$ are close. Here, we mean ‘close’ in the sense of Lemma 1.3. So we would like to show that when we merge pairs $ij$ with $|\phi(ij)| \leq 1$ in $(r,\phi,\boldsymbol{\alpha})$ we obtain a weight vector $\boldsymbol {u}$ which is close to $\boldsymbol{\alpha}^*$ in $\ell^1$ -distance, and $\phi \subseteq \phi^*$ on pairs of non-negligible size. (This turns out to be a simplification; see below.) It is of course far from clear that we have not changed $(r,\phi,\boldsymbol{\alpha})$ drastically to obtain $(r^*,\phi^*,\boldsymbol{\alpha}^*)$ . That this is not so is effectively a consequence of the extension property.

Having obtained $(r^*,\phi^*,\boldsymbol{\alpha}^*)$ from symmetrisation, we can now, with the benefit of hindsight, follow the procedure backwards. At each stage, we check whether the attachments of each vertex are large; if not we sequentially put bad vertices into an exceptional set, called $U_{i}^0$ at the i-th step. At each stage, the extension property implies that every vertex x is either in $U_{i}^0$ or it corresponds to some vertex k in the optimal solution $(r^*,\phi^*,\boldsymbol{\alpha}^*)$ ; that is, $\phi_i(xy) \subseteq \phi^*(kj)$ for all $j \in [r^*] \setminus \{ k \}$ and all vertices y corresponding to j. Let $U_{i}^k$ be the set of vertices corresponding to k at Step i. Note that $|\phi_i(xy)| \leq 1$ if $x,y \in U_{i}^k$ .

So, going back through the procedure, at each step there are a small fraction of vertices x which were exceptional but are no longer exceptional, and these are moved to the $U_{i}^k$ for which x corresponds to k; and there are a small fraction of vertices moved into $U_{i}^0$ . When we return to Step 0, we want to show that $\phi \subseteq \phi^*$ between any two classes $U_0^j$ and $U_0^k$ , even though the attachment between $U_{0}^0$ and the rest of the vertices, as well as the colour pattern within a class $U_{i}^k$ may have changed. Therefore, if we can show that $U_{0}^0$ is small (Claim 3.1.2) and every $U_{0}^k$ , $k>0$ , is about the same size throughout, then the procedure did not really change $(r,\phi,\boldsymbol{\alpha})$ much at all. Furthermore, we have a partition $U_{0}^0,U_{0}^1,\ldots,U_{0}^{r^*}$ of $[r]$ such that $\phi \subseteq \phi^*$ between $U_{0}^i,U_{0}^j$ , $i,j \neq 0$ ; and $|\phi(ij)| \leq 1$ within a class. In fact, the above sketch is a simplification, and though the exceptional set is always small, the other parts could change significantly in size. Nevertheless, we show that for each i there are $\tilde{r}_i$ nonzero nonexceptional parts with part ratios given by some $\tilde{\boldsymbol{\alpha}}_i$ , and , where $\phi_i\subseteq\tilde{\phi}_i$ between pairs and $|\phi_i(jk)| \leq 1$ within a class.

Recovering G from $(r^*,\phi ^*,\boldsymbol {\alpha }^*)$ . We now transfer the information we have gleaned about $(r,\phi ,\boldsymbol {\alpha })$ back to G itself. The partition of $[r]$ induces a partition $X_0,X_1,\ldots ,X_{r^*}$ on $V(G)$ . For every $\chi \in \mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))$ , we almost always have $\chi (xy) \in \phi ^*(ij)$ when $ij \in \binom {[r^*]}{2}$ and $x \in X_i, y \in X_j$ . In Claims 4.2 and 4.3, we show, for almost all these $\chi $ , that $\chi ^{-1}(c)[X_i,X_j]$ is regular. Indeed, if $\chi ^{-1}(c)[X_i,X_j]$ is not regular, then Lemma 4.4 implies that there is $c^* \in [s]$ and large sets $X \subseteq X_i$ and $Y \subseteq X_j$ between which the density of colour $c^*$ edges is significantly less than it is between $X_i$ and $X_j$ . But Corollary 4.8 implies that very few s-edge colourings of $G[X_i,X_j]$ are such that some colour class ( $c \in \phi ^*(ij)$ ) has size much less than the average $|\phi ^*(ij)|^{-1}$ .

The final step is to look inside the classes. We discretise by applying the regularity lemma again within each class (which is large by Lemma 2.8). This allows us to apply Lemma 2.5 to prove (iii).

1.5 Organisation

Most of the paper concerns optimal triples for Problem $Q_t$ rather than graphs. In Section 2, we collect some tools concerning these optimal triples, and some consequences of the extension property. The main result in Section 3 is the stability of optimal solutions given the extension property, which is the key component of the proof of our graph stability result, Theorem 1.4. In Section 4, we transfer statements on optimal triples to graphs, and prove Theorem 1.4, after stating and proving some tools concerning the regularity lemma. Then we prove Corollary 1.5. Section 5 concerns applications of Theorem 1.4, in particular, it contains the derivations of Theorems 1.7 and 1.9. We finish with some concluding remarks in Section 6.

2 Optimal solutions of Problem $Q_t$

We will now explore some properties of optimal solutions, which will be useful in later sections. The following proposition states that, in an optimal solution , every vertex i of positive weight attaches optimally, in that the normalised contribution $q_i(\phi ,\boldsymbol {\alpha })$ to the sum

$$ \begin{align*}q(\phi,\boldsymbol{\alpha}) = \sum_{i \in [r]}\alpha_i q_i(\phi,\boldsymbol{\alpha})\quad\text{where}\quad q_i(\phi,\boldsymbol{\alpha}) := \sum_{\substack{j \in [r] \setminus \{ i \}\\ \phi(ij)\neq\emptyset}}\alpha_j\log|\phi(ij)| \end{align*} $$

is equal to $Q(\boldsymbol {k})$ .

Proposition 2.1. Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ , and suppose that . For every $i \in [r]$ with $\alpha _i> 0$ , we have that $ q_i(\phi ,\boldsymbol {\alpha }) = Q(\boldsymbol {k}) $ .

Proof. Without affecting the statement, we can remove all indices i with $\alpha _i=0$ . So assume that $\alpha _i>0$ for all $i \in [r]$ . We use the method of Lagrange multipliers. Recall that the constraint is that $g(\boldsymbol {\alpha }) = 0$ , where $g(\boldsymbol {\alpha }) := \|\boldsymbol {\alpha }\|_1 - 1$ . Fix $\phi \in \Phi _0(r;\boldsymbol {k})$ , and let

$$ \begin{align*}\mathcal{L}(\boldsymbol{\alpha},\lambda) := q(\phi,\boldsymbol{\alpha}) - \lambda g(\boldsymbol{\alpha}). \end{align*} $$

Since the optimal vertex weighting $\boldsymbol {\alpha }$ is in the interior of $\Delta ^r$ (and $\mathcal {L}$ is continuously differentiable there), there is $\lambda $ , such that $(\boldsymbol {\alpha },\lambda )$ is a critical point of $\mathcal {L}$ . Thus,

$$ \begin{align*}\frac{\partial \mathcal{L}}{\partial \alpha_i} = 2q_i(\phi,\boldsymbol{\alpha}) - \lambda = 0\ \ \text{ and }\ \ \frac{\partial \mathcal{L}}{\partial \lambda} = \|\boldsymbol{\alpha}\|_1-1 = 0\quad\text{for all }i \in [r]. \end{align*} $$

We see that $q_i(\phi ,\boldsymbol {\alpha })$ , $i \in [r]$ , are equal to each other and the common value is $\lambda /2=\|\boldsymbol {\alpha }\|_1\lambda /2 = \sum _{i \in [r]}\alpha _iq_i(\phi ,\boldsymbol {\alpha })=q(\phi ,\boldsymbol {\alpha })=Q(\boldsymbol {k})$ . Therefore, every satisfies the equation in the statement of the proposition.

The next proposition shows that the objective function $q(\phi ,\cdot )$ is Lipschitz continuous.

Proposition 2.2 [24, Proposition 11].

Let $s,r \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ . Let $\phi \in \Phi _0(r;\boldsymbol {k})$ and $\boldsymbol {\alpha },\boldsymbol {\beta } \in \Delta ^r$ . Then

$$ \begin{align*}|q(\phi,\boldsymbol{\alpha})-q(\phi,\boldsymbol{\beta})| < 2(\log s)\|\boldsymbol{\alpha}-\boldsymbol{\beta}\|_1. \end{align*} $$

The next lemma states that whenever we have a feasible solution which is almost optimal, there is some vertex weighting $\boldsymbol {\alpha }^*$ which is close to $\boldsymbol {\alpha }$ , such that $(r,\phi ,\boldsymbol {\alpha }^*)$ is an optimal solution.

Lemma 2.3 [24, Claim 15].

Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ . For all $\delta> 0$ , there exists $\varepsilon> 0$ , such that the following holds. Let be such that $q(\phi ,\boldsymbol {\alpha }) \geq Q(\textbf {k}) - \varepsilon $ . Then there exists $\boldsymbol {\alpha }^* \in \Delta ^{r}$ , such that $\| \boldsymbol {\alpha }-\boldsymbol {\alpha }^* \|_1 < \delta $ and .

Consider the following definition.

Definition 2.4 (Capacity).

Given $r \in \mathbb {N}$ , a graph G with vertex set $[r]$ and positive integers $\ell _1,\ldots ,\ell _r$ , we write $(\ell _1,\ldots ,\ell _r)G$ to denote the graph obtained from G by, for each $i \in [r]$ , replacing vertex i with a clique $K_{\ell _i}$ , and joining every vertex in $K_{\ell _i}$ to all vertices in the cliques $K_{\ell _j}$ , such that j is a neighbour of i in G.

Let $\mathop {\mathrm {Cap}}(G,k)$ be the set of those $(\ell _1,\ldots ,\ell _r) \in \mathbb {N}^r$ for which $(\ell _1,\ldots ,\ell _r)G$ is $K_k$ -free.

Since $(1,\ldots ,1)G = G$ , certainly $\mathop {\mathrm {Cap}}(G,k) \neq \emptyset $ whenever G is $K_k$ -free. It is easy to see that, if $\boldsymbol {b} \in \mathbb {N}^r$ satisfies $\boldsymbol {b} \in \mathop {\mathrm {Cap}}(G,k)$ , then $\boldsymbol {a} \in \mathop {\mathrm {Cap}}(G,k)$ for all $\boldsymbol {a} \in \mathbb {N}^r$ with $\boldsymbol {a} \leq \boldsymbol {b}$ . We think of $\mathop {\mathrm {Cap}}(G,k)$ as being a measure of how far a $K_k$ -free graph G is from containing a copy of $K_k$ . For example, $(1,2,2) \in \mathop {\mathrm {Cap}}(K_3,6)$ , but $\mathop {\mathrm {Cap}}(K_3,4) = \{ (1,1,1) \}$ .

We now prove some facts about the capacity of $(\phi ^*)^{-1}(c)$ in a basic optimal solution $(r^*,\phi ^*,\boldsymbol {\alpha }^*)$ , that is $q(\phi ^*,\boldsymbol {\alpha }^*)=Q(\boldsymbol {k})$ , $|\phi ^*(ij)| \geq 2$ for all $ij \in \binom {[r^*]}{2}$ , and $\alpha _i^*>0$ for all $i \in [r^*]$ . The most important part is (ii), which is essentially a consequence of the fact that maximally $K_k$ -free graphs on r vertices have nontrivial capacity if and only if $r<k-1$ . This lemma will be important in proving Theorem 1.4 (iii).

Lemma 2.5. Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ with $k_1\geq \ldots \geq k_s$ . Let , and define $J_c := ([r^*],(\phi ^*)^{-1}(c))$ . Then the following statements hold.

1. (i) $J_c$ is maximally $K_{k_c}$ -free.

2. (ii) With $\boldsymbol {1} \in \mathbb {N}^{r^*}$ denoting the all- $1$ vector, we have

   $$ \begin{align*}\mathop{\mathrm{Cap}}(J_c,k_c) = \begin{cases} \{ \boldsymbol{1} \} \cup \{ \boldsymbol{\ell} \in \mathbb{N}^{r^*} : \|\boldsymbol{\ell}\|_1 \leq k_c-1 \} &\mbox{if } c = 1 \text{ and } k_1> k_2 \\ \{ \boldsymbol{1} \} &\mbox{otherwise;} \end{cases} \end{align*} $$
   furthermore, if $\mathop {\mathrm {Cap}}(J_1,k_1) \neq \{ \boldsymbol {1} \}$ , then $J_1 \cong K_{r^*}$ .

3. (iii) $r^* \geq k_{2}-1$ .

Proof. Suppose that (i) does not hold for some $c \in [s]$ . Then there exist distinct $i',j' \in [r^*]$ , such that $i'j' \notin E(J_c)$ , and $J_c \cup \{ i'j' \}$ is $K_{k_c}$ -free. Let $\phi ' : \binom {[r^*]}{2} \rightarrow 2^{[s]}$ be defined by setting $\phi '(ij) := \phi ^*(ij)$ whenever $ij \neq i'j'$ ; and setting $\phi '(i'j') := \phi ^*(ij) \cup \{ c \}$ . By construction, $\phi ' \in \Phi _2(r^*;\boldsymbol {k})$ . So . But

$$ \begin{align*}q(\phi',\boldsymbol{\alpha}^*) - q(\phi^*,\boldsymbol{\alpha}^*) = 2\alpha^*_{i'}\alpha^*_{j'}\log\left(1+\frac{1}{|\phi^*(i'j')|}\right) \geq 2\alpha^*_{i'}\alpha^*_{j'}\log \left( 1 + \frac{1}{s} \right)> 0, \end{align*} $$

a contradiction. This proves (i).

We now prove (ii). To do this, we need the following simple claim.

Claim 2.5.1. Let $k \in \mathbb {N}$ , and let H be maximally $K_k$ -free. Then every $x \in V(H)$ lies in a copy of $K_{k-1}$ if and only if $|V(H)| \geq k-1$ .

Proof of Claim.

To prove the claim, note that the ‘only if’ direction is trivial. Suppose now that the other direction does not hold; that is, $r := |V(H)| \geq k-1$ and there exists $x \in V(H)$ which does not lie in a copy of $K_{k-1}$ . First consider the case when $N_H(x) = V(H) \setminus \{ x \}$ . Then $H-x$ is a $K_{k-2}$ -free graph on at least $k-2$ vertices. Thus, there is a nonedge e in $H-x$ . Let $H' := H \cup \{ e \}$ . Then $H'-x$ is $K_{k-1}$ -free, and since x not does lie in a $K_{k-1}$ in H, x does not lie in a copy of $K_k$ in $H'$ . Therefore, $H'$ is $K_k$ -free, a contradiction.

Consider now the case when there is some $y \in V(H-x)$ , such that $xy \notin E(H)$ . Then $H" := H \cup \{ xy \}$ is $K_k$ -free, since any clique which lies in $H"$ but not H must contain x. Again, this is a contradiction, proving the claim.

Suppose that $\mathop {\mathrm {Cap}}((\phi ^*)^{-1}(c),k_c) \neq \{ \boldsymbol {1} \}$ . Then there exists $j \in [r^*]$ , such that $\boldsymbol {1}+\boldsymbol {e}_j \in \mathop {\mathrm {Cap}}((\phi ^*)^{-1}(c))$ . Observe that the graph $(\boldsymbol {1}+\boldsymbol {e}_j)J_c$ is obtained from $J_c$ by inserting a twin $j'$ of j and adding the edge $jj'$ . If $r^* \geq k_c-1$ , then j lies in a copy of $K_{k_c-1}$ in $J_c$ by Part (i) and the claim. So $j'$ together with the vertices in this copy form a copy of $K_{k_c}$ in $(\boldsymbol {1}+\boldsymbol {e}_j)J_c$ , a contradiction. So $r^* \leq k_c-2$ .

Suppose instead that $\mathop {\mathrm {Cap}}((\phi ^*)^{-1}(c),k_c) = \{ \boldsymbol {1} \}$ . Then $(\boldsymbol {1}+\boldsymbol {e}_j)J_c$ contains a copy of $K_{k_c}$ for every $j \in [r^*]$ , and this copy necessarily contains j (since $J_c$ itself is $K_{k_c}$ -free). Trivially, $r^* = |V(J_c)| \geq k_c-1$ . We have proved that

(2.1) $$ \begin{align} \mathop{\mathrm{Cap}}((\phi^*)^{-1}(c),k_c) = \{ \boldsymbol{1} \} \ \text{ if and only if } \ r^* \geq k_c-1.\\[-15pt]\nonumber \end{align} $$

Let $C := \{ c \in [s] : r^* \leq k_c-2 \}$ . If $C = \emptyset $ , then $\mathop {\mathrm {Cap}}((\phi ^*)^{-1}(c),k_c) = \{ \boldsymbol {1} \}$ for all $ c \in [s]$ . Note also that $\{ \boldsymbol {\ell } \in \mathbb {N}^{r^*} : \|\boldsymbol {\ell }\|_1 \leq k_c - 1 \} \subseteq \{ \boldsymbol {1} \}$ . So we are done in this case and may assume that $C \neq \emptyset $ .

By Part (i), for all $c \in C$ , we have $(\phi ^*)^{-1}(c) \cong K_{r^*}$ since this is the unique maximally $K_{k_c}$ -free graph on $r^*$ vertices. Define a new solution on $r^*+1$ vertices as follows. Suppose, without loss of generality, that $\alpha _{r^*} \geq \alpha _i$ for all $i \in [r^*]$ . Let

$$ \begin{align*} \phi(ij) &:= \begin{cases} \phi^*(ij) &\mbox{if } ij \in \binom{[r^*]}{2} \\ \phi^*(ir^*) &\mbox{if } i \in [r^*-1], j = r^*+1\\ C &\mbox{if } \{ i,j \} = \{ r^*,r^*+1 \} \end{cases}\\[-15pt] \end{align*} $$

and

$$ \begin{align*} \alpha_i &:= \begin{cases} \alpha^*_i &\mbox{if } i \in [r^*-1] \\ \alpha^*_{r^*}/2 &\mbox{if } i \in \{ r^*,r^*+1 \}. \end{cases}\\[-15pt] \end{align*} $$

Then $\phi ^{-1}(c)$ is $K_{k_c}$ -free for all $c \in [s]$ , so . Furthermore,

$$ \begin{align*} 0 \geq q(\phi,\boldsymbol{\alpha})-q(\phi^*,\boldsymbol{\alpha}^*) = 2\left(\frac{\alpha_{r^*}^*}{2}\right)^2 \log |C|,\\[-15pt] \end{align*} $$

and so $|C|=1$ . Let $C = \{ c^* \}$ . Then $k_{c^*}-2 \geq r^* \geq k_c -1$ for all $c \in [s] \setminus \{ c^* \}$ . That is, $c^*=1$ and $k_1> k_2$ . Suppose that $(\ell _1,\ldots ,\ell _{r^*}) \in \mathbb {N}^{r^*}$ . Since $(\phi ^*)^{-1}(1) \cong K_{r^*}$ , the graph $(\ell _1,\ldots ,\ell _{r^*})(\phi ^*)^{-1}(1)$ is a clique of order $r^* + \sum _{i \in [r^*]}(\ell _i-1) = \sum _{i \in [r^*]}\ell _i$ . Therefore, $\mathop {\mathrm {Cap}}((\phi ^*)^{-1}(1),k_1) = \{ \boldsymbol {\ell } \in \mathbb {N}^{r^*} : \|\boldsymbol {\ell }\|_1 \leq k_1-1 \}$ (note that this set contains $\boldsymbol {1}$ ). This completes the proof of (ii).

Finally, Part (iii) is an immediate consequence of Part (ii) and (2.1).

2.1 The extension property

In this section, we explore the consequences of the extension property. Recall the equality from Proposition 2.1 which is necessary for all vertices of positive weight in an optimal solution. Suppose we wish to extend an optimal solution by adding a new vertex of zero weight. The following proposition shows that the normalised contribution of this new vertex cannot be more than $Q(\boldsymbol {k})$ . Given $\phi \in \Phi _0(r+1,\boldsymbol {k})$ and $\boldsymbol {\alpha } \in \Delta ^r$ , let

$$ \begin{align*} \mathop{\mathrm{ext}}(\phi,\boldsymbol{\alpha}) := q_{r+1}(\phi,(\alpha_1,\ldots,\alpha_r,0)) = \sum_{\substack{i \in [r]\\ \phi(\{i,r+1\}) \neq \emptyset}}\alpha_i\log|\phi(\{ i,r+1 \})|, \end{align*} $$

which is the ‘normalised contribution’ of the zero-weighted vertex $r+1$ to $q(\phi ,(\alpha _1,\ldots ,\alpha _r,0))$ .

Proposition 2.6. Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ . Suppose that . Let $\phi \in \Phi (r+1,\boldsymbol {k})$ be such that $\phi |_{\binom {[r]}{2}} = \phi '$ . Then $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }) \leq Q(\boldsymbol {k})$ .

Proof. Suppose not. We will show that we can transfer a small amount of weight from $[r]$ to $r+1$ , and in so doing, increase $q(\phi ,\cdot )$ . Let $\gamma>0$ satisfy $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }) = (1+\gamma )Q(\boldsymbol {k})$ . Let $\varepsilon \in (0,2\gamma /(2\gamma +1))$ . Define $\boldsymbol {\beta } \in \mathbb {R}^{r+1}$ by setting

$$ \begin{align*}\beta_i := \begin{cases} (1-\varepsilon)\alpha_i &\mbox{if } i \in [r] \\ \varepsilon &\mbox{if } i = r+1. \end{cases} \end{align*} $$

Then $\boldsymbol {\alpha } \in \Delta ^r$ implies that $\boldsymbol {\beta } \in \Delta ^{r+1}$ . Now,

$$ \begin{align*} q(\phi,\boldsymbol{\beta}) -q(\phi,\boldsymbol{\alpha}) &= \varepsilon(\varepsilon-2) q(\phi',\boldsymbol{\alpha}) + 2(1-\varepsilon)\varepsilon \cdot \mathop{\mathrm{ext}}(\phi,\boldsymbol{\alpha}) = \varepsilon(2\gamma-\varepsilon(1+2\gamma))Q(\boldsymbol{k})> 0, \end{align*} $$

a contradiction.

This motivates the extension property, which we repeat for the reader’s convenience:

Definition 2.7 (Clones and extension property).

Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ . Given $r \in \mathbb {N}$ and $\phi \in \Phi _0(r;\boldsymbol {k})$ , we say that $i \in [r]$ is

1. • a clone of $j \in [r]\setminus \{ i \}$ (under $\phi $ ) if $\phi (ik) = \phi (jk)$ for all $k \in [r] \setminus \{ i,j\}$ and $|\phi (ij)| \leq 1$ ;

2. • a strong clone of j (under $\phi $ ) if, additionally, $\phi (ij) = \emptyset $ .

We say that $\boldsymbol {k}$ has

1. • the extension property if, for every and $\phi \in \Phi _0(r^*+1;\boldsymbol {k})$ , such that $\phi |_{\binom {[r^*]}{2}} = \phi ^*$ and $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }^*) = Q(\boldsymbol {k})$ ; there exists $j \in [r^*]$ , such that $r^*+1$ is a clone of j under $\phi $ ;

2. • the strong extension property if in fact $r^*+1$ is a strong clone of j.

The extension property says that if we extend any basic optimal solution by adding an infinitesimal part with optimal contribution $Q(\boldsymbol {k})$ , then the new vertex clones an existing one (with perhaps one colour on the pair spanned by the two clones). Assuming that $\boldsymbol {k}$ has the extension property, we can prove some properties of elements in , including a uniform lower bound for vertex weightings in $Q^*$ -optimal solutions.

Lemma 2.8. Let $s \in \mathbb {N}$ , and suppose that $\boldsymbol {k} \in \mathbb {N}^s$ has the extension property. Then there exists $\mu> 0$ , such that $\alpha _i^*> \mu $ for all and $i \in [r^*]$ .

Proof. Suppose not; then, for all $n \in \mathbb {N}$ , there exists and $i_n \in [r^*_n]$ , such that $\alpha ^*_{i_n} < 1/n$ . By passing to a subsequence, since $r^*_n < R(\boldsymbol {k})$ , we may assume that $r^*_n \equiv r$ and $\phi ^*_n \equiv \phi $ and, without loss of generality, that $i_n \equiv r$ . Since $\boldsymbol {\alpha }^*_n \in \Delta ^{r}$ and the simplex is closed and bounded, the Heine-Borel theorem implies that $\boldsymbol {\alpha }^*_1,\boldsymbol {\alpha }^*_2,\ldots $ has a convergent subsequence $\boldsymbol {\alpha }^*_{i_1},\boldsymbol {\alpha }^*_{i_2},\ldots $ , with limit $\boldsymbol {\beta } \in \Delta ^{r}$ . Observe that $\beta _{r} = 0$ . Without loss of generality, assume that $\boldsymbol {\beta } = (\beta _1,\ldots ,\beta _t,0,\ldots ,0)$ , where $t \in [r-1]$ and $\beta _j> 0$ for all $j \in [t]$ . By continuity (Proposition 2.2), $q(\phi ,(\beta _1,\ldots ,\beta _t))=q(\phi ,\boldsymbol {\beta })=Q(\boldsymbol {k})$ , so . Recall that $\alpha ^*_{i_m,r}> 0$ for all $m \in \mathbb {N}$ . By continuity and Proposition 2.1,

$$ \begin{align*}\sum_{j \in [t]}\beta_j\log|\phi(rj)| = \mathop{\mathrm{ext}}(\phi,(\beta_1,\ldots,\beta_{r-1})) = \lim_{m\to\infty}q_r(\phi,(\alpha^*_{i_m,1},\ldots,\alpha^*_{i_m,r})) = Q(\boldsymbol{k}). \end{align*} $$

The extension property implies that there exists $i \in [t]$ , such that $\phi (rj)=\phi (ij)$ for all $j \in [t] \setminus \{ i \}$ and $|\phi (ir)| \leq 1$ , a contradiction to $\phi \in \Phi _2(r;\boldsymbol {k})$ . This completes the proof of the lemma.

Next, we prove that the strong extension property implies that optimal colour patterns have trivial capacity.

Lemma 2.9. Let $s \in \mathbb {N}$ , and suppose that $\boldsymbol {k} \in \mathbb {N}^s$ with $k_1 \geq \ldots \geq k_s$ has the extension property.

1. (i) If $\boldsymbol {k}$ has the strong extension property, then for every and $c \in [s]$ , we have that $\mathop {\mathrm {Cap}}((\phi ^*)^{-1}(c),k_c) = \{ \boldsymbol {1} \}$ .

2. (ii) If $k_1=k_2$ , then $\boldsymbol {k}$ has the strong extension property.

3. (iii) If and $\phi \in \Phi _0(r^*+1;\boldsymbol {k})$ is such that $\phi |_{\binom {[r^*]}{2}}=\phi ^*$ and $r^*+1$ is a clone of $i \in [r^*]$ under $\phi $ , then $\phi (\{ i,r^*+1 \}) \subseteq \{ 1 \}$ .

Proof. For $c \in [s]$ , write $C(c):=\mathop {\mathrm {Cap}}((\phi ^*)^{-1}(c),k_c)$ as shorthand. We use the following claim to prove all three parts.

Claim 2.9.1. Let , $c \in [s]$ and $j \in [r^*]$ . Define $\boldsymbol {\alpha } \in \Delta ^{r^*+1}$ by setting $\alpha _i := \alpha ^*_i$ for all $i \in [r^*]$ and $\alpha _{r^*+1} := 0$ . Define $\phi \in \Phi _1(r^*+1;\boldsymbol {k})$ by setting $\phi |_{\binom {[r^*]}{2}} := \phi ^*$ and $\phi (\{ i,r^*+1 \}) := \phi ^*(ij)$ for all $i \in [r^*]\setminus \{ j \}$ and $\phi (\{ j,r^*+1 \}) := \{ c \}$ . Then, $\boldsymbol {1} + \boldsymbol {e}_j \in C(c)$ if and only if .

Proof of Claim.

We need to show that $\boldsymbol {1}+\boldsymbol {e}_j \in C(c)$ if and only if both and $q(\phi ,\boldsymbol {\alpha })=Q(\boldsymbol {k})$ . Firstly, we have if and only if $\phi ^{-1}(c)$ is $K_{k_c}$ -free for all $c \in [s]$ . For $c'\in [s]\setminus \{c\}$ , $\phi ^{-1}(c')$ is obtained from $(\phi ^*)^{-1}(c')$ by cloning vertex $r^*$ , so is $K_{k_{c'}}$ -free. By definition, $\phi ^{-1}(c)$ is $K_{k_c}$ -free if and only if $\boldsymbol {1} + \boldsymbol {e}_j \in C(c)$ . Secondly, $q(\phi ,\boldsymbol {\alpha })=q(\phi ^*,\boldsymbol {\alpha }^*)=Q(\boldsymbol {k})$ . This proves the claim.

For (i), suppose that $\boldsymbol {k}$ has the strong extension property but there is and $c \in [s]$ for which $C(c) \neq \{\boldsymbol {1}\}$ . Then there is $j \in [r^*]$ , such that $\boldsymbol {1}+\boldsymbol {e}_j \in C(c)$ . Let $\boldsymbol {\alpha }$ and $\phi $ be defined as in Claim 2.9.1. By the claim, . So

$$ \begin{align*}\sum_{i \in [r^*]}\alpha_i \log|\phi(\{ i,r^*+1\})| = \sum_{i \in [r^*]\setminus \{ j \}}\alpha^*_i\log|\phi^*(ij)| = Q(\boldsymbol{k}) \end{align*} $$

by Proposition 2.1 applied to $(r^*,\phi ^*,\boldsymbol {\alpha }^*)$ . But $r^*+1$ is not a strong clone of any $j' \in [r^*]$ under $\phi $ since $|\phi (\{r^*+1,j\})|=1$ (and $|\phi (\{r^*+1,i\})| = |\phi (ji)| \geq 2$ for all $i \in [r^*]\setminus \{j\}$ ). So $\boldsymbol {k}$ does not have the strong extension property, a contradiction.

Next, we prove (ii). So suppose that $\boldsymbol {k}$ does not have the strong extension property. Then there is some and an extension $\phi \in \Phi _0(r^*+1;\boldsymbol {k})$ , such that $\phi |_{\binom {[r^*]}{2}}=\phi ^*$ , $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }^*)=Q(\boldsymbol {k})$ and $r^*+1$ is a clone of some $j \in [r^*]$ under $\phi $ , but not a strong clone. So $\phi (\{i,r^*+1\})=\phi ^*(ij)$ for all $i \in [r^*]\setminus \{j\}$ , and $\phi (\{j,r^*+1\})=\{c\}$ for some $c \in [s]$ . Note that , where $\boldsymbol {\alpha }$ is defined as in the claim. Thus, by the claim, $\boldsymbol {1}+\boldsymbol {e}_j \in C(c)$ . By Lemma 2.5 (ii), this implies $c=1$ and $k_1>k_2$ . This also gives Part (iii).

2.2 The proof of Lemma 1.3

Recall that Lemma 1.3, informally speaking, enables us to characterise all solutions to Problem $Q_0$ in terms of the basic optimal solutions .

Proof of Lemma 1.3.

Note that the ‘if’ direction is trivial, so it remains to prove the ‘only if’ direction. Let . We can assume that $\alpha _i>0$ for all $i \in [r]$ .

It is convenient to consider triples $(A,\phi ,\boldsymbol {\alpha })$ which are as feasible solutions $(r,\phi ,\boldsymbol {\alpha })$ except A is a set of r vertices (as opposed to $[r]$ ), $\phi : \binom {A}{2}\to 2^{[s]}$ and $\boldsymbol {\alpha } \in \Delta ^A := \{(\alpha _i: i \in A): \alpha _i>0 \text { for all } i \in A \text { and }\sum _{i \in A}\alpha _i=1\}$ . Given $x,y \in A$ , define a new vertex weighting $\overline {\boldsymbol {\alpha }} \in \Delta ^{A\setminus \{y\}}$ , the $(x,y)$ -merging of $\boldsymbol {\alpha }$ , by setting $\overline {\alpha }_x := \alpha _x+\alpha _y$ and $\overline {\alpha }_z := \alpha _z$ for all $z \in [r] \setminus \{ x,y \}$ . Suppose $|\phi (xy)| \leq 1$ . Then where $\phi ':=\phi |_{\binom {A\setminus \{y\}}{2}}$ , and

(2.2) $$ \begin{align} q_y(\phi,\overline{\boldsymbol{\alpha}}) &= \sum_{z \in [r]\setminus \{ x,y \}}\alpha_z\log|\phi(zy)| + (\alpha_x+\alpha_y)\log|\phi(xy)| = q_y(\phi,\boldsymbol{\alpha})= Q(\boldsymbol{k}),\\[-16pt]\nonumber \end{align} $$

where the last equality follows from Proposition 2.1.

Consider the following claim.

Claim 2.1. $\{ ij \in \binom {[r]}{2} : |\phi (ij)| \leq 1\}$ is a disjoint union of cliques.

Proof of Claim.

Suppose for a contradiction to the claim that, without loss of generality, there is some $ij \in \binom {[r-1]}{2}$ , such that $|\phi (ir)|,|\phi (jr)|\leq 1$ but $|\phi (ij)| \geq 2$ . Suppose first that there exists $i'j' \in \binom {[r]}{2}\setminus \{ir,jr\}$ , such that $|\phi (i'j')| \leq 1$ . At least one of $i',j'$ is not in $\{i,j,r\}$ , say $j'$ . Take the $(i',j')$ -merging $\overline {\boldsymbol {\alpha }}$ of $\boldsymbol {\alpha }$ . By the above observations, , where $\phi ':=\phi |_{\binom {[r]\setminus \{j'\}}{2}}$ . Note that $ir,jr,ij\in \binom {[r]\setminus \{j'\}}{2}$ , and $\phi '(xy)=\phi (xy)$ for all $xy\in \binom {[r]\setminus \{j'\}}{2}$ .

Do this repeatedly until the only pairs $i'j'$ with $|\phi (i'j')| \leq 1$ among the set A of remaining vertices are $ir$ and $jr$ . Let $\boldsymbol {\beta }$ be the weight function and $\psi := \phi |_A$ the colour pattern. We have . Now obtain the $(i,r)$ -merging $\overline {\boldsymbol {\beta }}$ of $\boldsymbol {\beta }$ and let $A':=A\setminus \{r\}$ . By the above, and $\psi ,\overline {\boldsymbol {\beta }},r$ satisfy (2.2). Further, $|\psi '(xy)| = |\phi (xy)| \geq 2$ for every $xy \in \binom {A'}{2}$ and $\overline {\beta }_x>0$ for every $x \in A'$ , so in fact . Since $\boldsymbol {k}$ has the extension property, there exists $y \in A'$ , such that $\psi '(r\ell ) = \psi '(y\ell )$ for all $\ell \in A'$ , and $|\psi '(yr)|\leq 1$ . In particular, $|\psi '(rj)| = |\psi '(yj)| \geq 2$ , a contradiction to our assumption.

Proposition 2.1 implies that, for every $i \in [r]$ , we have that $q_i(\phi ,\boldsymbol {\alpha }) = Q(\boldsymbol {k})$ . By the claim, there is a (unique up to relabelling) partition $[r] = V_1 \cup \ldots \cup V_{r^*}$ , such that

(2.3) $$ \begin{align} \left\{ ij \in \binom{[r]}{2} : |\phi(ij)| \leq 1 \right\} = \bigcup_{j \in [r^*]}\binom{V_j}{2}\\[-16pt]\nonumber \end{align} $$

(where a vertex $i'$ is the only member of some $V_{i}$ if and only if $|\phi (i'j)| \geq 2$ for all $j \in [r]\setminus \{ i' \}$ ). Assume, without loss of generality, that $i \in V_i$ for all $i \in [r^*]$ . Let $\boldsymbol {\alpha }^* \in \Delta ^{r^*}$ , such that $\alpha ^*_i = \sum _{i' \in V_i}\alpha _{i'}$ , and set $\phi ^* := \phi |_{\binom {[r^*]}{2}}$ .

Claim 2.2. We have the following:

1. (a) .

2. (b) For all $i \in [r^*]$ and $i' \in V_i$ , we have that $\phi (i'j) = \phi (ij)$ for all $j \in [r^*]\setminus \{ i \}$ .

Proof of Claim.

Let

$$ \begin{align*}K := \bigcup_{j \in [r^*]}\{ (j,j') : j' \in V_j\setminus\{j\} \}\\[-15pt] \end{align*} $$

and $t := |K|$ . So K is a union of spanning stars in the $V_j$ ’s. We will form a new solution by transferring the total weight from $V_j$ to j.

Let $\boldsymbol {\alpha }_0 := \boldsymbol {\alpha }$ , $\phi _0 := \phi $ and $A_0 := [r]$ . Order the elements $(j_1,x_1), \ldots , (j_t,x_{t})$ of K, and, for each $\ell \geq 1$ , let $\boldsymbol {\alpha }_{\ell }$ be the $(j_{\ell },x_{\ell })$ -merging of $\boldsymbol {\alpha }_{\ell -1}$ and $A_{\ell } := A_{\ell -1}\setminus \{x_{\ell }\}$ and $\phi _{\ell } := \phi |_{\binom {A_{\ell }}{2}}$ . Precisely as in (2.2), we have that , and

(2.4) $$ \begin{align} \sum_{k \in \binom{A_{\ell}}{2}}\alpha_{\ell,k}\log|\phi(x_{\ell} k)| = Q(\boldsymbol{k}).\\[-15pt]\nonumber \end{align} $$

By construction, $A_t=[r^*]$ and $\alpha _{t,i}> 0$ for all $i \in [r^*]$ . Let $\boldsymbol {\alpha }^* := (\alpha _{t,1},\ldots ,\alpha _{t,r^*})$ and $\phi ' := \phi _t|_{\binom {[r^*]}{2}} = \phi |_{\binom {[r^*]}{2}}$ . Then . Moreover, by (2.4), we have that $ \sum _{i \in [r^*]}\alpha ^*_i\log |\phi (\{ i,r^*+j \})|= Q(\boldsymbol {k}) $ for all $j \in [r-r^*]$ , and $ \alpha ^*_i = \sum _{i' \in V_i}\alpha _{i'} $ . So $\boldsymbol {\alpha }^*$ and $\phi ^*$ satisfy (a).

It remains to prove (b). For each $i' \in \{ r^*+1,\ldots ,r \}$ , let $i \in [r^*]$ be such that $i' \in V_i$ . Apply the extension property to $(r^*,\phi ^*,\boldsymbol {\alpha }^*)$ with $i'$ playing the role of the additional vertex, whose colour pattern is given by $\phi $ . So there is some $x_{i'} \in [r^*]$ which is a clone of $i'$ under $\phi $ in $[r^*]$ . But, by the definition of $V_i$ , $|\phi (\{ k,i' \})| \leq 1$ if and only if $k \in V_i$ . But there is a unique member of $V_{i}$ which lies in $[r^*]$ , namely, i. Certainly i is a clone of itself. So for all $i \in [r^*]$ and $i' \in [r]\cap V_i$ , we have that $i'$ is a clone of vertex i under $\phi $ in $[r^*]$ . So (b) holds, completing the proof of the claim.

So Part (i) of Lemma 1.3 holds by (2.3) and Claim 2.2 (a). For (ii), we need to prove that $\phi (i'j') = \phi (ij)$ for all $i' \in V_i$ and $j' \in V_j$ , whenever $i \neq j$ . Suppose that there is some $c \in \phi (i'j') \setminus \phi (ij)$ . Thus, $c \notin \phi (ij)=\phi ^*(ij)$ , and by Lemma 2.5 (i), $(\phi ^*)^{-1}(c)$ is maximally $K_{k_c}$ -free, so there are vertices $\{ x_1,\ldots ,x_{k_c-2} \} \in [r^*]\setminus \{ i,j \}$ which, together with $i,j$ , span a copy of $K_{k_c}$ in $(\phi ^*)^{-1}(c)$ . But Claim 2.2 (b) implies that, for all $\ell \in [k_c-2]$ , we have $c \in \phi ^*(ix_{\ell }) = \phi (i'x_{\ell })$ and $c \in \phi ^*(jx_{\ell }) = \phi (j'x_{\ell })$ . Therefore, $x_1,\ldots ,x_{k_c-2},i',j'$ span a copy of $K_{k_c}$ in $\phi ^{-1}(c)$ , a contradiction. So $\phi (i'j') \subseteq \phi (ij)$ . Using Proposition 2.1 and the fact that $|\phi (i'i")| \leq 1$ for all $i" \in V_i$ , we have that

$$ \begin{align*} Q(\boldsymbol{k}) &= q_{i'}(\phi,\boldsymbol{\alpha}) = \sum_{j \in [r^*]\setminus \{ i \}}\sum_{j' \in V_j}\alpha_{j'}\log|\phi(i'j')| \leq \sum_{j \in [r^*]\setminus \{ i \}}\sum_{j' \in V_j}\alpha_{j'}\log|\phi(ij)|\\ &= q_i(\phi^*,\boldsymbol{\alpha}^*) = Q(\boldsymbol{k}).\\[-15pt] \end{align*} $$

Therefore, we have equality everywhere, and so $\phi (i'j') = \phi (ij) = \phi ^*(ij)$ for all $ij \in \binom {[r^*]}{2}$ and $i' \in V_i$ , $j' \in V_j$ . This completes the proof of (ii).

For (iii), let $c \in [s]$ , $i \in [r^*]$ and $i'i" \in \binom {V_i}{2}$ with $c \in \phi (i'i")$ . Then $\boldsymbol {1} + \boldsymbol {e}_i \in \mathop {\mathrm {Cap}}((\phi ^*)^{-1}(c),k_c)$ . Lemma 2.5 (ii) implies that $c = 1$ and $k_1>k_2$ . Now, for each $i \in [r^*]$ , let $\ell _i$ be the size of the largest clique in $\phi ^{-1}(1)[V_i]$ . By definition, $\boldsymbol {\ell } := (\ell _1,\ldots ,\ell _{r^*}) \in \mathop {\mathrm {Cap}}((\phi ^*)^{-1}(1),k_1)$ , and so $\|\boldsymbol {\ell }\|_1 \leq k_1-1$ by Lemma 2.5 (ii). This complete the proof of (iii) and hence of the lemma.

2.3 Nonoptimal attachments

We derive a further quantifiable consequence of the extension property in the following lemma, which shows that if a basic optimal solution is extended by an infinitesimal part, if it is not a clone of an existing vertex, then the deficit of its contribution is bounded away from zero.

Lemma 2.10. Let $s \in \mathbb {N}$ , and let $\boldsymbol {k} \in \mathbb {N}^s$ have the extension property. Then there exists $\eta> 0$ , such that the following holds. Let and $\phi \in \Phi _0(r^*+1,\boldsymbol {k})$ , such that $\phi |_{\binom {[r^*]}{2}}=\phi ^*$ and $r^*+1$ is not a clone of any $i \in [r^*]$ under $\phi $ . Then $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }^*) \leq Q(\boldsymbol {k}) - \eta $ .

Proof. Suppose that the statement of the lemma does not hold. Then for all $n \in \mathbb {N}$ , there exist and $\phi _n \in \Phi _0(r^*_n+1,\boldsymbol {k})$ , such that $\phi _n|_{\binom {[r^*_n]}{2}} = \phi ^*_n$ and $r^*_n+1$ is not a clone of any $i \in [r^*_n]$ under $\phi _n$ , but $ \mathop {\mathrm {ext}}(\phi _n,\boldsymbol {\alpha }_n^*)> Q(\boldsymbol {k}) - \frac {1}{n} $ . By passing to a subsequence (since $r_n^*<R(\boldsymbol {k})$ ), we may assume that $r^*_n \equiv r$ ; $\phi ^*_n \equiv \phi ^*$ and $\phi _n \equiv \phi $ , so

(2.5) $$ \begin{align} \mathop{\mathrm{ext}}(\phi,\boldsymbol{\alpha}^*_n)> Q(\boldsymbol{k})-\frac{1}{n} \end{align} $$

and $r+1$ is not a clone of any $i \in [r]$ under $\phi $ . Since $\Delta ^{r}$ is compact, we may choose a convergent subsequence $\boldsymbol {\alpha }^*_{i_1},\boldsymbol {\alpha }^*_{i_2},\ldots $ of $\boldsymbol {\alpha }^*_1,\boldsymbol {\alpha }^*_2,\ldots $ , with limit $\boldsymbol {\beta }$ . Now, since $q(\phi ^*,\cdot )$ is continuous (by Proposition 2.2),

$$ \begin{align*}q(\phi^*,\boldsymbol{\beta}) = \lim_{n \rightarrow \infty}q(\phi^*,\boldsymbol{\alpha}^*_{i_n}) = Q(\boldsymbol{k}), \end{align*} $$

and Lemma 2.8 implies that $\beta _j =\lim _{n \rightarrow \infty }\alpha _{i_n,j}^*>0$ for every $j \in [r]$ . So . But taking the limit in (2.5) implies that $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\beta }) = Q(\boldsymbol {k})$ . Now the extension property implies that there is some $i \in [r]$ , such that $r+1$ is a clone of i under $\phi $ , a contradiction.

Given colour patterns $\psi \in \Phi _0(r;\boldsymbol {k})$ and $\psi ' \in \Phi _0(r';\boldsymbol {k})$ and a partition $\mathcal {V}=\{V_1,\ldots ,V_r\}$ of $[r']$ , we will say $\psi ' =_{\mathcal {V}} \psi $ if $\psi '(i'j')=\psi (ij)$ for all $ij \in \binom {[r]}{2}$ , $i' \in V_i$ and $j' \in V_j$ , and $\psi (i'i")=\emptyset $ for all $i \in [r]$ and $i'i" \in \binom {V_i}{2}$ . Similarly, given $\boldsymbol {\alpha } \in \Delta ^r$ and $\boldsymbol {\alpha }' \in \Delta ^{r'}$ and a partition $\mathcal {V}=\{V_1,\ldots ,V_r\}$ of $[r']$ , we will say $\boldsymbol {\alpha }' =_{\mathcal {V}} \boldsymbol {\alpha }$ if $\sum _{j \in V_i}\alpha _j' = \alpha _i$ for all $i \in [r]$ .

Let , let $r \in \mathbb {N}$ and let $[r]$ have partition $\mathcal {V}=\{V_1,\ldots ,V_{r^*}\}$ . Let $\phi \in \Phi _0(r+1;\boldsymbol {k})$ be such that $\phi |_{\binom {[r]}{2}}=_{\mathcal {V}} \phi ^*$ and $\boldsymbol {\alpha } =_{\mathcal {V}} \boldsymbol {\alpha }^*$ . For $i \in [r^*]$ , let

$$ \begin{align*}d_i := \sum\{\alpha_{j'} : \phi(\{r+1,j'\}) \neq \phi^*(ij), j' \in V_j, j \in [r^*]\setminus\{i\}\}+\sum\{\alpha_{i'}: |\phi(\{r+1,i'\})| \geq 2, i' \in V_i\} \end{align*} $$

be the minimum weight of edits of pairs at $r+1$ needed to make $r+1$ a clone of i. If $d_i \leq \delta $ , we say that $r+1$ is $\delta $ -close to being a $\phi ^*$ -clone of i, otherwise, $r+1$ is $\delta $ -far from being a $\phi ^*$ -clone of i.

The next lemma extends the previous one by allowing an arbitrary feasible attachment to a (blow-up of a) basic optimal solution and supposing the new part is far from being a clone.

Lemma 2.11. Let $s \in \mathbb {N}$ , and let $\boldsymbol {k}$ have the extension property. Then there exists $\eta>0$ , such that the following holds. Let $\delta>0$ and , let $r \in \mathbb {N}$ and let $[r]$ have partition $\mathcal {V}=\{V_1,\ldots ,V_{r^*}\}$ . Let $\phi \in \Phi _0(r+1;\boldsymbol {k})$ and $\boldsymbol {\alpha } \in \Delta ^r$ be such that $\phi |_{\binom {[r]}{2}}=_{\mathcal {V}} \phi ^*$ and $\boldsymbol {\alpha } =_{\mathcal {V}} \boldsymbol {\beta }$ for some $\boldsymbol {\beta } \in \Delta ^{r^*}$ with $\|\boldsymbol {\beta } - \boldsymbol {\alpha }^*\|_1 \leq \eta \delta $ . Suppose that $r+1$ is $\delta $ -far from being a $\phi ^*$ -clone of any $i \in [r^*]$ . Then $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }) \leq Q(\boldsymbol {k})-\eta \delta $ .

Proof. We will derive the lemma from the following claim.

Claim 2.11.1. There exists $\eta>0$ , such that when additionally $\boldsymbol {\beta }=\boldsymbol {\alpha }^*$ , we have $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }) \leq Q(\boldsymbol {k})-2\eta \delta \log s$ .

Suppose that the claim holds and we wish to prove the lemma. Let $\boldsymbol {\alpha }' \in \Delta ^{r^*}$ be such that $\boldsymbol {\alpha }' =_{\mathcal {V}} \boldsymbol {\alpha }^*$ and $\|\boldsymbol {\alpha }-\boldsymbol {\alpha }'\|_1 \leq \eta \delta $ . Such an $\boldsymbol {\alpha }'$ exists: for example, for all $j \in [r^*]$ and all $i \in V_j$ , take $\alpha ^{\prime }_i := \alpha_i\alpha_j^*/\beta_j$ . Since $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }') \leq Q(\boldsymbol {k})-2\eta \delta \log s$ , we have

$$ \begin{align*}\mathop{\mathrm{ext}}(\phi,\boldsymbol{\alpha}) \leq \mathop{\mathrm{ext}}(\phi,\boldsymbol{\alpha}') + \log s\cdot \|\boldsymbol{\alpha}-\boldsymbol{\alpha}'\|_1 \leq Q(\boldsymbol{k})- \eta\delta, \end{align*} $$

as required. So it remains to prove the claim.

Proof of Claim.

Let $\eta '>0$ be the constant obtained from Lemma 2.10. We will show that we can take $\eta := \eta '/(2\log s)$ .

It will be convenient to write $0$ instead of $r+1$ for the attachment. So we require an upper bound for $q_0(\phi ,\boldsymbol {\alpha })$ . Let $1/n \ll 1/r,\delta ,\eta '$ , and for each $j \in [r^*]$ , subdivide the parts in each $V_j$ to get a total of n subparts, so that as many of these subparts as possible have the same size. We may assume that in fact every subpart of parts in $V_j$ have the same size $\alpha ^*_j/n$ , since the total size of smaller parts is at most $r/n$ which is negligible compared to $\eta '$ and $\delta $ . So, relabelling, we have a partition $\mathcal {U} := \{U_1,\ldots ,U_r\}$ of $[r^*n]$ and $\boldsymbol {\alpha }_n \in \Delta ^{r^*n}$ , such that $\boldsymbol {\alpha }_{n,k} = \alpha _j^*/n$ for every $k \in \mathcal {U}_j := \{U_{j'} : j' \in V_j\}$ , and $|\mathcal {U}_j|=n$ . Write $\mathcal {U}_j := \{x_{j,1},\ldots ,x_{j,n}\}$ .

For all $\ell \in [n]$ , let $T_{\ell } := \{x_{1,\ell },\ldots ,x_{r^*,\ell }\}$ be the $\ell $ -th transversal, and let $\phi _{\ell } := \phi |_{\{0\} \cup T_{\ell }}$ . Recall that $\phi |_{T_{\ell }} = \phi ^*$ . For each $j \in [r^*]$ , let $C_j$ be the set of all $\ell \in [n]$ , such that $0$ is a clone of j under $\phi _{\ell }$ . So $C := C_1\cup \ldots \cup C_{r^*}$ is a disjoint union. By rearranging the transversals, we are going to make all sets $C_j$ empty except at most one. For this, partition C into pairs $\{\ell _1,\ell _2\}$ and a set $C_{0}$ , such that in every pair $\{\ell _1,\ell _2\}$ , we have $\ell _1 \in C_{j_1}$ and $\ell _2 \in C_{j_2}$ for distinct $j_1,j_2 \in [r^*]$ , and there is at most one $j \in [r^*]$ , such that $C_0 \cap C_j \neq \emptyset $ . For all pairs $\{\ell _1,\ell _2\}$ , swap the labels of $x_{j_1,\ell _1}$ and $x_{j_1,\ell _2}$ . Update C. Notice that now, C is our previous $C_0$ , as neither $\ell _1$ nor $\ell _2$ gives a transversal where $0$ is a clone (since $\phi _{\ell _1}$ has size two on every pair in $\{0\} \cup T_{\ell _1}$ , and $\phi _{\ell _2}$ has size at most $1$ on exactly two pairs in $\{0\} \cup T_{\ell _2}$ ).

Let $\Phi $ be the set of all $\phi _{\ell }$ . Let $\Phi _{\mathrm {clone}} \subseteq \Phi $ be such that $\phi _{\ell } \in \Phi _{\mathrm {clone}}$ if and only if $0$ is a clone under $\phi_\ell$ of some $j \in [r^*]$ . By construction, every such $\ell $ lies in C and there is a unique such $j=j^* \in [r^*]$ .

We can make edits of weight at most $1-|C|/n$ to make $0$ a clone of $j^*$ under $\phi $ . Indeed, we can edit each $\phi _{\ell }$ with $\ell \in [n]\setminus C$ , requiring edits to parts of size $\alpha^*_1/n,\ldots,\alpha^*_{r^*}/n$ of total size $1/n$ . Thus, our hypothesis implies that

$$ \begin{align*}1-|C|/n \geq \delta. \end{align*} $$

Lemma 2.10 implies that $q_0(\psi ,\boldsymbol {\alpha }^*) \leq Q(\boldsymbol {k}) - \eta '$ whenever $\psi \in \Phi \setminus \Phi _{\mathrm {clone}}$ . Therefore, using Proposition 2.6,

$$ \begin{align*} q_0(\phi,\boldsymbol{\alpha}) &= \sum_{\ell \in [n]}q_0(\phi_{\ell},\boldsymbol{\alpha}_n) = \sum_{\ell \in C}q_0(\phi_{\ell},\boldsymbol{\alpha}^*)/n + \sum_{\ell \in [n]\setminus C}q_0(\phi_{\ell},\boldsymbol{\alpha}^*)/n\\ &\leq |C|Q(\boldsymbol{k})/n + (n-|C|)((Q(\boldsymbol{k})-\eta')/n = Q(\boldsymbol{k})-(1-|C|/n)\eta' \leq Q(\boldsymbol{k})-\eta'\delta, \end{align*} $$

as required.

This completes the proof of the lemma.

The final lemma in this subsection considers an arbitrary not necessarily feasible attachment. Now, either the new part is far from being a clone, or it lies in many forbidden monochromatic cliques. This is the key tool in the proof of Lemma 3.1.

Lemma 2.12. Let $s \in \mathbb {N}$ , and let $\boldsymbol {k}=(k_1,\ldots ,k_s)$ have the extension property, where $k_1 \geq \ldots \geq k_s$ . There exists $\eta>0$ , such that the following hold. Let $\delta>0$ , and let , let $r \in \mathbb {N}$ , and let $[r]$ have partition $\mathcal {V}=\{V_1,\ldots, V_{r^*}\}$ . Let $\phi : \binom {[r+1]}{2} \to 2^{[s]}$ and $\boldsymbol {\alpha } \in \Delta ^r$ be such that $\phi |_{\binom {[r]}{2}}=_{\mathcal {V}} \phi ^*$ and $\boldsymbol {\alpha } =_{\mathcal {V}} \boldsymbol {\beta }$ for some $\boldsymbol {\beta } \in \Delta ^{r^*}$ with $\|\boldsymbol {\beta }- \boldsymbol {\alpha }^*\|_1 \leq \eta \delta $ , and $\mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }) \geq Q(\boldsymbol {k})-\eta \delta $ . Then one of the following hold.

1. • There exists $\ell \in [r]$ , such that $r+1$ is $\delta $ -close to a $\phi ^*$ -clone of $\ell $ .

2. • Let L be the set of sets $\{x_1,\ldots ,x_{k_1-1}\} \in \binom {[r]}{k_1-1}$ , such that $\phi ^{-1}(c)[\{r+1,x_1,\ldots ,x_{k_1-1}\}] \supseteq K_{k_c}$ for some $c \in [s]$ . Then $\sum _{(x_1,\ldots ,x_{k_1-1}) \in L}\alpha _{x_1}\ldots \alpha _{x_{k_1-1}} \geq \eta $ .

Proof. Let $\eta '>0$ be the constant obtained from Lemma 2.11. Suppose for a contradiction that for all $n \in \mathbb {N}$ , there exist , $r_n$ , $\mathcal {V}_n$ , $\phi _n : \binom {[r_n+1]}{2} \to 2^{[s]}$ , $\boldsymbol {\beta }_n$ , such that $\boldsymbol {\alpha }_n =_{\mathcal {V}_n} \boldsymbol {\beta }_n$ and $\|\boldsymbol {\beta }_n-\boldsymbol {\alpha }^*_n\|_1 \leq \eta '\delta /2$ , $\phi _n |_{\binom {[r_n]}{2}} =_{\mathcal {V}_n} \phi ^*_n$ , $\mathop {\mathrm {ext}}(\phi _n,\boldsymbol {\alpha }_n) \geq Q(\boldsymbol {k})-\eta '\delta /2$ , $r_n+1$ is $\delta $ -far from being a clone of any $\ell \in [r_n]$ under $\phi _n$ , and defining the set of tuples $L_n$ as in the statement of the lemma, we have $\sum _{(x_1,\ldots ,x_{k_1-1}) \in L_n}\alpha _{n,x_1}\ldots \alpha _{n,x_{k_1-1}} < \frac {1}{n}$ . Note that we may assume that $r_n \leq 2^{s r_n^*}$ as $r_n+1$ has at most $2^s$ different attachments to parts in each $V_{n,i}$ in $\mathcal {V}_n$ , so if $|V_{n,i}|> 2^{s r_n^*}$ , at least two of its parts are clones under $\phi ^*_n$ , and we can merge them. As usual, we may assume that $r_n^*=r^*$ and $\phi ^*_n=\phi ^*$ , and thus also $r_n=p$ , $\phi _n=\psi $ and $\mathcal {V}_n = \mathcal {V}$ . Choose a convergent subsequence $\boldsymbol {\alpha }^*_{i_1},\boldsymbol {\alpha }^*_{i_2},\ldots $ of $\boldsymbol {\alpha }^*_1,\boldsymbol {\alpha }^*_2,\ldots $ with limit $\boldsymbol {\beta }^*$ , and a convergent subsequence $\boldsymbol {\alpha }_{i_{j_1}},\boldsymbol {\alpha }_{i_{j_2}},\ldots $ of $\boldsymbol {\alpha }_{i_1},\boldsymbol {\alpha }_{i_2},\ldots $ with limit $\boldsymbol {\beta }$ . The function $\mathop {\mathrm {ext}}(\psi ,\cdot )$ is continuous, so $\mathop {\mathrm {ext}}(\psi ,\boldsymbol {\beta }) \geq Q(\boldsymbol {k})-\eta '\delta /2$ . Also, writing $\boldsymbol {\beta }_{\mathcal {V}}$ to be such that $\boldsymbol {\beta } =_{\mathcal {V}} \boldsymbol {\beta }_{\mathcal {V}}$ , we have $\|\boldsymbol {\beta }_{\mathcal {V}}-\boldsymbol {\beta }^*\|_1 \leq \eta '\delta /2$ . Let $L_c$ be the set of sets $(x_1,\ldots ,x_{k_1-1}) \in \binom {[p]}{k_1-1}$ , such that $\psi ^{-1}(c)[\{p+1,x_1,\ldots ,x_{k_1-1}\}] \supseteq K_{k_c}$ . Note that by our assumption above, $L_c$ does not change with n. We have $\sum _{(x_1,\ldots ,x_{k_1-1}) \in L_c}\beta _{x_1}\ldots \beta _{x_{k_1-1}} = 0$ . Thus, the density of $K_{k_c}$ containing $p+1$ is $0$ , and we can remove parts of size $0$ from $[p]$ to obtain a set (without loss of generality $[p']$ ), such that $\psi ^{-1}(c)[\{p+1\} \cup [p']]$ is $K_{k_c}$ -free for all $c \in [s]$ . Thus $\psi \in \Phi _0(\{p+1\} \cup [p'];\boldsymbol {k})$ , that is the attachment of $p+1$ under $\psi $ is feasible. Lemma 2.11 implies that $\mathop {\mathrm {ext}}(\psi ,\boldsymbol {\beta }) \leq Q(\boldsymbol {k})-\eta '\delta $ , a contradiction.

Thus, there exists $N \in \mathbb {N}$ , such that the required sum of tuples is always at least $1/N$ . We can now take $\eta $ to be the minimum of $\eta '/2$ and $1/N$ .

3 Stability of optimal solutions

The aim of this section is to prove the following lemma, which forms the core of our proof of Theorem 1.4. Roughly speaking, it says that Problem $Q_0$ is stable, in the sense that both the vertex-weighting and the colour pattern of an almost $Q_0$ -optimal solution are close to that of a $Q_0$ -optimal solution (which can in turn be described in terms of a $Q_2$ -optimal solution by Lemma 1.3). To prove Theorem 1.4, we will later ‘transfer’ this result to an almost optimal graph G.

Lemma 3.1 (Stability of optimal solutions).

Let $s \in \mathbb {N}$ , and let $\boldsymbol {k}=(k_1,\ldots ,k_s) \in \mathbb {N}^s$ have the extension property, where $k_1 \geq \ldots \geq k_s$ . Let $\nu>0$ . Then there exists $\varepsilon>0$ , such that for every with

$$ \begin{align*}q(\phi,\boldsymbol{\alpha})> Q(\boldsymbol{k}) - 2\varepsilon, \end{align*} $$

there is and a partition $[r]=Y_0 \cup \ldots \cup Y_{r^*}$ , such that, defining $\beta _i := \sum _{i' \in Y_i}\alpha _{i'}$ for all $i \in [r^*]$ , the following holds.

1. (i) $\|\boldsymbol {\beta }-\boldsymbol {\alpha }^*\|_1 < \nu $ (and, in particular, $\sum _{i' \in Y_0}\alpha _{i'} < \nu $ ).

2. (ii) For all $ij \in \binom {[r^*]}{2}$ , $j' \in Y_j$ and $i' \in Y_i$ , we have $\phi (i'j') \subseteq \phi ^*(ij)$ .

3. (iii) For all $i \in [r^*]$ and every $i'j' \in \binom {Y_{i}}{2}$ , we have $\phi (i'j') \subseteq \{ 1 \}$ .

Note that the density of pairs (that is, the sum of the $\alpha _i\alpha _j$ ) where the inclusion $\phi (i'j') \subseteq \phi ^*(ij)$ in (ii) is strict is $O(\nu )$ .

Proof. We will apply a version of symmetrisation to the graph $([r],E)$ , where E is the set of pairs $ij$ on which $\phi $ has size at least two. That is, at each step, we will consider two vertices $j,j'$ with $|\phi (jj')| \leq 1$ and replace one of them with a clone of the other, where the cloned vertex is the one which contributes the most to q. In the first part of the proof, we will perform this ‘forwards symmetrisation’.

Let $\mu $ be the output of Lemma 2.8 applied to $\boldsymbol {k}$ , so $\alpha _j^*> \mu $ for all and $j \in [r^*]$ . Choose additional constants $\varepsilon ,\gamma ,\eta ,\delta $ , such that $ \varepsilon \ll \gamma \ll \eta \ll \delta \ll \mu ,\nu $ where $\sqrt{\delta} $ is at most the output of Lemma 2.9, $\eta $ is at most the output of Lemma 2.12, and $\varepsilon^{1/4}$ is at most the output of Lemma 2.3 with $\gamma$ playing the role of $\delta$ .

Now let satisfy $q(\phi ,\boldsymbol {\alpha })>Q(\boldsymbol {k})-2\varepsilon $ . Add all i with $\alpha _i=0$ to $Y_0$ . We can take $\tau \ll \varepsilon , \min _{i \in [r]}\alpha _i \leq 1/r$ so that, subdividing each part, we can remove subparts of total size at most $r\tau $ so that every other subpart has size exactly $\tau $ . Since we can put the removed parts into $Y_0$ , we may assume, without loss of generality, that all $\alpha _i$ are equal to each other (and $\phi $ takes the value $\emptyset $ between parts obtained from subdividing a single original part). So we may assume that $\alpha _i = 1/r \ll \varepsilon $ for all $i \in [r]$ . Altogether, we have

$$ \begin{align*} \alpha_1=\ldots = \alpha_r = 1/r \ll \varepsilon \ll \gamma \ll \eta \ll \delta \ll \mu,\nu.\\[-15pt] \end{align*} $$

3.1 The forwards symmetrisation procedure

Let $\mathcal {X}_0 := \{\{1\},\ldots ,\{r\}\}$ and $\phi _0 := \phi $ .

Claim 3.1.1. There is $f \in \mathbb {N}$ , such that, after relabelling $[r]$ , for all $i=0,\ldots ,f$ , there is a partition $\mathcal {X}_i$ of $[r]$ and colour pattern $\phi _i \in \Phi _0(r;\boldsymbol {k})$ , such that the following hold.

1. (i) There is a single $x_{i} \in [r]$ , such that $\mathcal {X}_{i}$ consists of the same elements as $\mathcal {X}_{i-1}$ , except that $x_i$ has moved from one part to another.

2. (ii) $\phi _i =_{\mathcal {X}_{i}} \psi _i$ where $\psi _i = \phi |_{\binom {[r_i]}{2}}$ , and $\psi _f \in \Phi _2(r_f;\boldsymbol {k})$ for some $2 \leq r_f \leq \ldots \leq r_0 = r$ .

3. (iii) $q(\phi _{i},\boldsymbol {\alpha }) - q(\phi _{i-1},\boldsymbol {\alpha }) \geq 0$ (where $\phi_{-1} := \phi_0$ ).

Proof of Claim.

Let $W_0 := [r]$ , $\phi _0 = \psi _0 := \phi $ , and let $V_{0,x} := X_{0,x} := \{ x \}$ for all $x \in [r]$ . Let $\mathcal {V}_0 := \{\{x\}: x \in [r]\}$ and $\boldsymbol {\beta }_0 := \boldsymbol {\alpha }$ . Initialise $i_1:=0$ .

Inductively for $j \geq 0$ , perform forwards superstep $j+1$ by defining $W_{j+1}$ , $\psi _{j+1}$ , $\mathcal {V}_{j+1} := \{V_{j+1,x} : x \in W_{j+1}\}$ , $\boldsymbol {\beta }_{j+1}$ as follows. Choose a pair $p_jt_j \in \binom {W_j}{2}$ with $|\psi _j(p_jt_j)| \leq 1$ , labelled so that $t_j$ has larger attachment under $\phi _j$ ; that is

(3.1) $$ \begin{align} \sum_{\substack{yt_j \in \binom{W_j}{2}:\\ \psi_j(yt_j) \neq \emptyset}}\beta_{j,y}\log|\psi_j(yt_j)| \geq \sum_{\substack{yp_j \in \binom{W_j}{2}:\\ \psi_j(yp_j) \neq \emptyset}}\beta_{j,y}\log|\psi_j(yp_j)|.\\[-15pt]\nonumber \end{align} $$

If there is no such pair, terminate the iteration. Otherwise, let $W_{j+1} := W_j \setminus \{ p_j \}$ . Obtain $\mathcal {V}_{j+1}$ from $\mathcal {V}_j$ by replacing $V_{j,p_j},V_{j,t_j}$ with their union, so $V_{j+1,t_j} := V_{j,t_j} \cup V_{j,p_j}$ and $V_{j+1,x} := V_{j,x}$ for all $x \in W_{j+1}\setminus \{t_j\}$ . For all $x \in W_{j+1}$ , let $\beta _{j+1,x} := |V_{j+1,x}|/r$ . Let $\psi _{j+1} := \psi _j|_{\binom {W_{j+1}}{2}}$ . Note that

(3.2) $$ \begin{align} \nonumber &\phantom{=} \sum_{\substack{xy \in \binom{W_{j+1}}{2}:\\ \psi_{j+1}(xy) \neq \emptyset}}\beta_{j+1,x}\beta_{j+1,y}\log|\psi_{j+1}(xy)| - \sum_{\substack{xy \in \binom{W_j}{2}:\\ \psi_j(xy) \neq \emptyset}}\beta_{j,x}\beta_{j,y}\log|\psi_{j}(xy)|\\ &= \beta_{j,p_j} \left( \sum_{\substack{yt_j \in \binom{W_j}{2}:\\ \psi_j(yt_j) \neq \emptyset}}\beta_{j,y}\log|\psi_j(yt_j)| - \sum_{\substack{yp_j \in \binom{W_j}{2}:\\ \psi_j(yp_j) \neq \emptyset}}\beta_{j,y}\log|\psi_j(yp_j)| \right) \stackrel{(3.1)}{\geq} 0.\\[-15pt]\nonumber \end{align} $$

Now we will symmetrise each part in $V_{j,p_j}$ one by one, defining $\phi _{i+1} : \binom {[r]}{2} \to 2^{[s]}$ for $i_j \leq i < i_{j+1}$ where $i_{j+1} := i_j+|V_{j,p_j}|$ . Let $y^* \in V_{j,t_j}$ be arbitrary. Let $s_{j+1} := |V_{j,p_j}|$ , and write $V_{j,p_j} := \{v_1,\ldots ,v_{s_{j+1}}\}$ . We will perform $s_{j+1}$ forwards steps, as follows. Inductively for $i \geq i_j$ , obtain $\mathcal {X}_{i+1}$ from $\mathcal {X}_{i}$ by moving $v_i$ from $X_{i,p_j}$ to $X_{i,t_j}$ . That is, for $i_j \leq i < i_{j+1}-1$ , let $X_{i+1,t_j} := X_{i,t_j} \cup \{v_i\}$ , $X_{i+1,p_j} := X_{i,p_j}\setminus \{v_i\}$ and $X_{i+1,x} := X_{i,x}$ for all $x \in W_{j+1}\setminus \{t_j\}$ ; if $i=i_{j+1}-1$ , we do the same but instead discard the (empty) $p_j$ -th part, so $|\mathcal {X}_{i+1}|=|W_j|$ for $i_j \leq i < i_{j+1}$ , while $|\mathcal {X}_{i_{j+1}}|=|W_{j+1}|$ . Let $v_i$ become a strong clone of $y^*$ in $\phi _{i+1}$ ; that is, for distinct $x,y \in [r]$ , define

$$ \begin{align*}\phi_{i+1}(xy) := \begin{cases} \phi_{i}(xy) &\mbox{if } x,y \neq v_i \\\phi_i(y^*z) &\mbox{if } \{x,y\}=\{v_i,z\} \text{ and } z \neq y^*\\\emptyset &\mbox{if } \{x,y\}=\{v_i,y^*\}. \end{cases}\\[-15pt] \end{align*} $$

After defining $\phi _{i+1}$ and $\mathcal {X}_{i+1}$ for all $i_j \leq i < i_{j+1}$ , we proceed with superstep $j+2$ .

The iteration will run until some forwards step $i=f$ (for final) when $|\phi _f(xy)| \geq 2$ for all $x,y$ in different parts of $\mathcal {X}_f$ . The process terminates in a finite number of steps since $|W_j|$ is strictly decreasing (so there are finitely many supersteps j), and there are finitely many steps $s_j$ at each superstep j.

Let $r_i := |\mathcal {X}_i|$ . By relabelling the elements of $[r]$ , for all supersteps j, we can assume that $W_j$ is always an initial segment of $[r]$ so we have $\psi _j = \phi |_{\binom {[|W_j|]}{2}}$ . Let $\boldsymbol {\alpha }_i := (\alpha _{i,1},\ldots ,\alpha _{i,r_i}) := (|X_{i,1}|/r,\ldots ,|X_{i,r_i}|/r) \in \Delta ^{r_i}$ . We have shown that for each $i \in [f]$ , we can obtain a function $\phi _i$ , and sets $\mathcal {X}_i$ , such that Claim 3.1.1 (i) and Claim 3.1.1 (ii) hold.

We still need to prove Claim 3.1.1 (iii). It is true by definition for $i=0$ . Equation (3.1) implies that $q_{t_j}(\psi _{j},\boldsymbol {\beta }_{j}) - q_{p_j}(\psi _j,\boldsymbol {\beta }_j) \geq 0$ . At step $i+1$ during the $j+1$ superstep, we change the attachment of a single vertex $v_i$ , and we have $|\phi _i(v_iy)| \leq 1$ for all $y \in V_{j,p_j} \cup V_{j,t_j}$ . Thus, the only change to $q_{v_i}$ is for pairs $v_ix$ with $x \in V_{j,j'}$ for $j' \in W_{j+1}\setminus \{t_j\}$ . Thus, $q_{v_i}(\phi _{i+1},\boldsymbol {\alpha }) - q_{v_i}(\phi _i,\boldsymbol {\alpha })$ is the difference of the left- and right-hand sides of (3.1). The required statement follows since $q(\phi _{i+1},\boldsymbol {\alpha })-q(\phi _i,\boldsymbol {\alpha }) = \alpha _{v_i}(q_{v_i}(\phi _{i+1},\boldsymbol {\alpha }) - q_{v_i}(\phi _i,\boldsymbol {\alpha }))$ .

Since $\phi _f =_{\mathcal {X}_f} \psi _f \in \Phi _2(r_f;\boldsymbol {k})$ by definition, we also have that

(3.3)

Moreover, Claim 3.1.1 (iii) implies that

(3.4) $$ \begin{align} Q(\boldsymbol{k}) \geq q(\psi_f,\boldsymbol{\alpha}_f) \geq q(\psi_{f-1},\boldsymbol{\alpha}_{f-1}) \geq \ldots \geq q(\psi_0,\boldsymbol{\alpha}_0) \geq Q(\boldsymbol{k}) - 2\varepsilon. \end{align} $$

Note that Lemma 2.3 implies that there is some vertex weighting $\boldsymbol {\beta}$ close to $\boldsymbol {\alpha}_f$ such that $(r_f,\psi_f,\boldsymbol {\beta})$ is optimal (but it could have zero parts). So ‘forwards symmetrisation’ has allowed us to pass from our original feasible solution $(r,\phi ,\boldsymbol {\alpha })$ to a new feasible solution $(r_f,\psi _f,\boldsymbol {\alpha }_f)$ , which is very close to a $Q_2$ -optimal solution (both in terms of vertex weighting and colour pattern). But our eventual aim is to show that $(r,\phi ,\boldsymbol {\alpha })$ itself is close to this optimal solution. So we need to show that few ‘significant’ changes were made during the forwards symmetrisation procedure. To this end, our next step will be to follow the procedure backwards, using the partitions $\mathcal {X}_i$ of $[r]$ at each step, to form a new partition $\mathcal {U}_i$ of $[r]$ , which records how the solution at each step differs from $(r_f,\phi _f,\boldsymbol {\alpha }_f)$ .

It will be convenient to define some normalised versions $\hat {q},\hat {q}_x$ of $q,q_x$ (for $x \in [r]$ ). Here we recall that $\alpha _1=\ldots =\alpha _r=1/r$ which makes the normalisation simpler. Given $(r,\phi ,\boldsymbol {\boldsymbol {\alpha }}) \in \Phi _0(r;\boldsymbol {k})$ and $P \subseteq [r]$ , write

$$ \begin{align*} &q(P,\phi) := 2\sum_{\substack{xy \in \binom{P}{2}:\\ \phi(xy) \neq \emptyset}}\alpha_x\alpha_y|\log\phi(xy)| \quad\text{and}\quad q_x(P,\phi) := \sum_{\substack{y \in P\setminus\{x\}:\\ \phi(xy) \neq \emptyset}}\alpha_y|\log\phi(xy)|,\quad\text{and}\\ &\hat{q}(P,\phi) := \left(\frac{r}{|P|}\right)^2 \cdot q(P,\phi) \quad\text{and}\quad \hat{q}_x(P,\phi) := \frac{r}{|P|} \cdot q_x(P,\phi), \end{align*} $$

so that

(3.5) $$ \begin{align} \sum_{x \in P}\hat{q}_x(P,\phi) = |P|\hat{q}(P,\phi)\quad\text{and}\quad \hat{q}(P,\phi) \leq Q(\boldsymbol{k}) \end{align} $$

(if this inequality were not true, then setting $\beta _x:=1/|P|$ for $x \in P$ and $\beta _x:=0$ otherwise gives $q(\phi ,\boldsymbol {\beta })>Q(\boldsymbol {k})$ ).

3.2 The backwards symmetrisation procedure

The forwards symmetrisation procedure ended with which is very close to optimal. We now want to go backwards through each forwards step i in turn, each time defining a partition of $[r]$ into $r_f$ sets $U^1,\ldots , U^{r_f}$ corresponding to the vertices of $\psi _f$ as well as a small exceptional set $U^0$ . The desired conclusion is that, at the end of this process, the final sets $U^1,\ldots ,U^{r_f}$ , that is, those corresponding to the original $\phi $ we started with, have sizes roughly $\alpha _1'r,\ldots , \alpha ^{\prime }_{r_f} r$ for some vertex weighting ${\boldsymbol {\alpha }}'$ where (so ${\boldsymbol {\alpha }}'$ could differ significantly from ${\boldsymbol {\alpha }}_f$ and could have zero parts, but is nevertheless optimal). Thus the exceptional set together with the ‘extra’ parts outside of the support of ${\boldsymbol {\alpha }}'$ are small. This will mean that between parts, $\phi _i$ resembles $\psi _f$ throughout the process, but the sizes of the parts $U^1,\ldots ,U^{r_f}$ could change during the process. Thus $\phi $ resembles $\psi _f$ on the support of ${\boldsymbol {\alpha }}'$ in the required sense.

At each forwards step i, we modified the solution $\phi _{i-1}$ to obtain a new solution $\phi _i$ by changing the attachment at a single vertex $x_i$ , so that q did not decrease. Now, in the corresponding backwards step, initially no vertex is exceptional. Then, we reconsider the attachment at $x_i$ : if it was small in $\phi _i$ we remove it into the exceptional set $U^0$ . If any other vertex y also has small attachment in $\phi _i$ we also remove it to $U^0$ . If $x_i$ was not removed, we assign it to the part $U^j$ where $x_i$ looks most like a $\psi _f$ -clone of j in $\phi _i$ , and similarly assign vertices which are no longer exceptional.

The extension property guarantees that any vertex which was not moved into the exceptional set, and therefore has large attachment, looks similar to a $\psi_f$ -clone. There cannot be too many exceptional vertices since they all have small attachment, whereas q is large.

We now formally describe the i-th backwards step. Define $\mathcal {U}_{f} := \{ U^0_{f},\ldots ,U^{r_f}_{f} \}$ by setting $U^j_{f} := X_{f,j}$ for all $j \in [r_f]$ and $U^0_{f} := \emptyset $ . For each $i=f-1,\ldots ,0$ , define $U_i$ and $\mathcal {U}_{i} := \{ U^0_{i},\ldots ,U^{r_f}_{i} \}$ inductively as follows. Initially, $U_i=[r]$ and $U^0_i=\emptyset $ . If $\hat {q}_{x_i}(U_{i},\phi _{i}) < Q(\boldsymbol {k})-\sqrt {\varepsilon }$ , move $x_i$ from $U_i$ into $U^0_{i}$ . Next, if there is $y \in U_{i}$ such that $\hat {q}_y(U_{i},\phi _{i})<Q(\boldsymbol {k})-\sqrt {\varepsilon }$ , move y into $U^0_{i}$ (we also include the special vertex $x_i$ here, if at some point its attachment becomes too small). Update $U_{i}$ and repeat until there are no such vertices left in $U_{i}$ .

Next, for each $j \in [r_f]$ , let $U_i^j$ be the restriction of $U_{i+1}^j$ to $U_i\setminus \{x_i\}$ . For each $z \in B_i := (U_{i+1}^0 \cup \{x_i\}) \cap U_i$ , add z to the part $U_i^j$ such that z looks most like a $\psi _f$ -clone of j under $\phi _i|_{U_i}$ ; that is, choose the index $j\in [r_f]$ such that

$$\begin{align*}\left(\kern1.5pt\sum_{j' \in [r_f]\setminus \{j\}}|\{y \in U_i^{j'}: \phi_i(yz) \neq \psi_f(j'j)\}|\right)+|\{y \in U_i^j: |\phi_i(yz)| \geq 2\}| \end{align*}$$

is minimal (breaking ties arbitrarily). This completes backwards step i; now move on to backwards step $i-1$ .

We show that the exceptional set $U_i^0$ is always small.

Claim 3.1.2. For all $i=f,\ldots ,0$ , we have $|U^0_{i}| \leq 2\sqrt {\varepsilon }r$ .

Proof of Claim.

Let $y_1,\ldots ,y_\ell $ be the vertices which are moved into $U_{i}^0$ at step i, in this order. So $|U_{i}^0| = \ell $ .

Given distinct $x,y \in [r]$ , write $d_i(xy) := \log |\phi _i(xy)|$ if $\phi _i(xy)\neq \emptyset $ and $d_i(xy):=0$ otherwise. For $1 \leq k \leq \ell $ , the vertex $y_k$ is moved to $U^0_{i}$ due to $\hat {q}_{y_k}(U_{i,k},\phi _{i}) < Q(\boldsymbol {k})-\sqrt {\varepsilon }$ , where $U_{i,k} := [r]\setminus \{y_1,\ldots ,y_{k-1}\}$ . Note that $\hat {q}_{y_k}(U_{i,k},\phi _i)|U_{i,k}|=\sum _{x \in U_{i,k+1}}d_i(xy_k)$ . We have

$$ \begin{align*} Q(\boldsymbol{k})\frac{(r-\ell)^2}{2} &\stackrel{({\scriptstyle 3.5})}{\geq} \hat{q}(U_i,\phi_i)\frac{|U_i|^2}{2} = \sum_{xy \in \binom{U_i}{2}}d_i(xy) = \sum_{xy \in \binom{[r]}{2}}d_i(xy) - \sum_{k \in [\ell]}\hat{q}_{y_k}(U_{i,k},\phi_i)|U_{i,k}|\\ &\ \ \geq \sum_{xy \in \binom{[r]}{2}}d_i(xy) - \sum_{k \in [\ell]}(Q(\boldsymbol{k})-\sqrt{\varepsilon})(r-k+1)\\ &\ \ = q(\phi_i,{\boldsymbol{\alpha}})\frac{r^2}{2} - (Q(\boldsymbol{k})-\sqrt{\varepsilon})\left(r\ell - \binom{\ell}{2}\right)\\ &\stackrel{({\scriptstyle 3.4})}{\geq} (Q(\boldsymbol{k})-2{\varepsilon})\frac{r^2}{2}- (Q(\boldsymbol{k})-\sqrt{\varepsilon})\left((r-\ell)\ell + \binom{\ell+1}{2}\right). \end{align*} $$

Rearranging, we have $\sqrt {\varepsilon }((r-\ell )\ell +\binom {\ell +1}{2}) \leq {\varepsilon } r^2 +Q(\boldsymbol {k})\ell /2 < 3\varepsilon r^2/2$ . But if $2\sqrt {\varepsilon }r \leq \ell \leq r/2$ , we have $\sqrt {\varepsilon }(r-\ell )\ell \geq \sqrt {\varepsilon }(1-2\sqrt {\varepsilon })\cdot 2\sqrt {\varepsilon }r^2> 3{\varepsilon } r^2/2$ . Thus, at the moment when $2\sqrt {\varepsilon }r$ vertices are added to $U^0_i$ , we obtain a contradiction.

Every $x \in U_i$ satisfies $\hat {q}_x(U_i,\phi _i) \geq Q(\boldsymbol {k})-\sqrt {\varepsilon }$ . Let $n := |U_i|$ and let $G_i$ be the complete graph with vertex set $U_i$ whose edges are coloured red (for missing), blue (for extra) or green (for perfect) as follows. For each $x \in U_i$ , let $j_x \in [r_f]$ be such that $x \in U^{j_x}_i$ . For each $xy \in E(G_i)$ ,

• • $xy$ is red if $j_x \neq j_y$ and $\phi _i(xy) \subsetneq \psi _f(j_xj_y)$ , so there are missing colours.

• • $xy$ is blue if either $j_x \neq j_y$ and $\phi _i(xy) \setminus \psi _f(j_xj_y) \neq \emptyset $ , or $j_x=j_y$ and $\phi _i(xy) \not \subseteq \{1\}$ , so there are extra colours.

• • $xy$ is green otherwise.

Recall that we defined

(3.6) $$ \begin{align} B_i = (U^0_{i+1} \cup \{x_i\}) \cap U_i,\quad\text{and that}\quad|B_i| \leq 3\sqrt{\varepsilon}r \end{align} $$

by Claim 3.1.2. The colouring of $G_i-B_i$ depends only on the previous partition $\mathcal {U}_{i+1}$ and the colour pattern $\phi _{i+1}$ since every vertex in $U_i \setminus B_i$ lies in $U^j_{i+1} \cap U^j_i$ for some $j \in [r_f]$ , and the colour patterns $\phi _i$ and $\phi _{i+1}$ only differ at $x_i$ . Also,

$$\begin{align*}n = r - |U^0_i| \geq (1-2\sqrt{\varepsilon})r. \end{align*}$$

Write ${\boldsymbol {\beta }}_i := (|U_i^1|,\ldots ,|U_i^{r_f}|)/|U_i| \in \Delta ^{r_f}$ .

Claim 3.1.3. For all $i=f,\ldots ,0$ , $G_i$ has no blue edges.

Proof of Claim.

We prove this by backwards induction for $i=f,\ldots ,0$ . The claim is true for $i=f$ , as every edge in $G_f$ is green. Suppose it is true for all backwards steps $f,\ldots ,i+1$ . The induction hypothesis and the fact that $\phi _i$ differs from $\phi _{i+1}$ only at $x_i$ implies that only vertices in $B_i$ can be incident with blue edges in $G_i$ .

First we show that $G_i$ contains few red edges and ${\boldsymbol {\beta }}_i$ is close to an optimal vertex weighting. Indeed,

$$ \begin{align*} Q(\boldsymbol{k})-\sqrt{\varepsilon} &\leq \sum_{x \in U_i}\hat{q}_x(U_i,\phi_i)/|U_i| = \hat{q}(U_i,\phi_i)\\&\leq\left(\frac{r}{|U_i|}\right)^2\left(\frac{2}{r^2}\sum_{\substack{xy \in E(G_i) \\ \psi_f(j_xj_y) \neq \emptyset}}\log|\psi_f(j_xj_y)| - \frac{2}{r^2}\sum_{xy \text{ red}}\log\left(\frac{|\psi_f(j_xj_y)|}{|\psi_f(j_xj_y)|-1}\right)+\frac{2\log s}{r}|B_i|\right)\\&\leq q(\psi_f,{\boldsymbol{\beta}}_i)-2\log\left(\frac{s}{s-1}\right)\frac{e_{\mathrm{red}}(G_i)}{n^2} + \frac{2r\log s|B_i|}{n^2}\\&\leq Q(\boldsymbol{k})-2\log\left(\frac{s}{s-1}\right)\frac{e_{\mathrm{red}}(G_i)}{n^2} + 7\sqrt{\varepsilon}\log s. \end{align*} $$

Thus

(3.7) $$ \begin{align} e_{\mathrm{red}}(G_i) \leq {\varepsilon}^{1/3}n^2 \end{align} $$

and additionally, from the penultimate inequality, $q(\psi _f,{\boldsymbol {\beta }}_i) \geq Q(\boldsymbol {k}) - {\varepsilon }^{1/4}$ . Lemma 2.3 applied with parameters $s,\boldsymbol {k},\gamma $ implies that there exists ${\boldsymbol {\alpha }}^{\prime }_i \in \Delta ^{r_f}$ such that and

(3.8) $$ \begin{align} \|{\boldsymbol{\beta}}_i-{\boldsymbol{\alpha}}^{\prime}_i\|_1 < \gamma \ll \eta \delta. \end{align} $$

Without loss of generality, suppose the nonzero entries of ${\boldsymbol {\alpha }}^{\prime }_i$ form an initial segment of length $\tilde {r}_i$ , and let $\tilde {{\boldsymbol {\alpha }}}_i$ be this initial segment. Let $\tilde {\phi }_i := \psi _f|_{\binom {[\tilde {r}_i]}{2}}$ . Then . We claim that

(3.9) $$ \begin{align} q_{j}(\psi_f,{\boldsymbol{\alpha}}^{\prime}_i) \leq Q(\boldsymbol{k})\quad\text{for all}\quad j \in [r_f]. \end{align} $$

Indeed, if $j \in [\tilde {r}_i]$ , then Proposition 2.1 implies that $q_{j}(\psi _f,{\boldsymbol {\alpha }}_i')=q_j(\tilde {\phi }_i,\tilde {{\boldsymbol {\alpha }}}_i) = Q(\boldsymbol {k})$ . If $\tilde {r}_i < j \leq r_f$ , then Proposition 2.6 implies the bound $q_{j}(\psi _f,{\boldsymbol {\alpha }}^{\prime }_i)={\mathop {\mathrm {ext}}}(\psi _f|_{\binom {[\tilde {r}_i] \cup \{j\}}{2}},\tilde {{\boldsymbol {\alpha }}}_i) \leq Q(\boldsymbol {k})$ .

Next we claim that every $z \in B_i$ is $\delta $ -close under $\phi _i|_{\binom {U_i}{2}}$ to being a $\psi _f$ -clone of some $j \in [\tilde {r}_i] \subseteq [r_f]$ , which will follow from an application of Lemma 2.12. Suppose not. To apply the lemma, let $U'_i := \bigcup_{j \in [\tilde{r}_i]}U^j_i$ and $U^z_i := \{z\} \cup (U_i' \setminus B_i)$ and $t:=|U_i' \setminus B_i|$ . Let $\tilde {{\boldsymbol {\beta }}}_i := (|U_i^1\setminus B_i|,\ldots ,|U_i^{\tilde {r}_i}\setminus B_i|)/|U_i' \setminus B_i|$ , so $\|\tilde {{\boldsymbol {\beta }}}_i-\tilde {{\boldsymbol {\alpha }}}_i\|_1 \leq 2\gamma $ by (3.8). Let $\phi ': \binom {U^z_i}{2} \to 2^{[s]}$ be obtained from $\phi _i$ as follows. Let $\phi '(zy):=\phi _i(zy)$ for all $y \in U_i^z\setminus \{z\}$ , and let $\phi '$ agree with $\phi _f$ elsewhere, that is, $\phi '(xy):=\psi _f(j_xj_y)$ whenever $j_x \neq j_y$ , and $\phi '(xy):=\emptyset $ if $j_x=j_y$ . Let ${\boldsymbol {\alpha }}_t$ be the length-t vector which is identically $1/t$ . We have

$$\begin{align*}{\mathop{\mathrm{ext}}}(\phi',{\boldsymbol{\alpha}}_t)=q_z(\phi_i|_{\binom{U^z_i}{2}},(\tfrac{1}{t},\ldots,\tfrac{1}{t},0)) \geq \frac{1}{t}\left(|U_i|\hat{q}_z(U_i,\phi_i)-(\log s)(|B_i|+\gamma r)\right)>Q(\boldsymbol{k})-2(\log s)\gamma. \end{align*}$$

We can apply Lemma 2.12 with $(\tilde {r}_i,\tilde {\phi }_i,\tilde {{\boldsymbol {\alpha }}}_i),(U^j_i \setminus B_i: j \in [\tilde{r}_i])$ , ${\boldsymbol {\alpha }}_t,\tilde {{\boldsymbol {\beta }}_i},z$ playing the roles of $(r^*,\phi ^*,{\boldsymbol {\alpha }}^*),\mathcal {V},{\boldsymbol {\alpha }},{\boldsymbol {\beta }},r+1$ to see that, writing L for the set of sets $\{y_1,\ldots ,y_{k_1-1}\} \in \binom {U_i'\setminus B_i}{k_1-1}$ (i.e. $(k_1-1)$ -subsets of vertices of $G_i[U_i']-B_i$ ) such that $(\phi ')^{-1}(c)[\{z,y_1,\ldots ,y_{k_1-1}\}] \supseteq K_{k_c}$ for some $c \in [s]$ , we have $|L| \geq \eta n^{k_1-1}$ .

For every $\{y_1,\ldots ,y_{k_1-1}\} \in L$ , there are $\ell ,\ell ' \in [k_1-1]$ such that $y_\ell y_{\ell '}$ is red (recalling that these edges are either red or green), otherwise $\phi _i$ is identical to $\phi '$ on all pairs of these vertices, and thus $\phi_i^{-1}(c)$ contains a copy of $K_{k_c}$ for some c. Each pair appears in at most $n^{k_1-3}$ sets in L, so the number of red edges in $G_i$ is at least $ \eta n^{k_1-1}/n^{k_1-3} = \eta n^2> 2{\varepsilon }^{1/3} n^2 $ , a contradiction to (3.7). Thus z is $\delta $ -close to being a $\psi _f$ -clone of some $j \in [\tilde {r}_i]$ under $\phi _i|_{\binom {U_i^z}{2}}$ .

During backwards symmetrisation we added z to the part $U_i^{j_{z}}$ such that z was closest to a $\psi _f$ -clone of $j_{z}$ under $\phi _i$ , so

$$ \begin{align*} d_{\mathrm{red}}(z)+d_{\mathrm{blue}}(z) &\leq \sum_{j' \in [r_f]\setminus\{j_z\}}|\{y \in U^{j'}_i: \phi_i(zy) \neq \psi_f(j_zj_y)\}|+|\{y \in U^{j_z}_i: |\phi_i(zy)| \geq 2\}|\\ &\leq \sum_{j' \in [r_f]\setminus\{j\}}|\{y \in U^{j'}_i: \phi_i(zy) \neq \psi_f(jj_y)\}|+|\{y \in U^{j}_i: |\phi_i(zy)| \geq 2\}|\\ &\leq \delta t + |B_i| \leq 2\delta n. \end{align*} $$

Therefore the green degree of z in $G_i$ is

(3.10) $$ \begin{align} d_{\mathrm{green}}(z) \geq (1-2\delta)n \quad \text{for all }z \in B_i. \end{align} $$

Thus

$$\begin{align*} \nonumber Q(\boldsymbol{k})-\sqrt{\varepsilon} &\leq \hat{q}_z(U_i,\phi_i)\leq \frac{r}{|U_i|}\left( \frac{1}{r}\sum_{\substack{y \in U_i \\ \psi_f(j_zj_y) \neq \emptyset}}\log|\psi_f(j_zj_y)| + \frac{\log s}{r}(n-1-d_\mathrm{green}(z))\right)\\\nonumber &\leq q_{j_z}(\psi_f,{\boldsymbol{\beta}}_i) + 3\delta\log s \leq q_{j_z}(\psi_f,{\boldsymbol{\alpha}}^{\prime}_i) + 2(\log s)\|{\boldsymbol{\alpha}}^{\prime}_i-{\boldsymbol{\beta}}_i\|_1 + 3\delta\log s\\\nonumber &\kern-5pt\stackrel{({\scriptstyle 3.8})}{\leq} q_{j_z}(\psi_f,{\boldsymbol{\alpha}}^{\prime}_i) + 4\delta\log s \end{align*}$$

and therefore

(3.11) $$ \begin{align} q_{j_z}(\psi_f,{\boldsymbol{\alpha}}_i') \geq Q(\boldsymbol{k})-\sqrt{\delta}\quad\text{for all }z \in B_i. \end{align} $$

(By the optimality of $(r_f,\psi _f,{\boldsymbol {\alpha }}_i')$ this is automatically true for nonzero parts.) Next, we show the number of red edges incident to a vertex x in $U_i\setminus B_i$ is

(3.12) $$ \begin{align} d_{\mathrm{red}}(x) \leq \sqrt{\gamma}n \quad\text{and hence}\quad d_{\mathrm{green}}(x) \geq (1-2\sqrt{\gamma})n \quad\text{for all }x \in U_i\setminus B_i. \end{align} $$

Indeed, the second part follows from the first since every edge incident to x in $G_i-B_i$ is either green or red. To prove the first part, let $x \in U_i\setminus B_i$ . Since x can have blue neighbours only in $B_i$ , we have

(3.13) $$ \begin{align} \nonumber Q(\boldsymbol{k})-\sqrt{\varepsilon} &\leq \hat{q}_x(U_i,\phi_i)\\\nonumber &\leq \frac{r}{|U_i|}\left( \frac{1}{r}\sum_{\substack{y \in U_i \setminus B_i \\ \psi_f(j_xj_y) \neq \emptyset}}\log|\psi_f(j_xj_y)| - \frac{1}{r}\sum_{y \in N_\mathrm{ red}(x)}\log\left(\frac{|\psi_f(j_xj_y)|}{|\psi_f(j_xj_y)|-1}\right) + \frac{\log s}{r}|B_i|\right)\\\nonumber &\leq q_{j_x}(\psi_f,{\boldsymbol{\beta}}_i) - \log\left(\frac{s}{s-1}\right)\frac{d_{\mathrm{red}}(x)}{n} + 4\log s\sqrt{\varepsilon}\\\nonumber &\leq q_{j_x}(\psi_f,{\boldsymbol{\alpha}}^{\prime}_i) - \frac{d_{\mathrm{red}}(x)}{sn}+3\gamma\log s\\ &\leq Q(\boldsymbol{k}) - \frac{d_{\mathrm{red}}(x)}{sn}+3\gamma\log s, \end{align} $$

where the final inequality follows from (3.9). Therefore, $d_{{\mathrm {red}}}(x) \leq \sqrt {\gamma }n$ , as required, and the penultimate inequality implies that $q_{j_x}(\psi _f,{\boldsymbol {\alpha }}^{\prime }_i) \geq Q(\boldsymbol {k})-\gamma ^{1/3}$ .

Combined with (3.11), we have shown that $q_{j_y}(\psi _f,{\boldsymbol {\alpha }}^{\prime }_i) \geq Q(\boldsymbol {k})-\sqrt {\delta }$ for all $y \in U_i$ . We will now show that this means that ${\boldsymbol {\beta }}_i$ has the same support as ${\boldsymbol {\alpha }}^{\prime }_i$ ; that is, either $\tilde {r}_i=r_f$ , or for all $\tilde {r}_i<j \leq r_f$ , we have $\beta _{i,j}=0$ . Suppose not; then without loss of generality there is some $x \in U^{\tilde {r}_i+1}_i$ (so $j_x=\tilde {r}_i+1$ ). We have ${\mathop {\mathrm {ext}}}(\psi _f|_{\binom {[\tilde {r}_i+1]}{2}},\tilde {{\boldsymbol {\alpha }}}_i) = q_{\tilde {r}_i+1}(\psi _f,(\alpha ^{\prime }_{i,1},\ldots ,\alpha ^{\prime }_{i,\tilde {r}_i},0)) \geq Q(\boldsymbol {k})-\sqrt {\delta }$ . Thus Lemma 2.10 implies that $\tilde {r}_i+1$ is a $\psi _f$ -clone of some $j^* \in [\tilde {r}_i]$ under $\psi _f$ , which is a contradiction since $|\psi _f(\{\tilde {r}_i+1,j^*\})| \geq 2$ for all $j^* \in [\tilde {r}_i]$ . Thus $U^j_i=\emptyset $ for all $\tilde {r}_i < j \leq r_f$ , so (3.8) implies that

(3.14) $$ \begin{align} \beta_{i,j} \geq \tilde{\alpha}_{i,j}-\gamma \geq \mu-\gamma \geq \mu/2\quad\text{for all }j \in [\tilde{r}_i], \quad\text{and}\quad U_i = \bigcup_{j \in [\tilde{r}_i]}U^j_i. \end{align} $$

We can now complete the claim, comparing $\phi _i$ and the partition $\bigcup _{j \in [\tilde {r}_i]}U^j_i$ of $U_i$ to . Suppose for a contradiction that there is a blue edge $zy$ , so $z \in B_i$ and $y \in U_i$ (where y could also be in $B_i$ ). Let $j_1 := j_{z}$ and $j_2 := j_y$ , so $\{j_1,j_2\} \subseteq [\tilde {r}_i]$ by (3.14). By definition, either

1. (i) $j_1 \neq j_2$ and there is $c \in \phi _i(zy)\setminus \tilde {\phi }_i(j_1j_2)$ , or

2. (ii) $j_1=j_2$ and there is some $1 \neq c \in \phi _i(zy)$ .

We claim that, in both cases, there exist $j_3,\ldots ,j_{k_c} \in [\tilde {r}_i]\setminus \{j_1,j_2\}$ such that $c \in \tilde {\phi }_i(j_\ell j_{\ell '})$ for all pairs among $\{j_1,\ldots ,j_{k_c}\}$ except $j_1j_2$ if they are distinct. Indeed, suppose (i) holds. By Lemma 2.5(i), the graph $([\tilde {r}_i],(\tilde {\phi }_i)^{-1}(c))$ is maximally $K_{k_c}$ -free. Since it is not complete, we are done. Suppose (ii) holds. By Lemma 2.5(ii), $(\boldsymbol {1}+\boldsymbol {e}_{j_1})(\tilde {\phi }_i)^{-1}(c)$ contains a copy of $K_{k_c}$ as $c \neq 1$ .

We say that a subset $\{y_3,\ldots ,y_{k_c}\}$ with $y_\ell \in U_i^{j_\ell }$ for $3 \leq \ell \leq k_c$ is bad if $zy_\ell $ , $yy_\ell $ and $y_{\ell }y_{\ell '}$ for every $\ell \ell '\in \binom {[k_c]}{2}$ are green. Since $c \in \phi _i(zy)$ , there can be no bad subsets in $G_i$ since then $c \in \phi _i(xy)$ for every pair $xy$ among vertices in the subset, contradicting $K_{k_c} \notin \tilde {\phi }_i^{-1}(c)([\tilde {r}_i])$ . On the other hand, at least, say, $\prod _{3 \leq \ell \leq k_c}(|U_i^{j_\ell }|/2)$ subsets are bad. Indeed, (3.14) implies that $|U_i^j| =\beta _{i,j}n \geq \mu n/2$ for all $j \in [\tilde {r}_i]$ . Also, (3.12) and (3.10) imply that every vertex has at most $2\delta n$ nongreen neighbours. Thus, choosing $y_3,\ldots ,y_{k_c}$ sequentially, among the vertices in $U_i^{j_\ell }$ , there are at most $2(\ell -1)\delta n < \mu n/4 < |U_i^{j_\ell }|/2$ vertices forbidden for $y_\ell $ due to not being a green neighbour of every $y_1,\ldots ,y_{\ell -1}$ , as required. This contradiction implies that z is not incident to any blue edges, and thus $G_i$ contains no blue edges. This finishes the proof of Claim 3.1.3.

As before, let us assume that nonzero entries of ${\boldsymbol {\alpha }}^{\prime }_0$ are indexed by $[\tilde {r}_0]$ . So Lemma 3.1 holds when we set $Y_0 := U_0^0 \cup \bigcup _{\tilde {r}_0+1 \leq j \leq r_f}U_0^j$ and $Y_j := U_0^j$ for all $j \in [\tilde {r}_0]$ and $(\tilde {r}_0,\tilde {\phi }_0,\tilde {{\boldsymbol {\alpha }}}_0)$ plays the role of $(r^*,\phi ^*,{\boldsymbol {\alpha }}^*)$ . This completes the proof of Lemma 3.1.

4 Stability of asymptotically extremal graphs

4.1 Tools for large graphs

One of our main tools is Szemerédi’s regularity lemma, which allows us to discretise a large edge-coloured graph and thus approximate it by a feasible solution to Problem $Q_0$ . We will need the following definitions relating to regularity.

Definition 4.1 (Edge density, regularity of pairs and partitions).

Given a graph G and disjoint nonempty sets $A,B \subseteq V(G)$ , we define the edge density between A and B to be

$$ \begin{align*}d_G(A,B) := \frac{e_G(A,B)}{|A||B|}. \end{align*} $$

Given $\varepsilon ,d> 0$ , the pair $(A,B)$ is called

1. • $\varepsilon $ -regular, if for every $X \subseteq A$ and $Y \subseteq B$ with $|X| \geq \varepsilon |A|$ and $|Y| \geq \varepsilon |B|$ , we have that $|d(X,Y) - d(A,B)| \leq \varepsilon $ .

2. • $(\varepsilon , d)$ -regular, if $(A,B)$ is $\varepsilon $ -regular and $d_G(A,B) = d \pm \varepsilon $ .

3. • $(\varepsilon ,\geq \! d)$ -regular, if it is $\varepsilon $ -regular and has density at least $d-\varepsilon $ .

An equitable partition of a set V is a partition of V into parts $V_1,\ldots ,V_m$ , such that $|\,|V_i| - |V_j|\,| \leq 1$ for all $i,j \in [m]$ . An equitable partition of $V(G)$ into parts $V_1,\ldots ,V_m$ is called $\varepsilon $ -regular if $|V_i| \leq \varepsilon |V(G)|$ for every $i \in [m]$ , and all but at most $\varepsilon \binom {m}{2}$ of the pairs $(V_i,V_j)$ are $\varepsilon $ -regular.

We use the following multicolour version of Szemerédi’s regularity lemma [27]. This version can be deduced from the original (see, for example, Theorems 1.8 and 1.18 in Komlós and Simonovits [19]).

Theorem 4.2 (Multicolour regularity lemma).

For every $\varepsilon> 0$ and $s \in \mathbb {N}$ , there exists $M \in \mathbb {N}$ , such that for any graph G on $n \geq M$ vertices and any edge s-colouring $\chi : E(G) \rightarrow [s]$ , there is an equitable partition $V(G) = V_1 \cup \ldots \cup V_m$ with $1/\varepsilon \leq m \leq M$ , which is $\varepsilon $ -regular simultaneously with respect to all graphs $(V(G),\chi ^{-1}(i))$ , with $i \in [s]$ . $\Box $

Our first tool states that a subgraph of a regular pair is still regular, provided both parts are not too small.

Proposition 4.3 [24, Proposition 9].

Let $\varepsilon ,\delta $ be such that $0 < 2\delta \leq \varepsilon < 1$ . Suppose that $(X,Y)$ is a $\delta $ -regular pair, and let $X' \subseteq X$ and $Y' \subseteq Y$ . If

$$ \begin{align*}\min \left\{ \frac{|X'|}{|X|} , \frac{|Y'|}{|Y|} \right\} \geq \frac{\delta}{\varepsilon}, \end{align*} $$

then $(X',Y')$ is $\varepsilon $ -regular. $\Box $

The next proposition states that, given a set of edge-disjoint subgraphs $G_1,\ldots ,G_s$ of a bipartite graph, if at least one of the graphs $G_i$ is not regular of density $s^{-1}$ , then there is a $G_j$ whose density on a pair of large sets is reduced.

Proposition 4.4. Let $A,B$ be disjoint sets of vertices, $s \in \mathbb {N}$ , and let $\varepsilon> 0$ be a constant with $1/|A|,1/|B| \ll \varepsilon \ll 1/s$ . Let $G_1,\ldots ,G_s$ be pairwise edge-disjoint subgraphs of $K[A,B]$ . Suppose that not all of $G_1,\ldots ,G_s$ are $(\varepsilon ,s^{-1})$ -regular graphs. Then there exists $c \in [s]$ and $X \subseteq A$ , $Y \subseteq B$ with $|X| = \lceil \varepsilon |A|\rceil $ and $|Y| = \lceil \varepsilon |B| \rceil $ , such that

$$ \begin{align*} d_{G_c}(X,Y) \leq \frac{1}{s}\left( 1 - \frac{\varepsilon}{2}\right). \end{align*} $$

Proof. Given $c \in [s]$ , $X \subseteq A, Y \subseteq B$ , let

$$ \begin{align*} \text{diff}_c(X,Y) := s^{-1}|X||Y|-e_{G_c}(X,Y). \end{align*} $$

If $G_c$ is not $(\varepsilon ,s^{-1})$ -regular, then either

1. (i) $|\text {diff}_c(A,B)|> \frac {\varepsilon }{2}|A||B|$ ; or

2. (ii) there is some $X \subseteq A$ and $Y \subseteq B$ with $|X| \geq \varepsilon |A|$ and $|Y| \geq \varepsilon |B|$ , such that

   $$ \begin{align*} \bigg|\frac{e_{G_c}(X,Y)}{|X||Y|}-\frac{e_{G_c}(A,B)}{|A||B|}\bigg|> \varepsilon; \end{align*} $$

or both (the immediate implication from the definition of $(\varepsilon ,s^{-1})$ -regular would have (i) replaced by $|\text {diff}_c(A,B)|> \varepsilon |A||B|$ , which is stronger than the statement of (i)). To prove the proposition, it is enough to exhibit $c^* \in [s]$ , $X' \subseteq A$ and $Y' \subseteq B$ with $|X'| \geq \varepsilon |A|$ and $|Y'| \geq \varepsilon |B|$ so that

(4.1) $$ \begin{align} \text{diff}_{c^*}(X',Y') \geq \frac{\varepsilon}{2s}|X'||Y'|. \end{align} $$

Indeed, if we can find such $c^*,X',Y'$ , then, setting $k_1 := \lceil \varepsilon |A|\rceil $ and $k_2 := \lceil \varepsilon |B|\rceil $ , we have that

$$ \begin{align*} \sum_{\stackrel{X \subseteq X'}{|X|=k_1}}\sum_{\stackrel{Y \subseteq Y'}{|Y|=k_2}} \text{diff}_{c^*}(X,Y) &= \binom{|X'|}{k_1}\binom{|Y'|}{k_2}s^{-1}k_1k_2 - \binom{|X'|-1}{k_1-1}\binom{|Y'|-1}{k_2-1}e_{G_{c^*}}(X',Y')\\ &= \binom{|X'|-1}{k_1-1}\binom{|Y'|-1}{k_2-1} \text{diff}_{c^*}(X',Y'); \end{align*} $$

so, by averaging, there is some $X \subseteq X'$ and $Y \subseteq Y'$ with $|X|=k_1$ , $|Y|=k_2$ , such that

$$ \begin{align*} \text{diff}_{c^*}(X,Y) \geq \text{diff}_{c^*}(X',Y') \cdot \frac{k_1k_2}{|X'||Y'|} = \frac{\varepsilon}{2s}|X||Y|, \end{align*} $$

as required. So we will now concentrate on finding $c^*,X',Y'$ so that (4.1) holds. Suppose first that (i) holds for some $c \in [s]$ . If $\text {diff}_c(A,B)> 0$ , then we are done by setting $c^* := c$ , $X' := A$ and $Y' := B$ . So we may assume that $\text {diff}_c(A,B) < 0$ . Observe that

$$ \begin{align*} \sum_{i \in [s]}\text{diff}_i(A,B) \geq 0. \end{align*} $$

So $\sum _{i \in [s]\setminus \{ c \}}\text {diff}_i(A,B) \geq \varepsilon |A||B|/2$ . By averaging, there is some $c' \in [s]$ , such that

$$ \begin{align*}\text{diff}_{c'}(A,B) \geq \frac{\varepsilon|A||B|}{2(s-1)} \geq \frac{\varepsilon}{2s}|A||B|. \end{align*} $$

So we are done by setting $c^* := c'$ , $X' := A$ and $Y' := B$ .

Suppose instead that (ii) holds for some $c \in [s]$ . So there are $X \subseteq A$ , $Y \subseteq B$ with $|X| \geq \varepsilon |A|$ , $|Y| \geq \varepsilon |B|$ , such that

$$ \begin{align*}\varepsilon < \bigg| \frac{\text{diff}_c(X,Y)}{|X||Y|} - \frac{\text{diff}(A,B)}{|A||B|} \bigg| < \frac{| \text{diff}_c(X,Y)|}{|X||Y|} + \frac{\varepsilon}{2}. \end{align*} $$

Therefore, $|\text {diff}_c(X,Y)|> \varepsilon |X||Y|/2$ . Again, we may assume that $\text {diff}_c(X,Y) < 0$ , or we are done. Then an almost identical argument to the one above yields $c' \in [s]$ , such that $\text {diff}_{c'}(X,Y) \geq \varepsilon |A||B|/2s$ . This completes the proof.

The next proposition states that regular pairs are robust under small perturbations; the version stated here is a slight variation of Proposition 8 in [5].

Proposition 4.5. Let $(A,B)$ be an $(\varepsilon , d)$ -regular pair, and let $(A',B')$ be a pair, such that $|A' \bigtriangleup A| \leq \alpha |A'|$ and $|B' \bigtriangleup B| \leq \alpha |B'|$ for some $0 \leq \alpha \leq 1$ . Then $(A',B')$ is an $(\varepsilon +7\sqrt {\alpha }, d)$ -regular pair.

We will also frequently use the following standard embedding lemma (see, for example, Theorem 2.1 in [19]).

Lemma 4.6 (Embedding lemma).

For every $\eta>0$ and integer $k \geq 2$ , there exist $\varepsilon>0\ \text{and}\ m_0 \in \mathbb {N}$ , such that the following holds. Suppose that G is a graph with a partition $V(G) = V_1 \cup \ldots \cup V_k$ , such that $|V_i| \geq m_0$ for all $i \in [k]$ , and every pair $(V_i,V_j)$ for $1 \leq i < j \leq k$ is $(\varepsilon ,\geq \! \eta )$ -regular. Then G contains $K_k$ .

4.1.1 Binomial tails

In order to prove Part (ii) of Theorem 1.4, we will need Corollary 4.8 below, which is a simple consequence of the Chernoff inequality. The combinatorial interpretation of this fact is that almost every partition of $[n]$ into k parts is such that every part has size roughly $n/k$ . Write $X \sim \text {Bin}(n,p)$ if a random variable X is binomially distributed with parameters $n \in \mathbb {N}$ , $p \in (0,1)$ .

Proposition 4.7 [18, Theorem 2.1].

Suppose $X \sim \text {Bin}(n,p)$ where $0<p<1$ . Let $k \leq np$ . Then

$$ \begin{align*}\mathbb{P}(X \leq k) \leq \exp \left( \frac{-(np-k)^2}{2np}\right). \end{align*} $$

Corollary 4.8. Let $n,k \in \mathbb {N}$ and $\delta \in \mathbb {R}$ , where $0 < 1/n \ll \delta \ll 1/k$ . Then

$$ \begin{align*}\sum_{i=0}^{\lfloor (k^{-1}-\delta) n \rfloor}\binom{n}{i} (k-1)^{n-i} \leq e^{-\delta^2 kn/3} \cdot k^n. \end{align*} $$

Proof. Let $X \sim \text {Bin}(n,k^{-1})$ be a binomial random variable. Then Proposition 4.7 implies that

$$ \begin{align*}\mathbb{P}(X \leq \lfloor(k^{-1}-\delta)n\rfloor) \leq \exp \left( \frac{-(n/k-\lfloor (k^{-1}-\delta)n \rfloor)^2}{2n/k} \right) \leq e^{-\delta^2kn/3}. \end{align*} $$

But

$$ \begin{align*}\mathbb{P}(X \leq \lfloor (k^{-1}-\delta)n\rfloor) = \sum_{i=0}^{\lfloor(k^{-1}-\delta)n\rfloor}\binom{n}{i}\left(\frac{1}{k}\right)^i \left(1-\frac{1}{k}\right)^{n-i} = k^{-n} \cdot \sum_{i=0}^{(k^{-1}-\delta)n\rfloor}\binom{n}{i}(k-1)^{n-i}, \end{align*} $$

as required.

We will also need the following simple bound, which we state without proof. Let $n \in \mathbb {N}$ and $\varepsilon ,\delta> 0$ , such that $0 < 1/n \ll \varepsilon \ll \delta < 1$ . Then

(4.2) $$ \begin{align} \binom{n}{\leq \varepsilon n} \leq 2^{\delta n}, \end{align} $$

where for integers $m \geq t$ , we write $\binom {m}{\leq t}:=\sum _{0 \leq i \leq t}\binom {m}{i}$ .

4.2 Preparation for the proof of Theorem 1.4

We define a hierarchy of constants and assume that these relations hold throughout the remainder of this section. Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ , and let $\delta> 0$ . In what follows, whenever we assume that a constant is sufficiently small, it is because a larger constant gives a weaker conclusion. Let $\mu> 0$ be such that $\alpha ^*_i \geq \mu $ for all and $i \in [r^*]$ (which exists by Lemma 2.8). We may assume that $\delta \ll \mu , 1/s, 1/R(\boldsymbol {k})$ . Choose $\gamma _3, \ldots , \gamma _6 \in \mathbb {R}$ , such that $0 < \gamma _3 \ll \ldots \ll \gamma _6 \ll \delta $ . In particular, we may assume that $\gamma _4 \leq \gamma _5/2M_{\gamma _5}$ , where $M_{\gamma _5}$ is the integer output of Theorem 4.2 applied with parameter $\gamma _5$ ; and $\gamma _5$ is at most the output of Lemma 4.6 applied with parameter $\gamma _6$ . Let $0 < \nu \ll \gamma _3$ . Let $\varepsilon> 0$ be such that $8\varepsilon $ is the output of Lemma 2.3 applied with $2\nu $ ; we may assume that $\varepsilon \ll \nu $ . Choose $\gamma _2 \in \mathbb {R}$ , such that $0 < \gamma _2 \ll \varepsilon $ . Let $\gamma _1> 0$ be the minimum constant obtained when Lemma 4.6 is applied with $\gamma _2$ playing the role of $\eta $ , and with $k_1,\ldots ,k_c$ playing the role of k. We may assume that $0 < \gamma _1 \ll \gamma _2$ . Apply Theorem 4.2 with parameter $\gamma _1$ to obtain $M \in \mathbb {N}$ , such that the conclusions of the theorem hold. We may assume that $1/M \ll \gamma _1$ . Now let $n_0 \in \mathbb {N}$ be such that $1/n_0 \ll 1/M$ . We have the hierarchy

(4.3) $$ \begin{align} 0 < \frac{1}{n_0} \ll \frac{1}{M} \ll \gamma_1 \ll \gamma_2 \ll \varepsilon \ll \nu \ll \gamma_3 \ll \gamma_4 \ll \gamma_5 \ll \gamma_6 \ll \delta \ll \mu\ll\frac{1}{R(\boldsymbol{k})}. \end{align} $$

We need the following somewhat technical definition of ‘popular vectors’ from [25], which allows us to choose colourings $\chi $ of G whose coloured regularity partition is a witness of many other valid colourings of G.

Definition 4.9 (Popular vectors).

Let G be a graph on $n \geq n_0$ vertices and $\chi : E(G) \rightarrow [s]$ be an s-edge colouring of G which is $\boldsymbol {k}$ -valid. Apply Theorem 4.2 to the pair $(G,\chi )$ with parameter $\gamma _1$ to obtain an equitable partition $V(G) = U_1 \cup \ldots \cup U_r$ with $1/\gamma _1 \leq r \leq M$ , which is $\gamma _1$ -regular simultaneously with respect to all graphs $(V(G),\chi ^{-1}(c))$ , with $c \in [s]$ . Let

$$ \begin{align*}\phi(ij) := \{ c \in [s] : \chi^{-1}(c)[U_i,U_j] \text{ is } (\gamma_1, \geq\! \gamma_2)\text{-regular} \}.\\[-16pt] \end{align*} $$

Let $\mathcal {U} := \{ U_i : i \in [r] \}$ . We define the function $\mathop {\mathrm {RL}}$ by setting

$$ \begin{align*}\mathop{\mathrm{RL}}(\chi) := (r,\phi,\mathcal{U})\\[-16pt] \end{align*} $$

(where we arbitrarily fix a single output if there is more than one choice of $(r,\phi ,\mathcal {U})$ ). We say that $(r,\phi ,\mathcal {U})$ is popular if

$$ \begin{align*}|\textstyle{\mathop{\mathrm{RL}}^{-1}}((r,\phi,\mathcal{U}))| \geq F(G;\boldsymbol{k}) \cdot 2^{-3\varepsilon n^2},\\[-16pt] \end{align*} $$

and unpopular otherwise. Let $\mathrm {Pop}(G)$ be the set of popular $(r,\phi ,\mathcal {U})$ , and let $\mathrm {Col}(G)$ be the set of $\boldsymbol {k}$ -valid colourings $\chi $ of G, such that $\mathop {\mathrm {RL}}(\chi ) \in \mathrm {Pop}(G)$ .

As the following proposition shows, almost every colouring $\chi $ maps to a popular vector.

Proposition 4.10. For all graphs G on $n \geq n_0$ vertices,

$$ \begin{align*}|\mathrm{Col}(G)| \geq (1-2^{-2\varepsilon n^2}) \cdot F(G;\boldsymbol{k}).\\[-16pt] \end{align*} $$

Proof. Let M be the integer output of Theorem 4.2 applied with parameter $\gamma _1$ . Let $n \geq M$ , and let G be a graph on n vertices. The function $\mathop {\mathrm {RL}}$ is well-defined. Then the number of outputs $(r,\phi ,\mathcal {U})$ is at most

$$ \begin{align*}M \cdot \left( 2^{\binom{M}{2}} \right)^s \cdot n^{M} = 2^{O(\log n)}.\\[-16pt] \end{align*} $$

Now,

$$ \begin{align*} \sum_{(r,\phi,\mathcal{U}) \in \mathrm{Pop}(G)}|\textstyle{\mathop{\mathrm{RL}}^{-1}}((r,\phi,\mathcal{U}))| &= F(G;\boldsymbol{k}) - \sum_{(r,\phi,\mathcal{U}) \notin \mathrm{Pop}(G)}|\textstyle{\mathop{\mathrm{RL}}^{-1}}((r,\phi,\mathcal{U}))|\\ &\geq \left(1 - 2^{O(\log n)} \cdot 2^{-3\varepsilon n^2} \right) F(G;\boldsymbol{k}) \geq (1-2^{-2\varepsilon n^2})F(G;\boldsymbol{k}),\\[-16pt] \end{align*} $$

as required.

4.3 The proof of Theorem 1.4

Using Lemma 3.1, we can now prove Theorem 1.4. Although this lemma is really the heart of the proof, there are still many steps required to ‘transfer’ its conclusion to the graph setting. For this reason, we split the proof into a series of claims, and continue to use the constants defined in (4.3).

Proof of Theorem 1.4. Suppose that G is a graph on $n \geq n_0$ vertices, and

(4.4) $$ \begin{align} \frac{\log F(G;\boldsymbol{k})}{\binom{n}{2}} \geq Q(\boldsymbol{k})-\varepsilon.\\[-16pt]\nonumber \end{align} $$

We will show that the conclusion of Theorem 1.4 holds with parameter $\delta $ . If we decrease $\delta $ , then the conclusion of Theorem 1.4 becomes only stronger, so we can assume that $\delta $ satisfies (4.3). Let $(r,\phi ,\mathcal {U}) \in \mathrm {Pop}(G)$ . That is,

(4.5) $$ \begin{align} |\textstyle{\mathop{\mathrm{RL}}^{-1}}((r,\phi,\mathcal{U}))| \geq 2^{-3\varepsilon n^2} \cdot F(G;\boldsymbol{k}). \end{align} $$

We will (for now) suppress the dependence of what follows on $(r,\phi ,\mathcal {U})$ . Thus, there is an equitable partition $V(G) = U_1 \cup \ldots \cup U_r$ , where $1/\gamma _1 \leq r \leq M$ , which is, for all $\chi \in \mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))$ , $\gamma _1$ -regular simultaneously with respect to all graphs $(V(G),\chi ^{-1}(c))$ , with $c \in [s]$ . Furthermore, for each $ij \in \binom {[r]}{2}$ and $c \in [s]$ , we have that $c \in \phi (ij)$ if and only if $\chi ^{-1}(c)[U_i,U_j]$ is $(\gamma _1,\geq \! \gamma _2)$ -regular. Lemma 4.6 and our choice of parameters in (4.3) imply that $\phi ^{-1}(c)$ is $K_{k_c}$ -free for all $c \in [s]$ .

The next claim shows that G gives rise to a feasible solution $(r,\phi ,\boldsymbol {\alpha })$ of Problem $Q_0$ which is almost optimal. Moreover, $\boldsymbol {\alpha }$ is a good approximation of the structure of G, and because $(r,\phi ,\mathcal {U})$ is popular, $\phi $ is a good approximation of many valid colourings of G.

Claim 4.1. Let $\boldsymbol {\alpha }:= ( |U_1|/n, \ldots , |U_r|/n )$ . Then and

$$ \begin{align*}q(\phi,\boldsymbol{\alpha}) \geq Q(\boldsymbol{k})-8\varepsilon + 2\sum_{\stackrel{ij \in \binom{[r]}{2}}{|\phi(ij)| \geq 2}} \left( \frac{e(\overline{G}[U_i,U_j])}{n^2} \right). \end{align*} $$

Moreover, for every $\chi \in \mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))$ , we have

(4.6) $$ \begin{align} \sum_{\stackrel{ij \in \binom{[r]}{2}}{|\phi(ij)|\geq2}}\frac{e(\overline{G}[U_i,U_j])}{n^2} \leq 4\varepsilon ,\end{align} $$

and there are at most $s\gamma _2 n^2$ edges $xy \in E(G)$ where $x \in U_i$ and $y \in U_j$ , such that either $i=j$ , or $i \neq j$ and $\chi (xy) \notin \phi (ij)$ .

Proof of Claim. Consider the following procedure for producing colourings of G whose image under $\mathop {\mathrm {RL}}$ is $(r,\phi ,\mathcal {U})$ .

4.4 Standard colouring procedure

1. 1. Colour ‘atypical’ edges as follows:

   1. (i) Assign arbitrary colours to all edges of G that lie inside some part $U_i$ .

   2. (ii) Select at most $s\gamma _1\binom {r}{2}$ elements of $\binom {[r]}{2}$ and, for each selected pair $ij$ , assign colours to $G[U_i,U_j]$ arbitrarily.

   3. (iii) For every colour $c \in [s]$ and every $ij \in \binom {[r]}{2}$ , colour an arbitrary subset of edges of $G[U_i,U_j]$ of size at most $\gamma _2|U_i||U_j|$ by colour c.

2. 2. Colour most edges according to $\phi $ : for every edge $ij \in \binom {[s]}{2}$ and $x \in U_i$ , $y \in U_j$ where $xy \in E(G)$ and $xy$ is not yet coloured, pick an arbitrary colour from the set $\phi (ij)$ . If $\phi (ij) = \emptyset $ , colour $xy$ with colour $1$ .

This procedure will generate every $\chi \in \mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))$ (as well as some further colourings, which may not even be $\boldsymbol {k}$ -valid). Indeed, this follows from Theorem 4.2, and the statement that $\phi ^{-1}(c)$ is $K_{k_c}$ -free for all $c \in [s]$ .

Let $S_1$ be the number of choices in step 1. We will call those edges which are not coloured according to $\phi $ (i.e. not coloured in step 2) the atypical edges. The number of these is at most

$$ \begin{align*} r\left\lceil \frac{n}{r}\right\rceil^2 + s\gamma_1\binom{r}{2}\left\lceil \frac{n}{r} \right\rceil^2 + s\cdot \binom{r}{2} \cdot \gamma_2\left\lceil \frac{n}{r}\right\rceil^2 < s\gamma_2 n^2, \end{align*} $$

proving the second part of the claim. This also implies that

$$ \begin{align*}S_1 \leq \binom{\binom{n}{2}}{\leq s\gamma_2 n^2}s^{s\gamma_2 n^2} \stackrel{(4.2)}{<} 2^{\varepsilon n^2/3}. \end{align*} $$

Let $S_2$ be the number of choices in step 2 given a fixed choice at step 1. Since $(r,\phi ,\mathcal {U})$ is popular, we have that

(4.7) $$ \begin{align} \log S_2 \stackrel{(4.5)}{\geq} \log \left( 2^{-3\varepsilon n^2} \cdot F(G;\boldsymbol{k}) \right) - \log S_1 \stackrel{(4.4)}{\geq} \binom{n}{2}\left( Q(\boldsymbol{k})-\varepsilon \right) - \frac{\varepsilon n^2}{3} - 3\varepsilon n^2. \end{align} $$

We would now like to bound $S_2$ from above. For each $ij \in \binom {[r]}{2}$ , define $\delta _{ij}$ by setting

$$ \begin{align*}\delta_{ij}n^2 := e(\overline{G}[U_i,U_j]) = |U_i||U_j| - e(G[U_i,U_j]). \end{align*} $$

Now,

(4.8) $$ \begin{align} S_2 \leq \prod_{ij \in \binom{[r]}{2}} \left( \max \{ 1, |\phi(ij)| \} \right)^{|U_i||U_j|-\delta_{ij}n^2}. \end{align} $$

So

(4.9) $$ \begin{align} \nonumber \log S_2 &\leq \sum_{\stackrel{ij \in \binom{[r]}{2}}{\phi(ij) \neq \emptyset}}\left(|U_i||U_j|-\delta_{ij}n^2 \right)\log|\phi(ij)| = n^2 \sum_{\stackrel{ij \in \binom{[r]}{2}}{\phi(ij) \neq \emptyset}}\left(\alpha_i\alpha_j-\delta_{ij} \right)\log|\phi(ij)|\\ &= \frac{n^2}{2} q(\phi,\boldsymbol{\alpha}) - n^2\sum_{\stackrel{ij \in \binom{[r]}{2}}{|\phi(ij)| \geq 2}}\delta_{ij}\log|\phi(ij)|. \end{align} $$

Combining this with (4.7), we have that

$$ \begin{align*}q(\phi,\boldsymbol{\alpha}) \geq Q(\boldsymbol{k}) - 8\varepsilon + 2\sum_{\stackrel{ij \in \binom{[r]}{2}}{|\phi(ij)|\geq 2}} \delta_{ij}, \end{align*} $$

proving the first part of the claim. Every edge that the second part of the claim counts is atypical, and by construction, there are at most $s\gamma _2 n^2$ of these. The final part of the claim follows from (4.7), (4.8) and (4.9). $\Box $

Apply Lemma 3.1 with parameter $2\nu $ to $(r,\phi ,\boldsymbol {\alpha })$ to obtain , such that the following hold: there is a partition $ [r] = V_0 \cup \ldots \cup V_{r^*} $ where for all $i \in [r^*]$ , we have

(4.10) $$ \begin{align} \|\boldsymbol{x}-\boldsymbol{\alpha}^*\|_1 < 2\nu \text{ where }x_i := \sum_{j \in V_i}\alpha_j; \end{align} $$

for all $ij \in \binom {[r^*]}{2}$ , $i' \in V_i$ and $j' \in V_j$ , we have that $\phi (i'j')\subseteq \phi ^*(ij)$ ; and for all $i \in [r^*]$ and every $i'j' \in \binom {V_i}{2}$ , we have $\phi (i'j') \subseteq \{ 1 \}$ .

We would like to transfer this partition to G itself. So for all $0 \leq i \leq r^*$ , let

(4.11) $$ \begin{align} X_i := \bigcup_{j \in V_i}U_j,\ \text{ so } \ V(G) = X_0 \cup \ldots \cup X_{r^*}. \end{align} $$

Then it is easy to see that

(4.12) $$ \begin{align} \boldsymbol{x} = \left( \frac{|X_1|}{n},\ldots,\frac{|X_{r^*}|}{n} \right). \end{align} $$

Now (4.3) and (4.10) imply that, for all $i \in [r^*]$ ,

(4.13) $$ \begin{align} |X_i| \geq (\alpha^*_i-2\nu)n \geq \mu n/2\quad\text{and} \end{align} $$

(4.14) $$ \begin{align} 2\nu> \|\boldsymbol{\alpha}^*-\boldsymbol{x}\|_1 \geq \bigg| \|\boldsymbol{\alpha}^*\|_1 - \|\boldsymbol{x}\|_1 \bigg| = \left| 1 - \left(1-\frac{|X_0|}{n}\right) \right| = \frac{|X_0|}{n}. \end{align} $$

Note that $\boldsymbol {x}$ , $(r^*,\phi ^*)$ , $[r]=V_0 \cup \ldots \cup V_{r^*}$ , $X_0, \ldots , X_{r^*}$ are fixed for every $\chi \in \mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))$ . Claim 4.1 implies that

(4.15) $$ \begin{align} \sum_{i \in [r^*]}(e_G(X_i) - |\chi^{-1}(1)[X_i]|) < 3\nu n^2\quad\text{for all }\chi \in \textstyle{\mathop{\mathrm{RL}}^{-1}}((r,\phi,\mathcal{U})). \end{align} $$

Say that $\chi \in \mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))$ is good if

1. • $\chi ^{-1}(c)[X_i,X_j]$ is $(\gamma _3,|\phi ^*(ij)|^{-1})$ -regular for all $ij \in \binom {[r^*]}{2}$ and $c \in \phi ^*(ij)$ .

Say that $\chi $ is bad otherwise. Let $\mathcal {G}=\mathcal {G}(r,\phi ,\mathcal {U})$ be the set of good colourings $\chi \in \mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))$ . We will show that almost every $\chi $ is good. The idea here is that, in every bad colouring $\chi $ , there is a pair $(X_{i^*},X_{j^*})$ in which some colour graph of $\chi $ is not regular of the correct density. Lemma 4.4 implies that there must be some colour c and large sets $X \subseteq X_{i^*}$ and $Y \subseteq X_{j^*}$ between which $\chi ^{-1}(c)$ has density which is significantly smaller than expected. So there are significantly fewer choices for colouring the edges between this pair, a loss which is quantified by Corollary 4.8.

Consider the following procedure for generating a set of colourings of G which (as we will show) includes every bad colouring.

4.5 Bad colouring procedure

1. 1. Choose at most $3\nu n^2$ edges of G and colour them arbitrarily. For each $i \in [r^*]$ , colour every remaining edge in $G[X_i]$ with colour $1$ .

2. 2. Pick $i^*j^* \in \binom {[r^*]}{2}$ ; $c^* \in \phi ^*(i^*j^*)$ and subsets $X \subseteq X_{i^*}$ and $Y \subseteq X_{j^*}$ of size $\lceil \gamma _3|X_{i^*}| \rceil , \lceil \gamma _3|X_{j^*}|\rceil $ , respectively.

3. 3. Choose at most $(|\phi ^*(i^*j^*)|^{-1}-\gamma _3/2s)|X||Y|$ edges in $G[X,Y]$ and colour them with colour $c^*$ . Arbitrarily colour the remaining edges in $G[X,Y]$ with colours from $\phi ^*(i^*j^*) \setminus \{ c^* \}$ .

4. 4. Arbitrarily colour the remaining edges in $G[X_{i^*},X_{j^*}]$ with colours from $\phi ^*(i^*j^*)$ .

5. 5. For all $ij \in \binom {[r^*]}{2} \setminus \{ i^*j^* \}$ , arbitrarily colour all remaining edges in $G[X_i,X_j]$ using colours from $\phi ^*(ij)$ .

Let $S_{p_1\ldots p_2}$ be the number of choices in steps $p_1$ – $p_2$ , having fixed choices in previous steps, where $[p_1,p_2] \subseteq [5]$ .

Claim 4.2. The number of bad $\chi \in \mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))$ is at most $S_{1\ldots 5}$ .

Proof of Claim.

It suffices to show that for any bad $\chi \in \mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))$ , there is a set of choices in the bad colouring procedure which generates it. So fix such a $\chi $ . Say that an edge $xy$ is contrary if one of the following holds:

1. (a) at least one of $x,y$ is in $X_0$ ;

2. (b) $\chi (xy) \notin \phi ^*(ij)$ , where $i \neq j$ and $x \in X_i$ and $y \in X_j$ ;

3. (c) $x,y \in X_i$ and $xy$ is not coloured with colour $1$ .

By (4.14), the number of edges of type (a) is at most $|X_0|n \leq 2\nu n^2$ . By Claim 4.1, there at most $s\gamma _2 n^2$ edges $xy$ with $x \in U_i$ , $y \in U_j$ , such that either $i=j$ , or $i \neq j$ and $\chi (xy) \notin \phi (ij)$ . Combining this with Lemma 3.1 (iii), we see that the number of edges of types (b) and (c) is at most $s\gamma _2 n^2$ . Therefore, there are at most $3\nu n^2$ contrary edges in G. We colour these edges in step 1.

Since $\chi $ is bad, there is some $i^*j^* \in \binom {[r^*]}{2}$ and $c \in [s]$ , such that $\chi ^{-1}(c)[X_{i^*},X_{j^*}]$ is not $(\gamma _3,|\phi ^*(i^*j^*)|^{-1})$ -regular. Proposition 4.4 applied with $|\phi ^*(i^*j^*)|,X_{i^*},X_{j^*}, \chi ^{-1}(c)[X_{i^*},X_{j^*}],\gamma _3$ playing the roles of $r,A,B,G_c,\varepsilon $ implies that there exists $c^* \in [s]$ , such that there are $X \subseteq X_{i^*}$ , $Y \subseteq X_{j^*}$ with $|X| = \lceil \gamma _3 |X_{i^*}| \rceil $ , $|Y| = \lceil \gamma _3|X_{j^*}|\rceil $ where

$$ \begin{align*}d(\chi^{-1}(c)(X,Y)) \leq |\phi^*(i^*j^*)|^{-1}\left(1-\frac{\gamma_3}{2}\right) \leq |\phi^*(i^*j^*)|^{-1} - \frac{\gamma_3}{2s}. \\[-9pt]\end{align*} $$

So in step 2, we can take $i^*j^* \in \binom {[r^*]}{2}$ , $c^* \in [s]$ and $X \subseteq X_{i^*}$ , $Y \subseteq X_{j^*}$ and choose a suitable colouring in steps 3 and 4, which will generate $\chi [X_{i^*},X_{j^*}]$ . The only uncoloured edges are noncontrary edges in $(X_i,X_j)$ for $ij \in \binom {[r^*]}{2} \setminus \{ i^*j^* \}$ , which can only use colours allowed by $\phi $ , which form a subset of the colours allowed by $\phi ^*$ , by Lemma 3.1. So we can colour them as in $\chi $ in step 5. This proves that the bad colouring procedure will generate $\chi $ . Since $\chi $ was an arbitrary bad colouring, the claim is proved. $\Box $

Therefore, we can give an upper bound for the number of bad colourings by counting the number of steps in the bad colouring procedure.

Claim 4.3. $ |\mathcal {G}| \geq (1-2^{-\gamma _3^5 n^2})|\mathop {\mathrm {RL}}^{-1}((r,\phi ,\mathcal {U}))|. $

Proof of Claim.

By the previous claim, it suffices to bound $S_{1\ldots 5}$ from above. Then

$$ \begin{align*}S_{12} \leq \binom{n^2}{\leq 3\nu n^2} \cdot s^{3\nu n^2} \cdot \binom{r^*}{2} \cdot s \cdot \binom{|X_{i^*}|}{\leq\lceil \gamma_3|X_{i^*}|\rceil}\binom{|X_{j^*}|}{\leq\lceil \gamma_3|X_{j^*}|\rceil} \stackrel{(4.2)}{\leq} 2^{\gamma_3^6 n^2}.\\[-9pt] \end{align*} $$

Let $X \subseteq X_{i^*}$ and $Y \subseteq X_{j^*}$ be chosen at step 2. Now, (4.13) implies that $|X|,|Y| \geq \gamma _3 \mu n/2$ . Using $e(G[X,Y]) \leq |X||Y|$ , we have

$$ \begin{align*} S_{3} &\leq \sum_{i=0}^{\lfloor(|\phi^*(i^*j^*)|^{-1}-\gamma_3/2s)|X||Y|\rfloor}\binom{|X||Y|}{i} \left( |\phi^*(i^*j^*)|-1\right)^{|X||Y|-i}\\ &\leq e^{-\gamma_3^2|X||Y|/12s^2} \cdot |\phi^*(i^*j^*)|^{|X||Y|} \leq e^{-\gamma_3^4\mu^2n^2/48s^2} \cdot |\phi^*(i^*j^*)|^{|X||Y|}.\\[-9pt] \end{align*} $$

where, in the second inequality, we used Corollary 4.8 with $|X||Y|,|\phi ^*(i^*j^*)|,\gamma _3/2s$ playing the roles of $n,k,\delta $ . Therefore

$$ \begin{align*} S_{34} \leq S_3 \cdot |\phi^*(i^*j^*)|^{|X_{i^*}||X_{j^*}| - e(G[X,Y])} \stackrel{(4.6)}{\leq} e^{-\gamma_3^4\mu^2 n^2/48s^2} \cdot s^{4\varepsilon n^2} |\phi^*(i^*j^*)|^{|X_{i^*}||X_{j^*}|}. \end{align*} $$

Let B be the number of bad $\chi $ . Then, by Claim 4.2,

$$ \begin{align*} \log B &\leq \log S_{1\ldots 5} \leq \log \left( 2^{\gamma_3^6n^2} \cdot e^{-\gamma_3^4\mu^2n^2/48s^2} \cdot s^{4\varepsilon n^2} \prod_{ij \in \binom{[r^*]}{2}} |\phi^*(ij)|^{|X_i||X_j|} \right)\\ &\leq \gamma_3^6 n^2 - \frac{\log e \cdot \gamma_3^4 \mu^2 n^2}{48s^2} + \log s \cdot 4\varepsilon n^2 + \sum_{ij \in \binom{[r^*]}{2}} |X_i||X_j|\log|\phi^*(ij)|\\ &\stackrel{(4.12)}{\leq} -4\gamma_3^5 n^2 + \frac{q(\phi^*,\boldsymbol{x})n^2}{2} \leq -4\gamma_3^5 n^2 + \left(q(\phi^*,\boldsymbol{\alpha}^*) + 2\log s\|\boldsymbol{x}-\boldsymbol{\alpha}^*\|_1 \right) \frac{n^2}{2}\\ &\stackrel{(4.10)}{\leq} Q(\boldsymbol{k})\binom{n}{2} - 3\gamma_3^5 n^2, \end{align*} $$

where the penultimate inequality follows from Proposition 2.2 (here, we also define $q(\phi ^*,\boldsymbol {x})$ as in (1.4) even though $x_1+\ldots +x_{r^*} \leq 1$ , as opposed to equal to $1$ ). Therefore

$$ \begin{align*} \log B &\leq Q(\boldsymbol{k})\binom{n}{2}-3\gamma_3^5 n^2 \stackrel{(4.4)}{\leq} \left( \log F(G;\boldsymbol{k}) + \varepsilon\binom{n}{2} \right) - 3\gamma_3^5 n^2\\ &\leq \log F(G;\boldsymbol{k}) - 2\gamma_3^5 n^2 \stackrel{(4.5)}{\leq} \log |\textstyle{\mathop{\mathrm{RL}}^{-1}}((r,\phi,\mathcal{U}))| - \gamma_3^5 n^2. \end{align*} $$

The claim now follows.

We would now like to adjust our partition $V(G) = X_0 \cup \ldots \cup X_{r^*}$ so that $X_0 = \emptyset $ and $|\,|X_i|-\alpha ^*_i n\,| \leq 1$ for all $i \in [r^*]$ , and the other properties we have proved are maintained (with slightly weaker parameters). Clearly

(4.16) $$ \begin{align} \|\boldsymbol{\alpha^*}-\boldsymbol{x}\|_1 = \sum_{x_i < \alpha^*_i}(\alpha^*_i-x_i) + \sum_{x_i \geq \alpha^*_i}(x_i-\alpha^*_i). \end{align} $$

For each $i \in [r^*]$ , let $w_i := \min \{ \alpha ^*_i,x_i \}$ (recall from (4.12) that $x_i = |X_i|/n$ ). Choose $|X_i| - \lfloor w_i n \rfloor $ vertices from each $X_i$ with $i \in [r^*]$ , and choose every vertex in $X_0$ . Distribute them among the remainders of the $X_j$ , $j \in [r^*]$ , to create a new partition $V(G) = Y_1 \cup \ldots \cup Y_{r^*}$ , such that $|\,|Y_i|-\alpha ^*_i n\,| \leq 1$ for all $i \in [r^*]$ . This partition satisfies Theorem 1.4 (i).

Recall Definition 4.9. For every $(r',\phi ',\mathcal {U}') \in \mathrm {Pop}(G)$ , define $\mathcal {G}(r',\phi ',\mathcal {U}')$ in analogy with $\mathcal {G}$ (defined with respect to $(r,\phi ,\mathcal {U})$ ). Since $(r,\phi ,\mathcal {U}) \in \mathrm {Pop}(G)$ chosen at the beginning of the proof was arbitrary,

$$ \begin{align*} \sum_{(r',\phi',\mathcal{U}') \in \mathrm{Pop}(G)} |\mathcal{G}(r',\phi',\mathcal{U}')| &\geq \left(1 - 2^{-\gamma_3^5 n^2} \right) \sum_{(r',\phi',\mathcal{U}') \in \mathrm{Pop}(G)} |\textstyle{\mathop{\mathrm{RL}}^{-1}}((r',\phi',\mathcal{U}'))|\\ &= \left(1 - 2^{-\gamma_3^5 n^2} \right) |\mathrm{Col}(G)| \geq \left(1 - 2^{-\gamma_3^5 n^2} \right)(1-2^{-2\varepsilon n^2}) \cdot F(G;\boldsymbol{k})\\ &\geq \left(1 - 2^{-\varepsilon n^2} \right) \cdot F(G;\boldsymbol{k}), \end{align*} $$

where we used Claim 4.3 and Proposition 4.10 in the first and third inequalities, respectively. Therefore, to prove the remainder of Theorem 1.4, it suffices to show that every $\chi \in \mathcal {G}$ satisfies (ii) and (iii).

So we will now fix $\chi \in \mathcal {G}$ . Then the number of vertices which do not lie in $X_i \cap Y_i$ for any $i \in [r^*]$ is

$$ \begin{align*} n - \sum_{i \in [r^*]}|X_i \cap Y_i| &\leq n - \sum_{x_i < \alpha^*_i}|X_i| - \sum_{x_i \geq \alpha^*_i}\lfloor \alpha^*_i n \rfloor\\ &\leq n + \sum_{x_i < \alpha^*_i} (\alpha^*_i n - |X_i|) + \sum_{x_i \geq \alpha^*_i}(|X_i|-\alpha^*_i n) - \sum_{x_i < \alpha^*_i}\alpha^*_in - \sum_{x_i \geq \alpha^*_i}|X_i| + R(\boldsymbol{k})\\ &\stackrel{(4.16)}{\leq} n + \|\boldsymbol{\alpha}^*-\boldsymbol{x}\|_1 n - \sum_{i \in [r^*]}\alpha^*_i n + R(\boldsymbol{k}) \stackrel{(4.10)}{\leq} 2\nu n + R(\boldsymbol{k}) \leq 3\nu n. \end{align*} $$

Therefore

(4.17) $$ \begin{align} \sum_{i \in [r^*]}|X_i \bigtriangleup Y_i| = \sum_{i \in [r^*]}(|X_i|+|Y_i|-2|X_i \cap Y_i|) \leq 6\nu n. \end{align} $$

So, for all $i \in [r^*]$ , our choice of $\mu $ in (4.3) implies that $|X_i \bigtriangleup Y_i| \leq 6\nu n \leq 7\nu |Y_i|/\mu $ . Now Proposition 4.5 implies that $\chi ^{-1}(c)[Y_i,Y_j]$ is $(\gamma _4,|\phi ^*(ij)|^{-1})$ -regular. So $\chi $ satisfies Theorem 1.4 (ii).

We will now show that $\chi $ satisfies Theorem 1.4 (iii). Assume that

(4.18) $$ \begin{align} \sum_{i \in [r^*]}e_G(Y_i)> \delta n^2> \sqrt{\gamma_6} n^2. \end{align} $$

We have that

(4.19) $$ \begin{align} \sum_{i \in [r^*]}(e_G(Y_i)-|\chi^{-1}(1)[Y_i]|) &= \sum_{i \in [r^*]}(e_G(Y_i)-e_G(X_i)) \end{align} $$

$$\begin{align*} &\phantom{+} \hspace{-4cm} + \sum_{i \in [r^*]}(e_G(X_i)-|\chi^{-1}(1)[X_i]|) + \sum_{i \in [r^*]}(|\chi^{-1}(1)[X_i]| -|\chi^{-1}(1)[Y_i]|) \nonumber \\ &\stackrel{(4.15),(4.17)}{\leq} 2 \cdot 6\nu n\cdot n + 3\nu n^2 = 15\nu n^2. \nonumber \end{align*}$$

For each $i \in [r^*]$ , do the following (independently). Let $M_{\gamma _5}$ be the integer output of Theorem 4.2 applied with $\gamma _5,1,1$ playing the roles of $\varepsilon ,s,M'$ . Recall that $|Y_i| \geq \mu n/2> M_{\gamma _5}$ . Apply Theorem 4.2 to the monochromatic graph $\chi ^{-1}(1)[Y_i]$ , with parameter $\gamma _5$ . Thus, obtain an equitable partition $Y_i = Z_{i,1}\cup \ldots \cup Z_{i,n_i}$ with $1/\gamma _5 \leq n_i \leq M_{\gamma _5}$ which is $\gamma _5$ -regular with respect to $\chi ^{-1}(1)[Y_i]$ . For each $i \in [r^*]$ and $j \in [n_i]$ , we have that $|Z_{i,j}|/|Y_i| \geq M_{\gamma _5}^{-1}/2 \geq \gamma _4/\gamma _5$ . Proposition 4.3 now implies that, whenever $1 \in \phi ^*(ii')$ , we have that $\chi ^{-1}(1)[Z_{i,j},Z_{i',j'}]$ is $(\gamma _5,|\phi ^*(ii')|^{-1})$ -regular. Now, for each $i \in [r^*]$ , we will remove any edge $xy$ from $\chi ^{-1}(1)[Y_i]$ with $x \in Z_{i,j}$ and $y \in Z_{i,j'}$ , such that either $\chi ^{-1}(1)[Z_{i,j},Z_{i,j'}]$ is not $(\gamma _5,\geq \! \gamma _6)$ -regular; or $j=j'$ . Let $G'[Y_i]$ be the graph obtained after these removals. Now,

(4.20) $$ \begin{align} \nonumber \sum_{i \in [r^*]} (e_G(Y_i) - e_{G'}(Y_i)) &\stackrel{(4.19)}{\leq} 15 \nu n^2 + \sum_{i \in [r^*]} \gamma_5\binom{n_i}{2}\left\lceil \frac{|Y_i|}{n_i} \right\rceil^2 + \sum_{i \in [r^*]}\gamma_6 \binom{n_i}{2} \left\lceil \frac{|Y_i|}{n_i} \right\rceil^2\\ \nonumber &\phantom{+} \hspace{2cm} + \sum_{i \in [r^*]}\left\lceil \frac{|Y_i|}{n_i} \right\rceil^2\\ &\leq 15\nu n^2 + \gamma_5 n^2/2 + \gamma_6 n^2/2 + \gamma_5 n^2 \leq \gamma_6 n^2. \end{align} $$

Observe that for every $i \in [r^*]$ , every edge in $G'[Y_i]$ is coloured with colour $1$ by $\chi $ , and lies in a $(\gamma _5, \geq \! \gamma _6)$ -regular pair. Let $J_i$ be the graph on vertex set $[n_i]$ in which $jj'$ is an edge if and only if $\chi ^{-1}(1)[Z_{i,j},Z_{i,j'}]$ is a $(\gamma _5,\geq \!\gamma _6)$ -regular pair. Let $\omega _i := \omega (J_i)$ be the size of a maximal clique in $J_i$ , and let $\boldsymbol {\omega } := (\omega _1,\ldots ,\omega _{r^*})$ .

Claim 4.4. $ \boldsymbol {\omega } \in \{ \boldsymbol {1} \} \cup \{ \boldsymbol {\ell } \in \mathbb {N}^{r^*} : \|\boldsymbol {\ell }\|_1 \leq k_1-1 \}. $

Proof of Claim.

Without loss of generality, we may suppose that, for each $i \in [r^*]$ , $Z_{i,1},\ldots ,Z_{i,\omega _{i}}$ span a clique in $J_i$ . Let H be the graph with vertex set $\{ (i,j) : i \in [r^*], j \in [\omega _{i}] \}$ in which $\{(i,j),(i',j')\}$ is an edge if $i=i'$ ; or $i \neq i'$ and $1 \in \phi^* (ii')$ . Then (recalling Definition 2.4)

$$ \begin{align*}H = (\omega_{1},\ldots,\omega_{r^*})(\phi^*)^{-1}(1). \end{align*} $$

Suppose that H contains a copy of $K_{k_1}$ . Observe that, for every $\{(i,j),(i',j')\} \in E(H)$ , we have that $\chi ^{-1}(1)[Z_{i,j},Z_{i',j'}]$ is $(\gamma _5,\geq \! \gamma _6)$ -regular. Lemma 4.6 and our choice of parameters implies that $G'$ contains a $K_{k_1}$ of colour $1$ , a contradiction. Therefore, $(\omega _1,\ldots ,\omega _{r^*}) \in \mathop {\mathrm {Cap}}((\phi ^*)^{-1}(1),k_1)$ , and Lemma 2.5 proves the claim.

For each $i \in [r^*]$ , let $\ell _i$ be such that $G[Y_i]$ is $\delta $ -far from being $K_{\ell _i}$ -free. Then, by (4.20), $G'[Y_i]$ is $(\delta /2)$ -far from being $K_{\ell _i}$ -free. So we can remove $\delta |Y_i|^2/3$ edges from $G'[Y_i]$ , and there will still be a copy T of $K_{\ell _i}$ . But, by the definition of $G'[Y_i]$ , every edge in T lies in a pair $(Z_{i,j},Z_{i,j'})$ which is $(\gamma _5,\geq \! \gamma _6)$ -regular. Thus, $J_i$ contains a copy of $K_{\ell _i}$ , and so $\ell _i \leq \omega _i$ . Therefore $\boldsymbol {\ell } = \boldsymbol {1}$ , or $\|\boldsymbol {\ell }\|_1 \leq k_1-1$ .

We claim that our assumption (4.18) means that the first alternative cannot hold. Indeed, (4.18) and (4.20) imply that $\sum _{i \in [r^*]}e_{G'}(Y_i) \geq (\sqrt {\gamma _6}-\gamma _6) n^2$ . So there is some $i \in [r^*]$ with $e_{G'}(Y_i) \geq (\sqrt {\gamma _6}-\gamma _6)n^2/R(\boldsymbol {k})> 0$ . Thus, $J_i$ contains at least one edge, and so $\omega _i \geq 2$ . We have proved that $\|\boldsymbol {\ell }\|_1 \leq k_1-1$ as required. This together with Lemma 2.9 further implies that $\boldsymbol {k}$ does not have the strong extension property. This completes the proof that $\chi $ satisfies Theorem 1.4 (iii).

We end this section with a proof of Corollary 1.5, a stability theorem for $\boldsymbol {k}$ with the strong extension property.

Proof of Corollary 1.5.

Let $\delta> 0$ . Let $\varepsilon $ be the output of Theorem 1.4 applied with parameter $\delta ' \leq \delta /(5s),\mu /10$ , where $\mu $ is the output of Lemma 2.8. Now let G be a graph on $n \geq n_0$ vertices, such that $\log F(G;\boldsymbol {k})/\binom {n}{2} \geq Q(\boldsymbol {k})-\varepsilon $ .

Let be such that at least one of the specified $(1-2^{-\varepsilon n^2}) \cdot F(n;\boldsymbol {k})$ colourings is associated with this triple by Theorem 1.4. Let $Y_1, \ldots , Y_{r^*}$ be the partition of $V(G)$ given by (i). Writing $K_{\boldsymbol {\alpha }^*}(n)$ for the n-vertex complete partite graph whose ith part has size $\alpha _i^* n \pm 1$ , we have

(4.21) $$ \begin{align} d_{\text{edit}}(G,K_{\boldsymbol{\alpha}^*}(n)) \leq \sum_{ij \in \binom{[r^*]}{2}}e(\overline{G}[V_i,V_j]) + \sum_{i \in [r^*]}e(G[V_i]). \end{align} $$

Now, Part (ii) of Theorem 1.4 implies that, for all $ij \in \binom {[r^*]}{2}$ , we have that

$$ \begin{align*}e(G[V_i,V_j]) \geq \sum_{c \in \phi^*(ij)}|\chi^{-1}(c)[V_i,V_j]| \geq \sum_{c \in \phi^*(ij)}\left(\phi^*(ij)^{-1}-\delta'\right)|V_i||V_j| \geq \left(1-s\delta'\right)|V_i||V_j|. \end{align*} $$

So

$$ \begin{align*}\sum_{ij \in \binom{[r^*]}{2}}e(\overline{G}[V_i,V_j]) \leq \frac{\delta}{5}\cdot\sum_{ij \in \binom{[r^*]}{2}}|V_i||V_j| \leq \frac{\delta n^2}{10}. \end{align*} $$

Finally, by Part (iii) of Theorem 1.4, $ \sum _{i \in [r^*]}e(G[V_i]) \leq \delta n^2/(5s) $ . Together with (4.21), we have $d_{\text {edit}}(G,K_{\boldsymbol {\alpha }^*}(n)) \leq \delta n^2/5$ . Suppose $(r,\phi ,\boldsymbol {\alpha })$ is another triple associated with one of the specified colourings. Then $\|\boldsymbol {\alpha }-\boldsymbol {\alpha }^*\|_1 \cdot n^2/2 + o(n^2) \leq d_{\text {edit}}(K_{\boldsymbol {\alpha }}(n),K_{\boldsymbol {\alpha }^*}(n)) \leq 2\delta n^2/5$ . Moreover, each entry of $\boldsymbol {\alpha }$ and $\boldsymbol {\alpha }^*$ is at least $\mu $ by Lemma 2.8, and the above inequality can only be satisfied if $r=r^*$ . This completes the proof.

5 Applications

5.1 Recovering some previous results

Previous works [1, 25] have (implicitly) solved the optimisation problem by solving a linear program with real variables $\boldsymbol {x}=(x_1,\ldots ,x_t)$ , such that any corresponds to some feasible $\boldsymbol {x}$ (but not necessarily vice versa). If, for every optimal $\boldsymbol {x}$ , there is some which corresponds to it, then this triple is a basic optimal solution. Unfortunately, for all but a few small cases, the optimal solutions of the linear program do not correspond to a feasible triple.

We define a ‘basic’ linear program, to which we will then add extra constraints.

Problem L: Given a sequence $\boldsymbol {k}:=(k_1,\ldots ,k_s)\in \mathbb {N}^s$ of natural numbers, determine $\ell ^{\mathrm {max}}(\boldsymbol {k}) := \max _{\boldsymbol {d} \in D(\boldsymbol {k})}\ell (\boldsymbol {d})$ , the maximum value of

$$ \begin{align*} \ell(\boldsymbol{d}) := \sum_{2 \leq t \leq s}\log t \cdot d_t \end{align*} $$

over the set $D(\boldsymbol {k})$ of tuples $\boldsymbol {d}=(d_2,\ldots ,d_s)$ , such that $0 \leq d_t \leq 1$ for all $2 \leq t \leq s$ , and $\sum _{2 \leq t \leq s}td_t \leq \sum _{c \in [s]}\left (1-(k_c-1)^{-1}\right )$ .

Say that $\boldsymbol {d}$ which is feasible for Problem L is realisable if there is some with

(5.1) $$ \begin{align} d_t=2\sum_{ij \in \binom{[r]}{2}:|\phi(ij)|=t}\alpha_i \alpha_j\quad \text{for all }2 \leq t \leq s \end{align} $$

and call such a feasible triple a realisation (of $\boldsymbol {d}$ ).

Lemma 5.1. Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}$ . Then $Q(\boldsymbol {k}) \leq \max _{\boldsymbol {d} \in D(\boldsymbol {k})}\ell (\boldsymbol {d})$ . Moreover, the following is true. Suppose that at least one optimal solution $\boldsymbol {d}$ to Problem L is realisable. Then $\max _{\boldsymbol {d}\in D(\boldsymbol {k})}\ell (\boldsymbol {d})=Q(\boldsymbol {k})$ and is the set of all which are realisations of some optimal (realisable) $\boldsymbol {d}$ .

Proof. Let . For all $L \subseteq [s]$ , let $f_L := 2\sum _{ij \in \binom {[r]}{2} :\phi (ij) = L} \alpha _i\alpha _j$ , and for all $2 \leq t \leq s$ , let $d_t:=\sum _{|L|=t}f_L$ . Then $q(\phi ,\boldsymbol {\alpha }) = \ell (\boldsymbol {d})$ . We have

$$ \begin{align*}\sum_{2 \leq t \leq s}td_t = \sum_{L \subseteq [s]}|L|f_L = \sum_{c \in [s]}\sum_{L\subseteq [s]\setminus c}f_{L\cup\{c\}}, \end{align*} $$

so it suffices to show that $\sum _{L \subseteq [s]\setminus \{c\}}f_{L\cup \{c\}} \leq 1-(k_c-1)^{-1}$ for all $c \in [s]$ . For this, let $n \in \mathbb {N}$ and let $H_c:=H^n_c(\phi ,\boldsymbol {\alpha })$ be the graph on n vertices with vertex classes $X_1,\ldots ,X_r$ where $|\,|X_i|-\alpha _i n\,| \leq 1$ for all $i \in [r]$ and $xy \in E(H_c)$ for $x \in X_i$ , $y \in X_j$ if and only if $c \in \phi (ij)$ . Then $H_c$ is $K_{k_c}$ -free since $\phi ^{-1}(c)$ is. Therefore, Turán’s Theorem [28] implies that $ e(H_c) \leq (1 - (k_c-1)^{-1}) n^2/2 $ . Let $c \in [s]$ . So

$$ \begin{align*} \frac{n^2}{2}\sum_{L \subseteq [s]\setminus \{ c \}} f_{L\cup \{ c \}} &= \sum_{L \subseteq [s]\setminus\{c\}} \sum_{\stackrel{ij \in \binom{[r]}{2}}{\phi(ij)=L\cup \{ c \}}}\alpha_i n \cdot \alpha_j n \leq \sum_{L \subseteq [s]\setminus \{ c \}}\sum_{\stackrel{ij \in \binom{[r]}{2}}{\phi(ij)=L\cup \{ c \}}}|X_i||X_j| + 2s^2 n\\ &= \sum_{\stackrel{ij \in \binom{[r]}{2} }{c \in \phi(ij)}} |X_i||X_j| + 2s^2n= e(H_c) + 2s^2 n \leq \left(1-\frac{1}{k_c-1}\right)\frac{n^2}{2} + 2s^2n. \end{align*} $$

Dividing through by $n^2/2$ and taking the limit as $n \rightarrow \infty $ gives the required inequality.

We wish to add more constraints to Problem L. Indeed, without additional constraints, Problem L only yields realisable solutions in some very special cases, for example, $\boldsymbol {k}=(k,k)$ or $\boldsymbol {k}=(k,k,k)$ . A constraint is valid if every $\boldsymbol {d}$ which has a realisation must satisfy the constraint. We use I for a set of constraints, each of the type $\sum _{t \in T}d_t \leq 1-\frac {1}{k-1}$ for some $T \subseteq \{2,\ldots ,s\}$ and integer $k \geq 3$ . We call this constraint a $(T,k)$ -constraint. Let Problem $(L,I)$ be Problem L with the constraints in I added to it, and let $\ell ^{\mathrm {max}}_I(\boldsymbol {k})$ be the optimal solution of Problem $(L,I)$ . We will still discuss realisable solutions $\boldsymbol {d}$ and realisations of $\boldsymbol {d}$ for Problem $(L,I)$ without referring to I when it is clear from the context.

For our purposes, it suffices to consider constraints as follows. Let $T \subseteq \{2,\ldots ,s\}$ . Next, given , let

(5.2) $$ \begin{align} H_{\phi}(T):=\left\{ij\in\binom{[r]}{2}: |\phi(ij)|\in T\right\}. \end{align} $$

Suppose that $H_{\phi }(T)$ is $K_k$ -free for all . Then

$$ \begin{align*}\sum_{t \in T}d_t \leq 1-\frac{1}{k-1} \end{align*} $$

is a valid constraint. This follows as in the proof of Lemma 5.1 from defining $H^n_T(\phi ,\boldsymbol {\alpha })$ to be the n-vertex $\boldsymbol {\alpha }$ -blow-up of $H_{\phi }(T)$ (in analogy with $H^n_c(\phi ,\boldsymbol {\alpha })$ ) and using the observation that

$$ \begin{align*}e(H^{n}_T(\phi,\boldsymbol{\alpha})) = \left(\sum_{t \in T}d_t\right)\frac{n^2}{2}+O(n). \end{align*} $$

Lemma 5.2. Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}$ . Let I be a set of valid $(T,k)$ -constraints, where each $T \subseteq \{2,\ldots ,s\}$ and $k \geq 3$ is an integer. Then $Q(\boldsymbol {k}) \leq \ell ^{\mathrm {max}}_I(\boldsymbol {k})$ . Moreover, the following is true. Suppose that at least one optimal solution $\boldsymbol {d}$ to Problem $(L,I)$ is realisable. Then $\ell ^{\mathrm {max}}_I(\boldsymbol {k})=Q(\boldsymbol {k})$ and is the set of all which are realisations of some optimal (realisable) $\boldsymbol {d}$ . $\Box $

The following lemma will enable us to prove that many of the sequences $\boldsymbol {k}$ for which Problem $Q_2$ has been solved do indeed have the strong extension property.

Lemma 5.3. Let $s \in \mathbb {N}$ and $\boldsymbol {k} \in \mathbb {N}^s$ . Suppose that, for all , we have that

1. (i) $(\phi ^*)^{-1}(c) \cong T_{k_c-1}(r^*)$ and $(k_c-1)|r^*$ for all $c \in [s]$ ;

2. (ii) $|\,|\phi ^*(ij)|-|\phi ^*(i'j')|\,| \leq 1$ for all $ij,i'j' \in \binom {[r^*]}{2}$ and $\boldsymbol {\alpha }^*$ is uniform;

3. (iii) every solution $\boldsymbol {t} := (t_1,\ldots ,t_{r^*}) \in [s]^{r^*}$ of

   (5.3) $$ \begin{align} \prod_{i \in [r^*]} t_i^{\alpha_i^*} = 2^{Q(\boldsymbol{k})} \end{align} $$
   is such that $t_i = 1$ for exactly one value $i \in [r^*]$ .

Then $\boldsymbol {k}$ has the strong extension property.

Proof. Let $r^*+1$ be a new vertex, and let $\phi : \binom {[r^*+1]}{2} \rightarrow 2^{[s]}$ be such that $\phi |_{\binom {[r^*]}{2}} = \phi ^*$ and

(5.4) $$ \begin{align} \mathop{\mathrm{ext}}(\phi,\boldsymbol{\alpha}^*) = Q(\boldsymbol{k}). \end{align} $$

Since $(\phi ^*)^{-1}(c) \cong T_{k_c-1}(r^*)$ for each $c \in [s]$ , we have equally sized sets $P^c_1,\ldots ,P^c_{k_c-1}$ which partition $[r^*]$ and which are the vertex classes of $(\phi ^*)^{-1}(c)$ . Let $\phi '$ be obtained from $\phi $ by maximally enlarging the values on the pairs that contain $r^*+1$ so that $(\phi ')^{-1}(c)$ still does not contain a clique on $k_c$ vertices. Clearly, for each colour c, this can be done independently of the other colours, and every maximal $K_{k_c}$ -free attachment of a new vertex to $(\phi ^*)^{-1}(c)\cong T_{k_c-1}(r^*)$ is to connect the vertex to all but one part of the Turán graph. Thus, for each $c\in [s]$ , there is $j_c \in [k_c-1]$ , such that $c \notin \phi '(\{ x,r^*+1\})$ if and only if $x \in P^c_{j_c}$ . For each $x \in [r^*]$ , let $i_c(x)$ be the unique member of $[k_c-1]$ , such that $x \in P^c_{i_c(x)}$ . So $c \notin \phi '(\{ y,r^*+1 \})$ if and only if $i_c(y) = j_c$ . Then $\mathop {\mathrm {ext}}(\phi ',\boldsymbol {\alpha }^*) \geq \mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }^*)=Q(\boldsymbol {k})$ , so by Proposition 2.6, $\mathop {\mathrm {ext}}(\phi ',\boldsymbol {\alpha }^*) = \mathop {\mathrm {ext}}(\phi ,\boldsymbol {\alpha }^*) = Q(\boldsymbol {k})$ , so $\phi (xy) \neq \phi '(xy)$ only if $|\phi '(xy)| = 1$ . Observe that $\phi '$ is determined completely by $\phi ^*$ and $\{ j_1,\ldots , j_s \}$ .

Define $\boldsymbol {t} \in \mathbb {N}^{r^*}$ by setting $t_i := \max \{ |\phi '(\{ i,r^*+1 \})|,1\}$ . Exponentiating (5.4) implies that $\prod _{i \in [r^*]}t_i^{\alpha ^*_i} = 2^{Q(\boldsymbol {k})}$ . So, by our hypothesis (iii), there exists $x^* \in [r^*]$ , such that $|\phi '(\{ x^*,r^*+1 \})| \leq 1$ and $|\phi '(\{ i,r^*+1 \})| \geq 2$ for all $i \in [r^*] \setminus \{ x^* \}$ . Suppose first that $\phi '(\{ x^*,r^*+1\}) = \emptyset $ . Then $j_c = i_c(x^*)$ for all $c \in [s]$ , and so $r^*+1$ is a twin of $x^*$ , as required.

Therefore, we may assume that $\phi '(\{ x^*,r^*+1\}) = \{ c^* \}$ for some $c^* \in [s]$ . Note that $j_c = i_c(x^*)$ for all $c \in [s]\setminus \{ c^* \}$ . So the attachment of $r^*+1$ is almost the same as that of $x^*$ , and we will compare them to obtain a contradiction. Without loss of generality, assume that $i_{c^*}(x^*) = 1$ and $j_{c^*} = 2$ . Now, for $i \in [k_{c^*}-1]$ and $y \in P^{c^*}_i\setminus \{x^*\}$ , we have that

$$ \begin{align*}\phi'(\{ y,r^*+1 \}) = \begin{cases} \phi^*(x^*y) \cup \{ c^*\} &\mbox{if } i=1. \\ \phi^*(x^*y) \setminus \{ c^*\} &\mbox{if } i=2. \\ \phi^*(x^*y) &\mbox{if } 3 \leq i \leq k_{c^*}-1. \end{cases} \end{align*} $$

Since $\mathop {\mathrm {ext}}(\phi ',\boldsymbol {\alpha }^*) = Q(\boldsymbol {k}) = q_{x^*}(\phi ^*,\boldsymbol {\alpha }^*) = \sum _{x \in [r^*]}\alpha ^*_x \log |\phi ^*(x^*x)|$ by Lemma 2.1, we have that

(5.5) $$ \begin{align} \sum_{y \in P^{c^*}_1 \cup P^{c^*}_2 \setminus \{ x^*\}} \alpha^*_i\log|\phi^*(x^*y)| = \sum_{y \in P^{c^*}_1}\alpha^*_i\log \left(|\phi^*(x^*y)|-1 \right) + \sum_{y \in P^{c^*}_2 \setminus \{ x^*\}} \alpha^*_i\log \left(|\phi^*(x^*y)|+1\right). \end{align} $$

Let $p \in \mathbb {N}$ be such that $|\phi ^*(xy)| \in \{ p,p+1 \}$ for all $xy \in \binom {[r^*]}{2}$ (which exists by (ii)). Note that $p \geq 2$ . Since $(k_{c^*}-1)|r^*$ , we may write $|P^{c^*}_1| =|P^{c^*}_2| = r^*/(k_c-1) =:r$ . Suppose $\ell \leq r-1$ and $k \leq r$ are such that $|\phi ^*(x^*y)| = p$ for $\ell $ elements y in $P^{c^*}_1$ and $|\phi ^*(x^*y)| = p$ for k elements y in $P^{c^*}_2$ . Then, since $\boldsymbol {\alpha }^*$ is uniform, exponentiating (5.5) gives

$$ \begin{align*}p^{\ell}(p+1)^{r-1-\ell}p^k(p+1)^{r-k} = (p+1)^{\ell}(p+2)^{r-1-\ell}(p-1)^k p^{r-k}, \end{align*} $$

that is $p^{\ell +2k-r}(p+1)^{2r-1-k-\ell } = (p+2)^{r-1-\ell }(p-1)^k$ . But $p,p-1$ are coprime, and so are $p+1,p+2$ . So $p|(p+2)$ and $(p-1)|(p+1)$ . Therefore, $p = 2$ , giving

$$ \begin{align*}2^{\ell+2k-r}3^{2r-1-k-2\ell} = 2^{2r-2-2\ell}. \end{align*} $$

So $\ell +2k-r=2r-2-2\ell $ and $2r-1-k-2\ell =0$ , and, hence, $3(k+1) = 6(r-\ell ) = 4(k+1)$ , which implies $k=-1$ , a contradiction.

Therefore, $\phi '(\{ x^*,r^*+1 \}) = \emptyset $ , and $\phi '(\{ x,r^*+1 \}) = \phi ^*(x^*x)$ for all $x \in [r^*]\setminus \{ x^*\}$ . By our earlier observation, $\phi \equiv \phi '$ . Therefore, $r^*+1$ is a twin of $x^*$ , as required.

Proof of Theorem 1.7.

First we must solve Problem $Q_2$ for all specified $\boldsymbol {k}$ . This was implicitly done in [1, 25], but we repeat the arguments here for completeness, and to demonstrate that the arguments are much cleaner and shorter when one is working with optimal solutions rather than regularity partitions of large graphs. We will solve Problem $Q_2$ by solving Problem L, sometimes with some additional valid constraints I, and then applying Lemma 5.2. First, we make some general observations. Suppose $\boldsymbol {d}$ is a feasible solution of Problem L with additional constraints I, each constraint corresponding to some $(T,k)$ , and $\boldsymbol {d}$ has realisation $(r,\phi ,\boldsymbol {\alpha })$ .

1. • Let $T \subseteq \{2,\ldots ,s\}$ and $k \geq 3$ be such that the $(T,k)$ -constraint is valid and in I. Suppose further that $\sum _{t \in T}d_{t}=1-\frac {1}{k-1}$ (that is, there is equality in the $(T,k)$ -constraint). Then there is a partition of $[r]$ into parts $A_1,\ldots ,A_{k-1}$ , such that $\sum _{i \in A_{i'}}\alpha _{i}=\frac {1}{k-1}$ for all $i' \in [k-1]$ , and $ij \in H_{\phi }(T)$ if and only if $i,j$ lie in different parts $A_{i'},A_{j'}$ (recall that $H_{\phi }(T)$ was defined in (5.2)).

2. • If $S \subseteq [r]$ has $|S| \leq k$ , then $2\sum _{ij \in \binom {S}{2}}\alpha _i\alpha _j \leq \sum _{i \in S}\alpha _i\left (1-\frac {1}{k-1}\right )$ .

These follow as in the proof of Lemma 5.1 by taking $\boldsymbol {\alpha }$ -weighted blow-ups of $H_{\phi }(T)$ and $\phi |_{\binom {S}{2}}$ , respectively. For the first assertion, apply the stability theorem of Erdős [6] and Simonovits [26] for the Turán problem, which states that any large n-vertex $K_k$ -free graph with density close to $1-\frac {1}{k-1}$ must be close in edit distance to $T_{k-1}(n)$ . For the second, apply Turán’s theorem.

For ease of notation, we will write $H_{\phi }(t_1,\ldots ,t_{\ell })$ for $H_{\phi }(\{t_1,\ldots ,t_{\ell }\})$ below.

The cases $\boldsymbol {k}\boldsymbol {=(k,k)}$ and $\boldsymbol {k}\boldsymbol {=(k,k,k)}$

We omit $\boldsymbol {k}=(k,k)$ since it is similar to $\boldsymbol {k}=(k,k,k)$ . Problem L for $\boldsymbol {k}=(k,k,k)$ is to maximise $d_2+\log 3\cdot d_3$ subject to $\boldsymbol {d}\geq \boldsymbol {0}$ and $2d_2+3d_3 \leq 3(1-\frac {1}{k-1})$ . It is easy to see that the maximum is $\frac {k-2}{k-1}\log 3$ with unique optimal solution $(d_2,d_3)=(0,1-\frac {1}{k-1})$ . Now, if is a realisation of $\boldsymbol {d}$ , then $H_{\phi }(3) \cong \phi ^{-1}(c)$ for all colours c, so $H_{\phi }(3)$ is $K_k$ -free. Thus, $H_{\phi }(3)$ is a complete $(k-1)$ -partite graph and the sum of $\alpha _{i'}$ over $i'$ in a single part is $\frac {1}{k-1}$ , and in fact each part is a singleton. So $r=k-1$ and $\alpha _i=\frac {1}{k-1}$ for all $i \in [r]$ , and $\phi ^{-1}(c) = H_{\phi }(3) \cong K_{k-1}$ for all colours c.

The case $\boldsymbol {k}\boldsymbol {=(3,3,3,3)}$

We use the argument from [25], which requires an additional constraint. Let $T := \{3,4\}$ . We claim that $H_{\phi }(T)$ is $K_3$ -free for all . Indeed, if it contained a triangle $i_1i_2i_3$ , then there is at most one colour in $[4]$ missing from each $\phi (i_si_t)$ , and, thus, there is one colour in $[4]$ which appears on every edge, a contradiction. Thus, the $(\{3,4\},3)$ -constraint is valid. So adding this constraint to Problem L, we seek to maximise $d_2 + \log 3\cdot d_3 + 2d_4$ subject to $\boldsymbol {d}\geq \boldsymbol {0}$ , $2d_2+3d_3+4d_4 \leq 2$ and $d_3+d_4 \leq \frac {1}{2}$ . This has maximum $\frac {1}{4}+\frac {1}{2}\log 3$ with unique optimal solution $(d_2,d_3,d_4)=(\frac {1}{4},\frac {1}{2},0)$ . Thus, if $(r,\phi ,\boldsymbol {\alpha })$ is a realisation of $\boldsymbol {d}$ , there is a partition of $[r]$ into $A,B$ , such that $H_{\phi }(3,4)=H_{\phi }(3)$ is a complete bipartite graph with parts $A,B$ , and $\sum _{i \in A}\alpha _{i}=\sum _{i\in B}\alpha _i=\frac {1}{2}$ . Since $d_4=0$ , for distinct $i,j \in A$ or $i,j \in B$ , we have $|\phi (ij)|=2$ , and, because $H_{\phi }(2)$ is disjoint from $H_{\phi }(3)$ ,

(5.6) $$ \begin{align} \frac{1}{4}=d_2\stackrel{(5.1)}{=}2\sum_{ij\in\binom{A}{2}}\alpha_{i}\alpha_{j}+2\sum_{ij\in\binom{B}{2}}\alpha_i\alpha_j. \end{align} $$

Without loss of generality, suppose that $|A| \leq |B|$ . Next we show that $|A|=|B|=2$ via a series of claims. Note that $|A|+|B| \geq 4$ , otherwise, $|A|=1$ and $|B|\leq 2$ and the second bullet point above implies that $2d_2 \leq \frac {1}{2}\cdot \frac {1}{2}$ , a contradiction. The first claim is that $|A| \leq |B| \leq 4$ . If not, then there are $a \in A$ and $b_1,\ldots ,b_5 \in B$ . Since $|\phi (ab_j)|=3$ for all $j\in [5]$ , we may assume that $\phi (ab_1)=\phi (ab_2)$ . But then $\phi (b_1b_2)$ , of size $2$ , has nonempty intersection with this set, so $\{a,b_1,b_2\}$ span a monochromatic triangle, a contradiction which proves the claim. The second claim is that if $|A| \geq 2$ , then $|A|=|B|=2$ . If not, then there are $a_1,a_2 \in A$ and $b_1,b_2,b_3 \in B$ . Let S be the multiset obtained by collecting all $\phi (a_1a_2),\phi (a_ib_j), \phi (b_jb_{j'})$ for $i \in [2]$ , $j,j'\in [3]$ . Then $|S|= 6\cdot 3 + 4\cdot 2 = 26$ . So there is $c \in [4]$ which appears in $\phi $ on $\lceil \frac {26}{4}\rceil =7$ pairs among five vertices, so $\phi ^{-1}(c)$ contains a triangle by Turán’s theorem. It remains to rule out the case $|A|=1$ and $|B| \geq 3$ . Since $|B| \leq 4$ , we have $2\sum _{ij \in \binom {B}{2}}\alpha _i\alpha _j \leq \frac {1}{2}\cdot \frac {3}{4}$ , so $d_2 \leq \frac {3}{16}$ , a contradiction. This completes the proof that $|A|=|B|=2$ . So $r=4$ , and (5.6) holds if and only if $\alpha _i=\frac {1}{4}$ for all $i\in [4]$ . We have $\sum _{c \in [4]}|\phi ^{-1}(c)| = \sum _{ij\in \binom {[r]}{2}}|\phi (ij)|=2\cdot 2+ 4\cdot 3=16$ and every $|\phi ^{-1}(c)| \leq 4$ , otherwise, there would be a triangle in colour c. Thus, every $|\phi ^{-1}(c)|=4$ and, moreover, $\phi ^{-1}(c) \cong K_{2,2}=T_2(4)$ . One can check that, up to relabelling, there is a unique way to choose the $\phi ^{-1}(c)$ to attain the given multiplicities (as in Table 2).

Table 2 Basic optimal solutions. In all these results, every basic optimal $(r,\phi ,\boldsymbol {\alpha })$ has $\phi ^{-1}(c) \cong T_{k-1}(r)$ for all $c \in [s]$ and $\boldsymbol {\alpha }$ is the uniform vector of length r. The figure for $k=4$ , $s=4$ is the complement of the optimal solution.

The case $\boldsymbol {k}\boldsymbol {=(4,4,4,4)}$

No additional constraints are necessary in this case. Problem L is to maximise $d_2+\log 3\cdot d_3 + 2\cdot d_4$ subject to $\boldsymbol {d}\geq \boldsymbol {0}$ and $2d_2+3d_3+4d_4 \leq \frac {8}{3}$ . This has maximum $\frac {8}{9}\cdot \log 3$ , attained uniquely by $(d_2,d_3,d_4)=(0,\frac {8}{9},0)$ . Suppose is a realisation of $\boldsymbol {d}$ . Since $d_3$ is the only nonzero entry in $\boldsymbol {d}$ , we have $H_{\phi }(3) \cong K_r$ . We claim $r \leq 9$ . If not, then

$$ \begin{align*}\sum_{c\in[4]}|\phi^{-1}(c)[[10]]|=\sum_{ij\in\binom{[10]}{2}}|\phi(ij)|= 3\cdot\binom{10}{2}=135, \end{align*} $$

so there is some $c \in [4]$ , such that $\phi ^{-1}(c)$ has at least $\lceil \frac {135}{4}\rceil = 34$ edges among $10$ vertices. But by Turán’s theorem, $\phi ^{-1}(c)$ contains a $K_4$ , a contradiction. So $H_{\phi }(3)$ is $K_{10}$ -free and $d_3=\frac {8}{9}$ , so the first bullet point implies that $H_{\phi }(3)$ is a complete $9$ -partite graph and the sum of $\alpha _i$ over all i in a single part is $\frac {1}{9}$ . But $ij \in H_{\phi }(3)$ if and only if $\phi (ij)\neq 0$ , so $r=9$ and $\alpha _i=\frac {1}{9}$ for all $i \in [9]$ . Again, we must have $\phi ^{-1}(c) \cong T_3(9)$ for all $c \in [4]$ , and one can check that there is a unique way, up to relabelling, so choose the $\phi ^{-1}(c)$ to attain the given multiplicities (see Table 2, where the complement of $(r,\phi ,\boldsymbol {\alpha })$ is drawn, that is there is an edge of colour c drawn between i and j if and only if $c \notin \phi (ij)$ ).

The strong extension property

Given $\boldsymbol {k} \in \mathbb {N}^s$ , and , and let $\boldsymbol {t} \in [s]^{r}$ be such that

(5.7) $$ \begin{align} \prod_{i \in [r]} t_i^{\alpha_i} = 2^{Q(\boldsymbol{k})}. \end{align} $$

Using what we have just proved about basic optimal solutions, summarised in Table 2, we have the following.

We can easily solve all of these using Lemma 5.3. Indeed, in every case, $2^{Q(\boldsymbol {k})}$ is a product $p_1\ldots p_{r-1}$ of $r-1$ primes, each larger than $\sqrt {s}$ . If $t_1\ldots t_{r}=2^{Q(\boldsymbol {k})}$ for positive integers $t_1,\ldots ,t_{r}$ , since the $p_i$ are prime, each $t_i$ is a product of $k_i$ elements of $p_1,\ldots ,p_{r-1}$ for some $k_i$ . But $p_jp_k> s$ for any $jk \in \binom {[r-1]}{2}$ , so $k_i \in \{ 0,1\}$ . By the pigeonhole principle, there is exactly one $i \in [r]$ with $t_i = 1$ . Now, every $\boldsymbol {k}$ in the table satisfies the hypotheses of Lemma 5.3. So each of these $\boldsymbol {k}$ have the strong extension property.

5.2 The two colour case

We will now compute $Q(\boldsymbol {k})$ in the case when $s =2$ . When $k \geq \ell $ and $\boldsymbol {k} = (k,\ell )$ , we will show that depends only on $\ell $ but depends on both $k,\ell $ .

Proof of Lemma 1.8.

Let . Since $2 = s \geq |\phi ^*(ij)| \geq 2$ for all $ij \in \binom {[r^*]}{2}$ , we must have that $(\phi ^*)^{-1}(c) \cong K_{r^*}$ for $c=1,2$ . Lemma 2.5 (iii) implies that $r^* \geq \ell -1$ . Therefore, $r^* = \ell -1$ . So we have that

$$ \begin{align*}q(\phi^*,\boldsymbol{\alpha}^*) = 2\sum_{ij \in \binom{[\ell-1]}{2}}\alpha^*_i\alpha^*_j = 1 - \sum_{i \in [\ell-1]}(\alpha^*_i)^2 \leq 1 - \frac{1}{\ell-1}, \end{align*} $$

with equality if and only if $\alpha ^*_i = 1/(\ell -1)$ for all $i \in [\ell -1]$ .

Next we show that $\boldsymbol {k}$ has the extension property. So suppose we can attach a vertex $\ell $ and extend $\phi ^*$ to $\phi $ as in Definition 1.2. Then

$$ \begin{align*}1 - \frac{1}{\ell-1} = \mathop{\mathrm{ext}}(\phi,\boldsymbol{\alpha}^*) = \sum_{i \in [\ell-1] : \phi(i\ell) \neq \emptyset}\frac{\log|\phi(i\ell)|}{\ell-1} \end{align*} $$

so

$$ \begin{align*}\prod_{i \in [\ell-1] : \phi(i\ell) \neq \emptyset}|\phi(i\ell)| = 2^{\ell-2}. \end{align*} $$

The left-hand side is a product of at most $\ell -1 \ 1$ -s and $2$ -s. So there is some $j \in [\ell -1]$ , such that $|\phi (i\ell )| = 2$ for all $i \in [\ell -1] \setminus \{ j \}$ and $|\phi (\ell j)| \leq 1$ . This proves that $\boldsymbol {k}$ has the extension property. If $k=\ell $ , then we must have $\phi (\ell j) = \emptyset $ . But if $k> \ell $ , we can set $\phi (\ell j) = \{ 1 \}$ ; then $\phi ^{-1}(1) \cong K_{\ell }$ and so $\phi \in \Phi _1(\ell ;\boldsymbol {k})$ . So $\boldsymbol {k}$ has the strong extension property if and only if $k=\ell $ .

Theorem 1.9 follows from combining Lemma 1.8 with Theorem 1.4.

6 Concluding remarks

In this paper, we have proved a stability theorem which roughly says that all almost optimal graphs for the Erdős-Rothschild problem are similar in structure to the blow-up of a basic optimal solution with graphs of controlled clique number added inside parts. From this, one can systematically recover almost all known stability results. Unfortunately, Problem $Q_2$ is difficult to solve in general. It would be very interesting to see it solved in further cases. Currently, all known solutions have been obtained by relaxing it to a linear program (which is easy to solve), whose variables are graph densities and whose constraints essentially replace combinatorial constraints such as some graph being $K_k$ -free, with the linear constraint that its density must be at most $1-\frac {1}{k-1}$ , by Turán’s theorem. For some few cases, solutions of this linear program correspond to feasible solutions of Problem $Q_2$ , but, in general, they do not. So one possible avenue to solve it in more cases is to add more sophisticated constraints to decrease the feasible set of the linear program, which is typically much larger than that of Problem $Q_2$ .

In [23], we apply our stability theorem to prove an exact result for every $\boldsymbol {k}$ with the strong extension property, proving a part of Conjecture 1.6. Given Theorem 1.7, this will systematically recover most existing exact results (see Table 1). For the weak extension property, it is harder to obtain an exact result as there is typically a large family of asymptotically extremal graphs, with similar structures, and these graphs could have small parts.
