Unveiling the hinterland: a new type of Hellenistic rural settlement in Crimea

Abstract

Except for some excavated coastal sites, the rural hinterland of ancient Chersonesos on the Tarkhankut Peninsula in north-west Crimea has been understood only from pot scatters recorded during landscape survey and fieldwalking. The city's rural territory (chora) thrived from the fourth to second century BC, but little is known of the identity of its inhabitants, especially those in the inland areas. This paper presents the results of the first systematic excavations in this part of the peninsula. The results challenge previous notions that the territory was occupied by nomadic indigenous communities and reveal that the site shared the fate of the entire Chersonesean chora, meeting a violent end in the early part of the third century BC.

Introduction

Large amounts of quantifiable archaeological data from recent surveys in the Mediterranean and beyond have significantly advanced our understanding of settlement in the ancient countryside. However, problems associated with the interpretation of surface assemblages (Bintliff & Snodgrass 1988; Pettegrew 2001; Foxhall 2004), and limited excavation of Classical and Hellenistic rural sites (Jones et al. 1962, 1973; Keller & Walles 1988; Lohmann 1993a & b; Pentinnen 2001; Adam-Veleni et al. 2003; Galaty et al. 2004; Karamitrou-Mentesidi 2009), leave many questions unresolved. These include: the proportion of the population settled in the hinterland (Finley 1987–1989; Cartledge 1998; Hansen 2006); the structure and productivity of the rural economy; the organisation, social and ethno-cultural composition of labour, and the identity and character of the Classical farmstead—a significant feature of the rural landscape in antiquity (Osborne 1992; Pettegrew 2001; Cherry 2003).

Although most of the collected data still await publication rural landscapes in the colonial settings of southern Italy (Adamesteanu 1974; Carter 2006a; Lanza Catti et al. 2014) and the northern Pontic area (Kryžickij et al. 1989), particularly in Crimea, are notable because numerous sites have been excavated systematically since the 1950s (Strželeckij 1961; Ščeglov 1978, 1987; Kolesnikov 1984; Kovalenko 1991; Stolba 1991; Chtcheglov 1992; Saprykin 1994, 2003; Maslennikov 1998; Daševskaja & Golencov 1999; Hannestad et al. 2002; Solov’ev 2003; Zin’ko 2003; Popova & Kovalenko 2005).

This paper presents the results of the 2010–2011 excavations conducted by the Danish-Russian-Ukrainian Western Crimean Archaeological Project (WCAP) in the Chernomorskoye district of Crimea, which shed new light on some of the vexed questions mentioned above. They are the first systematic excavations in the distant hinterland of the Greek city of Chersonesos, whose rural territory was previously understood exclusively on the basis of surface material from surveys and excavation of selected sites on the coast.

Western Crimea was the agricultural territory (chora) of Tauric Chersonesos from the fourth to second centuries BC, and boasts some of the best-preserved Classical rural landscapes anywhere. Traces of land division are still clearly visible on the Herakleian Peninsula in the vicinity of modern-day Sevastopol; this has generated scholarly interest in the area, particularly in the years following the Russian Empire's annexation of Crimea (Tunkina 2003; Zubar’ 2007). The scientific importance of the area and its significance in defining current cultural identity have been acknowledged by the inscription of the city of Chersonesos and its rural territory on UNESCO's World Heritage List.

Founded at the Quarantine Bay in the late sixth or early fifth century BC (Vinogradov & Zolotarev 1990, 1999; Stojanov 2007; cf. Bujskich 2006), the city was designed on a Hippodamian grid plan (Carter et al. 2000; Carter 2006b; Nikolaenko 2006). Dating to the second half of the fourth century BC and delineated by roads and stone walls, the Greek land division system around Chersonesos, like the city itself, followed an orthogonal grid pattern with equal spacing of one stadion (approximately 210m) along its axis. Labourers were housed in large farms that were distributed throughout the chora and that respected the grid plan.

A colony of Herakleia Pontike, Chersonesos, which Pliny (Natural History 4.33; Mayhoff 1906) called the most polished city throughout the region due to its strict preservation of Greek customs, is the only Doric foundation on the northern shore of the Black Sea. Its agricultural territory spread in a continuous stretch along the western coast of Crimea for over 200km to the peninsula of Tarkhankut, where the city's distant chora was situated (Figure 1). Late Classical and Hellenistic settlements have been investigated in this area, one of the largest and best studied of which is the settlement of Panskoye I (Hannestad et al. 2002; Stolba 2012; Stolba & Rogov 2012). Aerial photographs suggest that, like the immediate chora in the vicinity of Chersonesos, the distant chora was also divided into a system of orthogonal land plots (Ščeglov 1978, 1980; Chtcheglov 1992: 250–58). Yet, with the exception of a few areas on the coast near Cape Oirat and at Vetrenaya Bay, 1.5km north of the district centre of Chernomorskoye, no physical remains of divisions have been verified on the ground so far (see Lisetskii et al. 2013). Unlike the city's immediate chora in south-western Crimea, no contemporary farmhouses have yet been identified inside the proposed area of land division in the inland region of the Tarkhankut Peninsula. Until very recently, inland hill-slopes were viewed as the territory of nomads, who left no settlement traces, only burial mounds.

Figure 1. Map of Crimea showing locations mentioned in the text.

Some of these issues were addressed by the Dzharylgach Survey Project in 2007–2008; Panskoye's hinterland was surveyed using systematic fieldwalking of ploughed areas and unploughed hill-slopes. As expected, the ploughed zone revealed clusters of surface finds, some of which were interpreted as marking the location of sites. Although no excavations were conducted, it is evident that these clusters of surface finds differ in scale from both the area's coastal sites and the farms near to Chersonesos. More intriguing discoveries were made on the largely un-ploughed slopes of Tarkhankut, where the remains of numerous well-preserved stone structures have been identified. Surface finds of Greek pottery suggested that these sites were connected with rural Greek settlements on the coast. However, the nature of this connection remained unclear. Most importantly, these findings challenged the theory that the inland was inhabited by a non-sedentary indigenous population (Guldager Bilde et al. 2007, 2012). The Western Crimean Archaeological Project discovered over 200 new sites, confirming discoveries made by the Dzharylgach Survey Project throughout the Tarkhankut Peninsula (Smekalova & Stolba 2009; Stolba 2012: 312). Although the project did not systematically investigate areas east of Lake Donuzlav, examination of satellite imagery clearly indicates that the pattern continues beyond this natural boundary.

Excavation results

An example of the newly discovered inland settlements is stone structure H1 at Kelsheikh 1, which was fully excavated in 2010 and 2011 (see Stolba et al. 2011). The investigation revealed an ancient farmhouse of a type hitherto unknown in the territory of Chersonesos. The building plan and materials of the structure, as well as the pottery assemblage it contained, deviate from those typical of rural sites in the coastal zone and the farmhouses near Chersonesos. The closest parallels are located on the Kerch Peninsula, several hundred kilometres away (Maslennikov 1998). These results are of the utmost importance to the study of the ancient Greek countryside, especially for understanding the complex relationship between Greek states and indigenous peoples.

Identified in 2009 and named after an abandoned village just 600m north of its location, the settlement of Kelsheikh 1 is situated about 7km south of the district capital of Chernomorskoye, which lies at the mouth of the peninsula's largest ravine, emptying into Uzkaya Bay (Figure 2). Cutting through limestone bedrock, the ravine meanders from the watershed on the plateau in the south-west towards the coast. Steep slopes make it difficult to cross, so it forms a natural east–west communication barrier. In the bottom of the ravine is a sheltered pathway and it is the most convenient place to dig wells in a semi-arid landscape without other freshwater resources.

Figure 2. Digital elevation model showing the location and extent of the gridded fields identified by Ščeglov (1980), and the position of Kelsheikh 1 and principal Greek coastal sites: 1) Bolshoy Kastel; 2) Ocheretay; 3) Karadzha; 4) Karadzha 3 (S12-038); 5) Melovoe; 6) Oirat; 7) Dzhan-Baba; 8) Ak-Saray.

Kelsheikh 1 occupies the gentle western slope of a side branch of the main ravine and has intervisibility with the modern village and the ancient fortified settlement of Chernomorskoye, traditionally associated with Kalos Limen of the written sources (Arrian, Periplus Ponti Euxini 30–31; Silberman 1995; Ptolemy, Geographia 3.5.1; Müller 1883; IOSPE I (2^nd ed.) 401, 352, 353; Latyshev 1916; Talbert 2000: map 23 G2–3; Stolba 2004: 56, note 38). It covers an area of 0.8ha and encloses five similarly orientated structures (houses H1–H5), discernible in the terrain as elevations with suppressed vegetation and stone debris. A low earthen embankment running from east to west delimits the settlement area to the south, and two other low earthen banks run parallel to the ravine from north to south and respect the stone structures (Figure 3). The soil chronology (see Lisetskii et al. 2013; Stolba et al. 2013) suggests they are roughly contemporary with the stone structures. In addition, geomagnetic surveys revealed two waste dumps east of H1 and H4, as well as a number of small circular anomalies that proved to be storage pits; these were not visible on the ground, even after the removal of the topsoil. Apart from house H5, which grave robbers had apparently confused with a tumulus, the site appeared undisturbed. Excavation revealed a nicely dressed square stone—presumably a field marker—found placed upright on top of a large piece of charred beech a few metres east of H5. Its position did not show any apparent relation to the earthen banks. The beech charcoal has a ¹⁴C age of 149±23 BP (1676–1941 AD at 68.2% probability; AAR-15645; calibrated using OxCal v.4.2 and IntCal09 (Bronk Ramsey 2009; Reimer et al. 2009)). House 1 (which is the largest of the structures recorded at the site) was carefully excavated by hand. The fill of the associated storage pits was sampled for pollen and macro-fossils. Pollen and soil samples were also retrieved from above and below the stone debris, as well as from the geological section excavated just outside the house. All artefacts and ecofacts were collected and bagged for 100 per cent sampling, except for plentiful land snails (Helix albescens), which were partially sampled (Snegin et al. 2014). After detailed recording, the remains were preserved in situ by reinstating the topsoil.

Figure 3. Satellite image of Kelsheikh I with identification of structures (houses: H1–H5; embankments: red lines). Image courtesy of the GeoEye Foundation.

Structural remains

Square in plan, with outer dimensions of 11.8 × 11.8m, H1 contained six rooms (R1–4 and R6–7), arranged around a small, irregularly shaped courtyard. On its western side, an extra room (R5) was added to the main structure later, extending the total area to around 152m². The final plan of the structure, revealed by excavation, is the result of piecemeal alterations and repairs during its period of use (Figures 4 & 5).

Figure 4. Photomosaic of house H1 at Kelsheikh I.

Figure 5. Plan of stone structure H1 with room (R) designations and indicating the location of fireplaces, pits (P) and human remains (Sk).

The walls of the building are rarely preserved above one course of masonry placed directly on the ancient topsoil surface. However, the amount of stone debris suggests their original height to be no less than three or four courses (c. 0.5–0.6m) above ground. Wall construction varies in different sections, but generally the masonry is irregularly laid in two rows with smaller stones used for jointing. In some cases, large upright standing slabs were employed. The stones were either unworked or only very roughly chipped. In many cases, pottery fragments were inserted between irregular stones for better fitting and support. Average wall thicknesses matched those recorded at contemporary Greek coastal sites, with outer walls from 0.5 to 0.6m thick, and inner walls about 50–100mm thinner. The south-west wall of the house, at 1.05m thick, was exceptional and was perhaps—as was the case with the embankments—designed to protect the structure from excessive rain-water run-off. Floors were earthen except for one room (R4) that was paved. The building material was limestone, collected or quarried locally. The significant amount of collapsed and in situ stone suggests many tons of stone were required for construction and that building a house was perhaps a collective endeavour involving a large workforce.

Questions regarding the type of superstructure (including roofing) cannot be answered definitively. Floors were roughly the same level as the ancient ground surface; if the roof level matched the height of the walls, even a short person could not have stood upright inside. One might consider a typical mud-brick superstructure on a stone foundation similar to the Greek farms of the coastal zone; however, there are no substantial mud-brick or wooden remains. Alternative types of roofing might have been a wooden construction with some sort of thatching, or even a woven woollen superstructure supported by poles, both of which are known from the ethnographic record (Feilberg 1944; Ethelberg 1966).

The courtyard (c. 37m²) was at the centre of the final building. The entrance leading to it was located in the south-western wall of the house, 1.25m from its western corner. In front of the entrance, outside the building, was a stone pavement measuring 0.95 × 0.80m. The doorway had a threshold made of large and middle-sized stones, and was 1.1m wide. Except for R2, R6 and R5, all rooms could be entered directly from the courtyard.

The largest room (R1) measured 5.20 × 2.85m (14.8m²) and must have served as a living unit. It formed the eastern side of the building together with R2, a small side room. The only regular internal fireplace was situated in R1, providing warmth and shelter in winter. It was 0.8m wide, centrally located and fiercely scorched; it had a puddled-clay hearth and a kerb, constructed of stones, around one corner. A broken handmade pot was found in situ within the hearth deposits, along with a single fragment of amphora. Two other crushed handmade pots were found standing on the floor surface close to the fireplace. No charcoal was recovered, indicating that alternative fuel types, such as livestock dung, were used; dung was utilised in the area in later periods and is well attested ethnographically (Radde 2005: 392–93; Çelebi 2008: 47).

Room 4 was located opposite R1 on the south-west side of the building. It measured 2.35 × 1.75m, was self-contained and could be accessed via a doorway in the north-west wall that was 0.7m wide. Outside this doorway was a small pavement, 1.0 × 1.3m in size. Room 4 also had a paved floor; rectangular holes in the paving in the eastern and northern corners of the room may suggest the presence of wooden structures. Aside from the handmade pots from R1, the only pottery recorded in the house that might have been intact or semi-intact at the time of destruction were two fragmentary, heavily re-used Chersonesean amphorae found in R4. Traces of outdoor fireplaces were documented from two locations adjacent to R4 and it is likely that this room was used as a kitchen.

Like R4, the tiny room R3, in the south side of the building, was also self-contained. In its north-east corner, a small table, measuring 1.0 × 0.3m and made from a single course of stones, was built against the wall. In the western part of the room, a cist-like stone structure that was sunk into the ground overlay an earlier storage pit. As was the case with the interconnecting R6 and R7 (located in the northern part of the building and with a shared single entrance from the courtyard), it is likely that R3 had some ancillary household function. However, the exact purpose remains unknown. The same is true for R5, an asymmetrical 2.8 × 3.2m annex that could be entered through a 0.8m-wide doorway in its south-western wall and contained a 2m-long stone pier that partitioned the room.

Storage pits and rubbish dump

A rubbish dump was located about 5m east of H1. This ashy mound was not clearly defined in the terrain, but its light grey and very fine-grained soil differed markedly from the surroundings. Like the fireplaces, it contained no traces of charcoal. The dump included many artefacts (primarily pottery), some sherds of which fit together with fragments retrieved from the fill of nearby storage pit 1.

Pits 1 and 2, originally grain stores that later became dumps, are located 2–5m east of H1. Pit 1 was found 0.4m below the modern ground surface; it was a circular pit with a diameter of 0.95m. Pear-shaped in section, it widened towards the flattened bottom to 1.3m in diameter at a depth of approximately 1m. In two places, the walls of the pit were pierced by animal burrows. The smaller burrow was blocked with a stone, suggesting that the pit was repaired before finally falling out of use. The fill contained fragments of imported and handmade pottery, as well as animal bones and some fragmented and intensively scorched mud brick and stones. Flotation of the soil from the bottom of the pit recovered several cereal grains, among which barley (Hordeum vulgare) and rye (Secale sp.) were identified.

Pit 2 was discovered at about the same depth as Pit 1. It was bell-shaped, 1.75m deep and 2.15m wide at its bottom, and contained fragments of burned mud brick and household waste. Palaeobotanical finds included cereal grains from soft wheat (Triticum aestivum), barley and rye, as well as weed grasses. Numerous animal bones, largely deposited in the lowest fill, suggest rubbish may have been sorted prior to dumping, and also account for the virtual absence of faunal material on the surface of the site. The assemblage is dominated by sheep and goat. Cattle and horse are also documented, as is a single fragment of crab claw.

Two more pits were found inside structure H1 in R1 and R3. The pit in R1 had a depth of 0.4m with an upper diameter of 1m; the pit in R3 was 0.84m deep and had a diameter of 1.33m at its bottom. Although the pits contained some household waste, no bones or palaeobotanical finds were recovered. Despite the absence of diagnostic finds, both pits stratigraphically pre-date the construction of the house.

Human remains

At several locations in and around the house, uninterred human skeletal remains were uncovered, suggesting that use of the site ended suddenly and dramatically, possibly as a result of a raid by nomads. In all but one case, the skeletons were disarticulated and incomplete, presumably due to animal scavenging. The collapse of the building made it difficult to distinguish between fractures caused by falling stone debris and those caused by violence. Nonetheless, despite generally poor bone preservation, lethal fractures were observed on Skeleton 1, found in R1 (Figure 6). The skeleton, which had a damaged parietal bone in the cranium, belonged to a sub-adult aged between 10 and 12 years. Two round, hollow stone amulets, similar to those used to ward off the evil eye (Stolba 2009), were found close to the skeleton.

Figure 6. Skeleton 1 from house H1 at Kelsheikh I. Photograph by V.F. Stolba.

Skeleton 2, found in the south-eastern part of the courtyard, was poorly preserved. However, traces of animal teeth-marks were visible on the humerus. The bones appear to have been those of a male, aged between 30 and 35 years. Fragments of a third skeleton found outside the building, close to its north-western wall, probably also belonged to an adult male. Individual pieces of tibiae, as well as one femur and one fibula, found in the courtyard suggest that a fourth person was present (Skeleton 4), but these bones could have been dragged to this location from elsewhere and belong to one of the other skeletons.

The finds assemblage

Compared with the abundance of ceramic material found at Greek habitations along the coast, the finds from H1 are very poor and reflect a modest daily life (Figure 7). The meagre amount of imported pottery is striking. Except for single fragments of black-glazed Attic ware, the assemblage mainly represents Chersonesean workshop productions. Imported plain and fine ware survives only in small sherds, and was found in the storage pits; it is clear that this pottery was not in use in the final days of occupation. Two fragmentary Chersonesean amphorae found in R4 show traces of wear and repair. Larger fragments of wine jars were mainly used as building material in the walls. The assemblage is dominated by handmade ware representing local Scythian and Kizil-Koba (Taurian) types (Figure 7, nos. 9–11). As one would expect, refuse areas (Pits 1 and 2 and the ash heap) contained higher concentrations of finds than the living floor (except the living room R1).

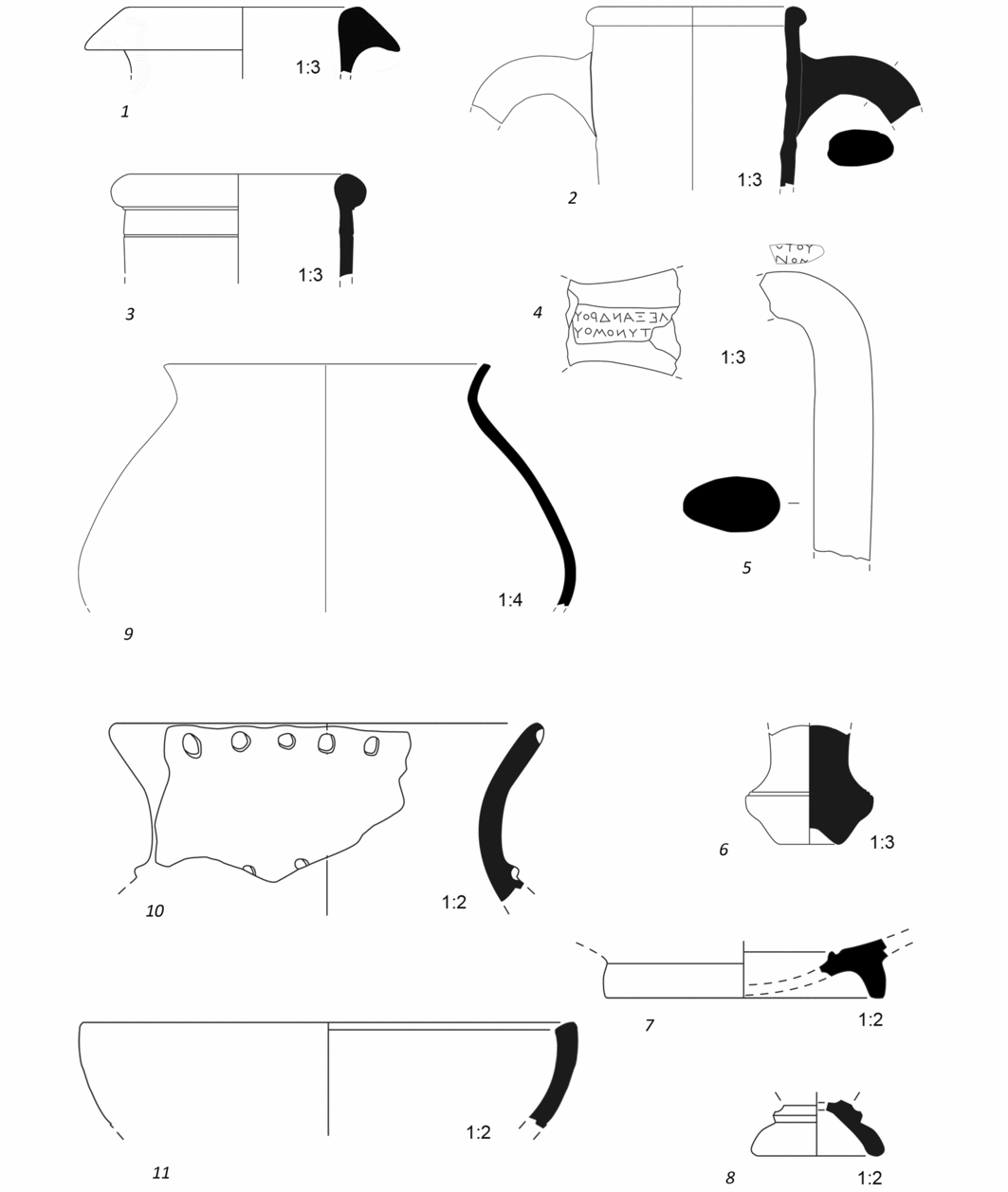

Figure 7. Pottery finds from house H1 at Kelsheikh I.

The scarcity of metal is another distinctive feature of the finds assemblage. A single lead spindle whorl found in R1, a few fragments of iron knives from a pit and a single bronze arrowhead of the so-called Scythian type found in the dumping area were the only metal objects recovered. Despite the absence of other metal tools and farming implements, the presence of grinding stones re-used as building material, storage pits and charred grains, suggest that the production and processing of cereals was a key part of the farm's economic activity.

It could be argued that the site appears impoverished because of subsequent scavenging or looting. However, this does not explain the paucity of imported wares at H1 in contrast to the considerably richer pottery assemblages of the coastal sites destroyed at the same time. In terms of wheel-turned pottery, only amphora fragments are abundant. The scarcity of other types of pottery (such as table and cooking ware) was compensated for by handmade bowls and pots, the percentages of which are noticeably higher than at the Greek farms on the coast (Stolba 2012: 340, tab. 1).

A mushroom rim of a south-eastern Aegean amphora used as wall-building material (Figure 7, no. 1) provides a terminus post quem for construction in the second half of the fourth century BC (see Lawall et al. 2010: 371). However, a more accurate date (c. 325–300 BC) is suggested by the toe of a Chersonesean Type-ΙB amphora (cf. Monachov 1989: pl. XXII.27), which was used as building material in the foundations of the house. Most of the dateable pottery comes from the same period, with a limited supply after 300 BC. The latest reliably dateable finds are a black-glazed Attic fish plate from around 310–290 BC (Rotroff 1997: nos. 711–14) and fragments of Chersonesean amphorae stamped with the names of astynomoi (city magistrates) Alexander and Herodotos, who were active in 321–304 and 303–290 BC respectively (Stolba 2005a: 168–69; cf. Kac 2007: 326) (Figure 7, nos. 7 and 4 & 5 respectively).

Site chronology

The evidence from House 1 at Kelsheikh limits its lifetime to probably no more than 50 years of use. The earliest phase of the site (represented by storage pits) seems to coincide with the establishment of Chersonesos’ distant chora, around 360 BC (Stolba 1991: 83, 2005a: 158–60, 2012: 318). Stratigraphy suggests that all pits, except perhaps 1 and 2, were filled shortly before the construction of H1. The stone building was constructed only decades later, simultaneously with buildings U6, U2, U13 and U14 at Panskoye I, Horizon A (Hannestad et al. 2002: 281; Stolba 2012: 319–20), which perhaps reflects a new wave of Chersonesean migration to north-western Crimea. Similar delayed emergence of stone dwellings can also be traced in the chorai of other Greek states in the northern Black Sea region such as Olbia and Theodosia (Kryžickij et al. 1989; Gavrilov 2004). The history of house H1, and the site, appears closely interwoven with that of the Chersonesean countryside. The end of H1 (and of Kelsheikh 1) is concurrent with the destruction and abandonment of the city's chora around 270 BC. The palaeoenvironmental data from Lake Saki suggest a climatic deterioration, which may have been responsible for the collapse of Greek economies in the area in the early third century BC. Attacks by nomads, which resulted in the final destruction of Greek rural territories, evidently only aggravated a general crisis (Stolba 2005b & c, 2014).

Conclusion

Surface finds at other Kelsheikh 1 structures and the extensive survey evidence from similar settlements in the area suggest these were contemporary with H1. Dating and provenance of pottery from archaeological surveys and excavations, as well as numerous Chersonesean coins found by illicit metal detecting in the survey area link the inhabitants of Kelsheikh 1, and similar newly discovered settlements, to the Greek expansion. Even though the architecture of H1 is unusual in this region, the original layout, linear dimensions and building technique are most likely to have been inspired by Greek traditions, as suggested by parallels from the coastal sites of the Tarkhankut Peninsula. The evidence from the nearby settlement and necropolis of Panskoye I strongly suggests that the population of this settlement, and possibly that of many other sites in the distant chora of Chersonesos, was of mixed character; along with Greek farmers it is likely to have included Scythians and Taurians (cf. Stolba 2011; Stolba & Rogov 2012). Whether indigenous (Taurian and/or Scythian) or mixed (Greek and non-Greek), it is likely that the inhabitants of Kelsheikh 1 worked in the tilled fields, serving the Chersonesean export of grain. However, this was not their only occupation. Unlike the inhabitants of the nearby chora, they lived outside the land division system, allowing their livestock to pasture in the untilled parts of the area. In spite of natural socio-political parallels with the Herakleian Mariandynoi and helots of Messenia and Laconia (Lotze 1959; Singor 1993; Luraghi & Alcock 2003; Luraghi 2009), the social and juridical status of this population remains unknown. Moreover, archaeological exploration of the remaining parts of this territory will be necessary to assess adequately the whole range of the settlement's economic activities. However, even at such an early stage, it is apparent that, in combination with our surveys, the evidence from Kelsheikh 1 offers deeper and more varied insight into the complex organisation of the Chersonesean rural territory, the multi-ethnic composition of its population and the daily life of the Hellenistic Greek countryside on the northern shore of the Black Sea.
