A review of blind source separation methods: two converging routes to ILRMA originating from ICA and NMF

Abstract

This paper describes several important methods for the blind source separation of audio signals in an integrated manner. Two historically developed routes are featured. One started from independent component analysis and evolved to independent vector analysis (IVA) by extending the notion of independence from a scalar to a vector. In the other route, nonnegative matrix factorization (NMF) has been extended to multichannel NMF (MNMF). As a convergence point of these two routes, independent low-rank matrix analysis has been proposed, which integrates IVA and MNMF in a clever way. All the objective functions in these methods are efficiently optimized by majorization-minimization algorithms with appropriately designed auxiliary functions. Experimental results for a simple two-source two-microphone case are given to illustrate the characteristics of these five methods.

I. INTRODUCTION

The technique of blind source separation (BSS) has been studied for decades [1–5], and the research is still in progress. The term “blind” refers to the situation that the source activities and the mixing system information are unknown. There are many diverse purposes for developing this technology even if audio signals are focused on, such as (1) implementing the cocktail party effect as an artificial intelligence, (2) extracting the target speech in a noisy environment for better speech recognition results, (3) separating each musical instrumental part of an orchestra performance for music analysis.

Various signal processing and machine learning methods have been proposed for BSS. They can be classified using two axes (Fig. 1). The horizontal axis relates to the number M of microphones used to observe sound mixtures. The most critical distinction is whether M=1 or M ≥ 2, i.e., a single-channel or multichannel case. In a multichannel case, the spatial information of a source signal (e.g., source position) can be utilized as an important cue for separation. The second critical distinction is whether the number M of microphones is greater than or equal to the number N of source signals. In determined (N=M) and overdetermined (N<M) cases, the separation can be achieved using linear filters. For underdetermined (N>M) cases, one popular approach is based on clustering, such as by the Gaussian mixture model (GMM), followed by time-frequency masking [6–12]. The vertical axis indicates whether training data are utilized or not. If so, the characteristics of speech and audio signals can be learned beforehand. The learned knowledge helps to optimize the separation system, especially for single-channel cases where no spatial cues can be utilized. Recently, many methods based on deep neural networks (DNNs) have been proposed [13–21].

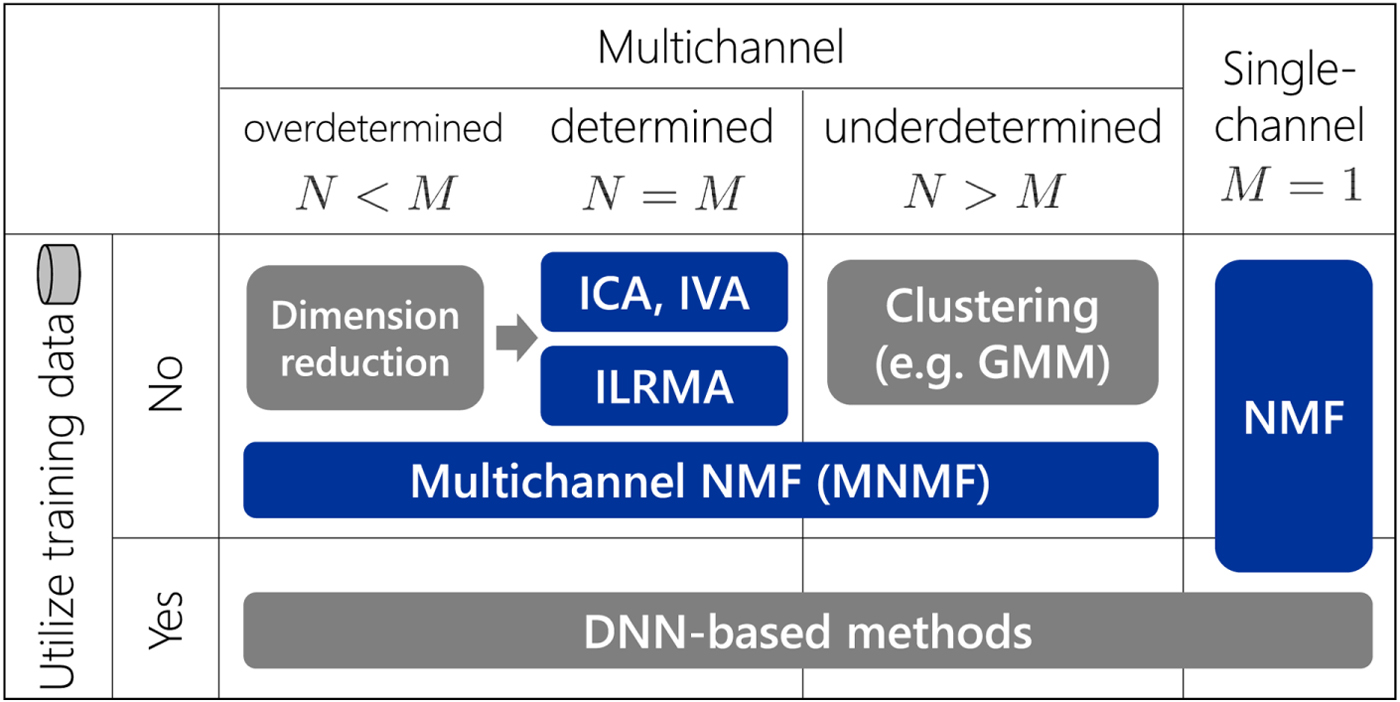

Fig. 1. Various methods for blind audio source separation. Methods in blue are discussed in this paper in an integrated manner.

Among the various methods shown in Fig. 1, this paper discusses the methods in blue. The motivation for selecting these methods is twofold: (1) As shown in Fig. 2, two originally different methods, independent component analysis (ICA) [3,4,22–29] and nonnegative matrix factorization (NMF) [30–36], have historically been extended to independent vector analysis (IVA) [37–46] and multichannel NMF [47–54], respectively, which have recently been unified as independent low-rank matrix analysis (ILRMA) [55–60]. (2) The objective functions used in these methods can effectively be minimized by majorization-minimization algorithms with appropriately designed auxiliary functions [36,61–68]. With regard to these two aspects, all the selected methods are related and worth explaining in a single review paper.

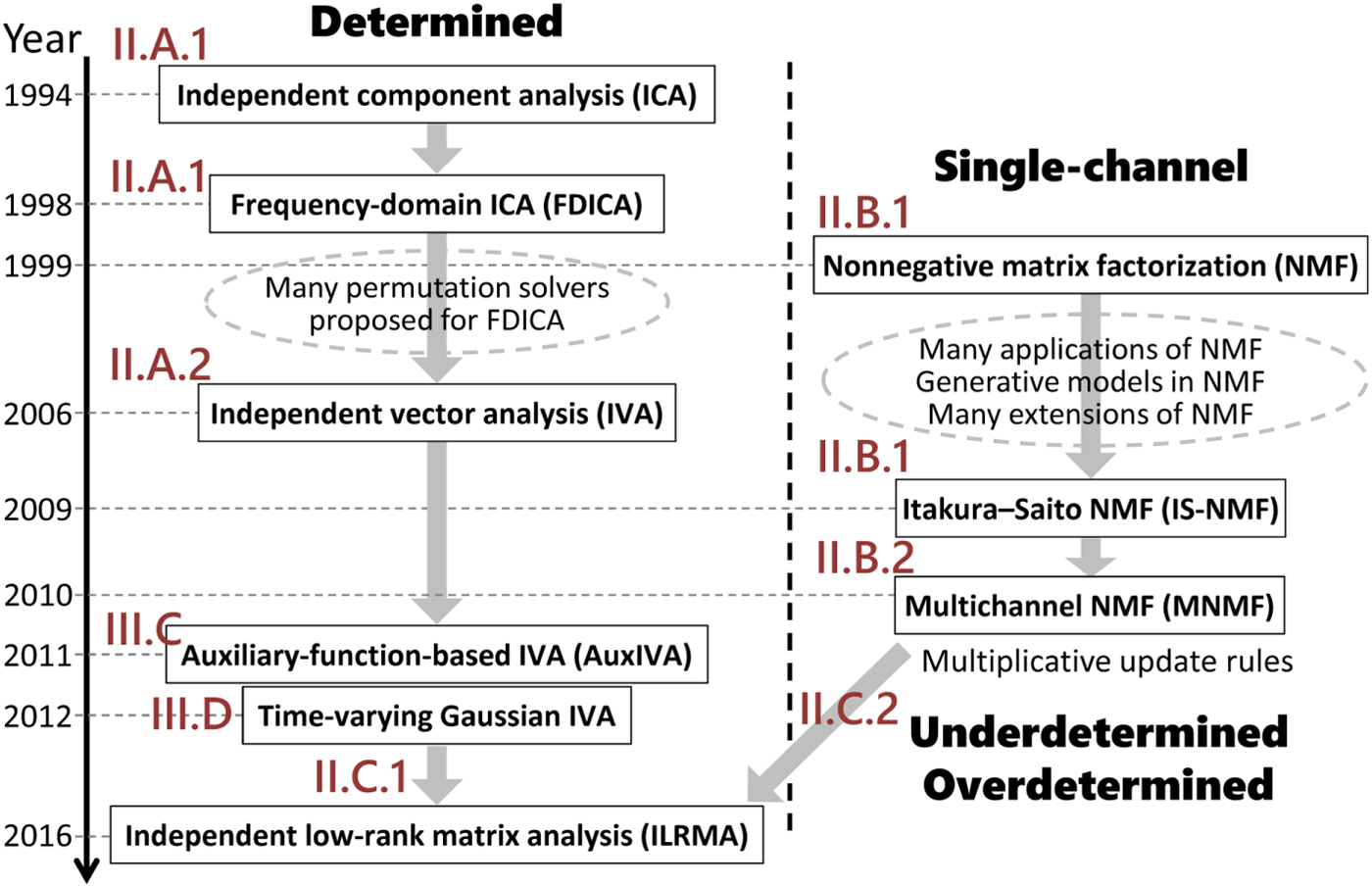

Fig. 2. Historical development of BSS methods.

Although the mixing situation is unknown in the BSS problem, the mixing model is described as follows. Let s ₁, …, s _N be N original sources and x ₁, …, x _M be M mixtures at microphones. Let h _mn denote the transfer characteristic from source s _n to mixture x _m. When h _mn is described by a scalar, the problem is called instantaneous BSS and the mixtures are modeled as

(1)$$x_m(t) = \sum_{n=1}^N h_{mn} s_n(t), \quad m=1, \ldots, M, $$

where t represents time. When h _mn is described by an impulse response of L samples that represents the delay and reverberations in a real-room situation, the problem is called convolutive BSS and the mixtures are modeled as

(2)$$x_m(t) = \sum_{n=1}^N \sum_{\tau=0}^{L-1} h_{mn}(\tau) s_n(t-\tau), \quad m=1,\ldots, M.$$

To cope with a real-room situation, we need to solve the convolutive BSS problem.

Although there have been proposed time-domain approaches [69–75] to the convolutive BSS problem, a more suitable approach for combining ICA and NMF is a frequency-domain approach [76–85], where we apply a short-time Fourier transformation (STFT) to the time-domain mixtures (2). Using a sufficiently long STFT window to cover the main part of the impulse responses, the convolutive mixing model (2) can be approximated with the instantaneous mixing model

(3)$$x_{ij,m} = \sum_{n=1}^N h_{i,mn} s_{ij,n}, \quad m=1,\ldots, M$$

in each frequency bin i, with time frame j representing the position index of each STFT window. Table 1 summarizes the notations used in this paper.

Table 1. Notations.

The data structure that we deal with is a complex-valued tensor with three axes, frequency i, time j, and channel (mixture m or source n), as shown on the left-hand side of Fig. 3. Until IVA was invented in 2006, there had been no clear way to handle the tensor in a unified manner. A practical way was to slice the tensor into frequency-dependent matrices with time and channel axes, and apply ICA to the matrices. Another historical path is from NMF, applied to a matrix with time and frequency axes, to multichannel NMF. These two historical paths merged with the invention of ILRMA, as shown in Figs 2 and 3.

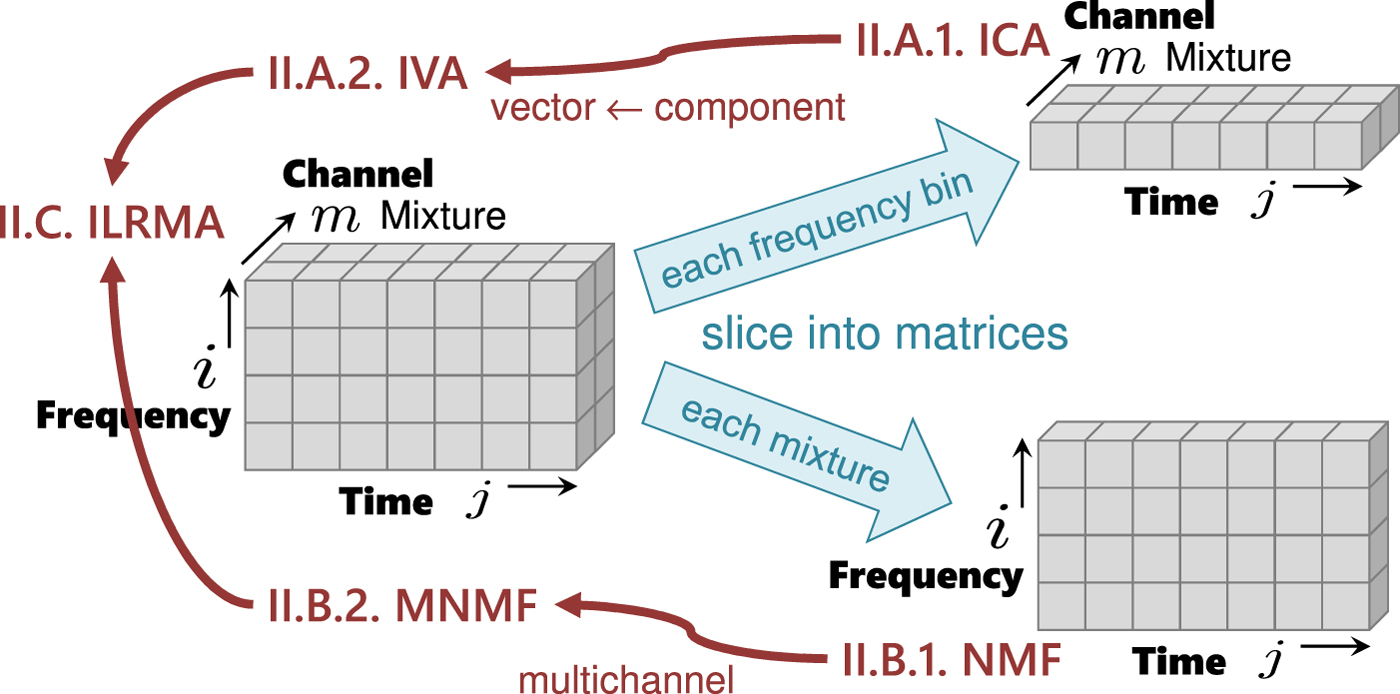

Fig. 3. Tensor and sliced matrices.

The rest of the paper is organized as follows. In Section II, we introduce probabilistic models for all the above methods and define corresponding objective functions. In Section III, we explain how to optimize the objective functions based on majorization-minimization by designing auxiliary functions. Section IV shows illustrative experimental results to provide an intuitive understanding of the characteristics of all these methods. Section V concludes the paper.

II. MODELS

A) ICA and IVA

In this subsection, we assume determined (N=M) cases for the application of ICA and IVA. For overdetermined (N<M) cases, we typically apply a dimension reduction method such as principal component analysis to the microphone observations as a preprocessing [86,87].

1) ICA

Let the sliced matrix depicted in the upper right of Fig. 3 be ${\bf X}_i = \{{\bf x}_{ij}\}_{j=1}^J$ with x_ij = [x _ij,1, …, x _ij,M]^T. ICA calculates an M-dimensional square separation matrix W_i that linearly transforms the mixtures x_ij to source estimates y_ij = [y _ij,1, …, y _ij,N]^T by

(4)$${\bf y}_{ij} = {\bf W}_i\,{\bf x}_{ij}.$$

The separation matrix W_i can be optimized in a maximum likelihood sense [26]. We assume that the likelihood of W_i is decomposed into time samples

(5)$$p({\bf X}_i \vert {\bf W}_i) = \prod_{j=1}^J p({\bf x}_{ij}\vert {\bf W}_i).$$

The complex-valued linear operation (4) transforms the density as

(6)$$p({\bf x}_{ij}\vert {\bf W}_i) = \vert {\rm det}\,{\bf W}_i\vert^2\, p({\bf y}_{ij}).$$

We assume that the source estimates are independent of each other,

(7)$$p({\bf y}_{ij}) = \prod_{n=1}^N p(y_{ij,n}).$$

Putting (5)–(7) together, the negative log-likelihood ${\cal C} ({\bf W}_i) = -\log p({\bf X}_i\vert {\bf W}_i)$, as the objective function to be minimized, is given by

(8)$${\cal C}({\bf W}_i) = \sum_{j=1}^J\sum_{n=1}^N G(y_{ij,n}) -2J\log \vert {\rm det}\,{\bf W}_i\vert,$$

where G(y _ij,n) = −log p(y _ij,n) is called a contrast function. In speech/audio applications, a typical choice for the density function is the super-Gaussian distribution

(9)$$p(y_{ij,n}) \propto \exp \left( -\displaystyle{\sqrt{\vert y_{ij,n}\vert ^2+\alpha} \over \beta}\right),$$

with nonnegative parameters α and β. How to minimize the objective function (8) will be explained in Section III.

By applying ICA to the every sliced matrix, we have N source estimates for every frequency bin. However, the order of the N source estimates in each frequency bin is arbitrary, and therefore we have the so-called permutation problem. One approach to this problem is to align the permutations in a post-processing [11,88]. This paper focuses on tensor methods (IVA and ILRMA) as another approach that automatically solves the permutation problem.

2) IVA

Figure 4 shows the difference between ICA and IVA. In ICA, we assume the independence of scalar variables, e.g., y _ij,1 and y _ij,2. In IVA, the notion of independence is extended to vector variables. Let us define a vector of source estimates spanning all frequency bins as ${\bf y}_{j,n} = [y_{1j,n},\ldots ,y_{Ij,n}]^{\ssf T}$. The independence among source estimate vectors is expressed as

(10)$$p(\{{\bf y}_{j,n}\}_{n=1}^N) = \prod_{n=1}^N p({\bf y}_{j,n}) .$$

We now focus on the left-hand side of Fig. 3. The mixture is denoted by two types of vectors. The first one is channel-wise ${\bf x}_{ij} = [x_{ij,1},\ldots , x_{ij,M}]^{\ssf T}$. The second one is frequency-wise ${\bf x}_{j,m} = [x_{1j,m},\ldots ,x_{Ij,m}]^{\ssf T}$. The source estimates are calculated by (4) using the first type for all frequency bins i = 1, …, I. A density transformation similar to (6) is expressed using the second type as follows:

(11)$$p(\{{\bf x}_{j,m}\}_{m=1}^M\vert {\cal W}) = p(\{{\bf y}_{j,n}\}_{n=1}^N) \prod_{i=1}^I \vert {\rm det}\,{\bf W}_i\vert ^2,$$

with ${\cal W} = \{{\bf W}_i\}_{i=1}^I$ being the set of separation matrices of all frequency bins. Similarly to (5), the likelihood of ${\cal W}$ is decomposed into time samples as

(12)$$p({\cal X}\vert {\cal W}) = \prod_{j=1}^J p(\{{\bf x}_{j,m}\}_{m=1}^M\vert {\cal W}),$$

where ${\cal X} = \{\{{\bf x}_{j,m}\}_{m=1}^M\}_{j=1}^J$. Putting (10)–(12), together, the objective function, i.e., the negative log-likelihood, ${\cal C} ({\cal W}) = -\log p({\cal X}\vert {\cal W})$ is given as

(13)$${\cal C} ({\cal W}) = \sum_{j=1}^J\sum_{n=1}^N G({\bf y}_{j,n}) -2J\sum_{i=1}^I\log \vert {\rm det}\,{\bf W}_i\vert,$$

where G(y_j,n) = −log p(y_j,n) is again a contrast function. A typical choice for the density function is the spherical super-Gaussian distribution

(14)$$p({\bf y}_{j,n}) \propto \exp\left(- \displaystyle{\sqrt{\sum_{i=1}^I \vert y_{ij,n}\vert ^2+\alpha}\over \beta} \right),$$

with nonnegative parameters α and β. How to minimize the objective function (13) will be explained in Section III.

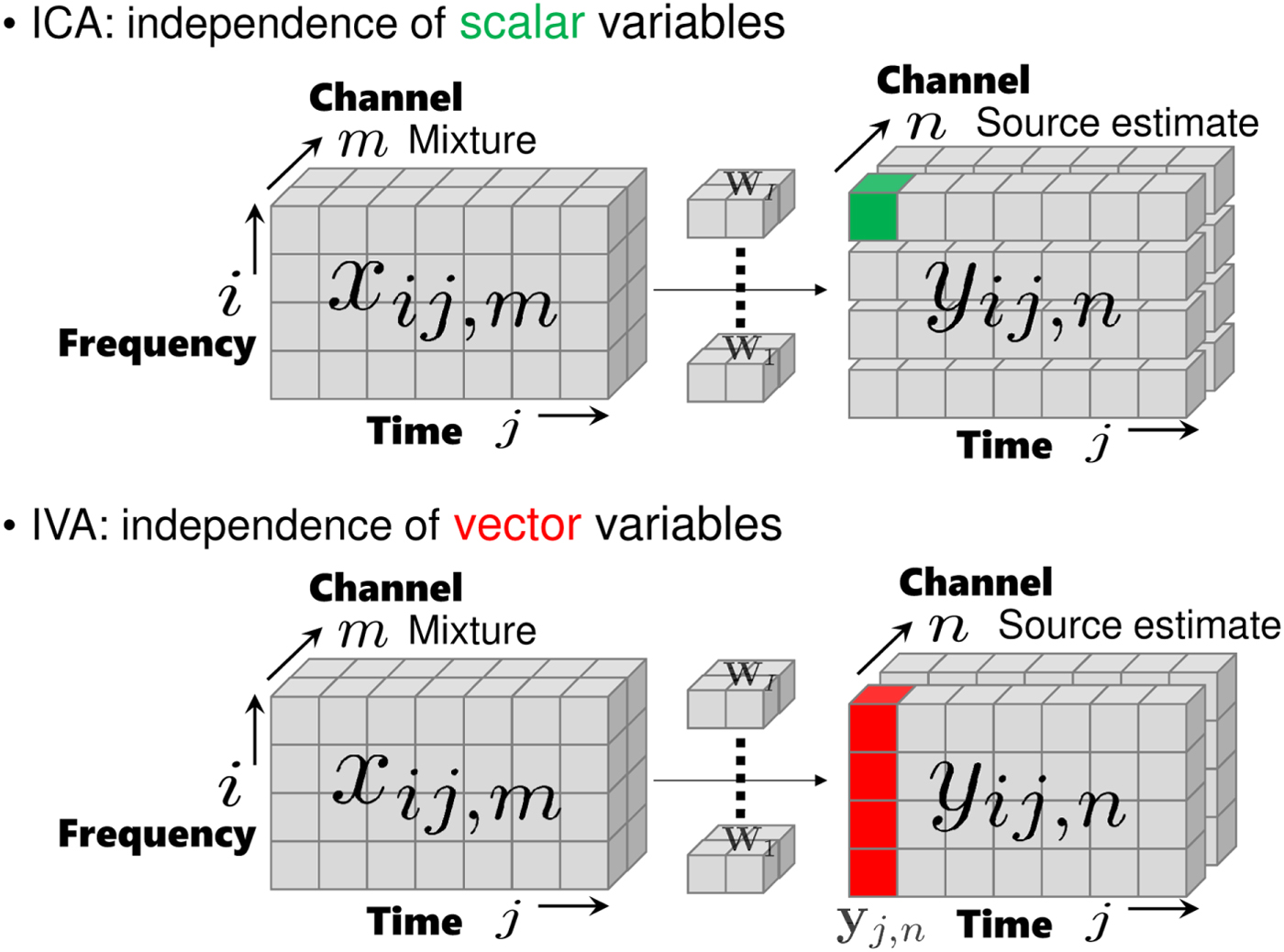

Fig. 4. Independence in ICA and IVA.

Comparing (9) and (14), we see that there are frequency dependences in the IVA cases. These dependences contribute to solving the permutation problem.

B) NMF and MNMF

Generally, NMF objective functions are defined as the distances or divergences between an observed matrix and a low-rank matrix. Popular distance/divergence measures are the Euclidean distance [31], the generalized Kullback–Leibler (KL) divergence [31], and the Itakura–Saito (IS) divergence [33]. In this paper, aiming to clarify the connection of NMF to IVA and ILRMA, we discuss NMF with the IS divergence (IS-NMF).

1) NMF

Let the sliced matrix depicted in the lower right of Fig. 3 be X, [X]_ij = x _ij. Microphone index m is omitted here for simplicity. The nonnegative values considered in IS-NMF are the power spectrograms |x _ij|², and they are approximated with the rank K structure

(15)$$ \vert x_{ij}\vert ^2 \approx \sum_{k=1}^K t_{ik}v_{kj} = \hat{x}_{ij},$$

with nonnegative matrices T, [T]_ik = t _ik, and V, [V]_kj = v _kj, for i = 1, …, I and j = 1, …, J. In a matrix notation, we have

(16)$${\bf X} = {\bf TV},$$

as a matrix factorization form. Figure 5 shows that a spectrogram can be modeled with this NMF model.

Fig. 5. NMF as spectrogram model fitting.

The objective function of IS-NMF can be derived in a maximum-likelihood sense. We assume that the likelihood of T and V for X is decomposed into matrix elements

(17)$$ p({\bf X}\vert {\bf T},{\bf V}) = \prod_{i=1}^I\prod_{j=1}^J p(x_{ij}\vert \hat{x}_{ij}),$$

and each element x _ij follows a zero-mean complex Gaussian distribution with variance $\hat{x}_{ij}$ defined in (15),

(18)$$ p(x_{ij}\vert \hat{x}_{ij}) \propto \displaystyle{1 \over \hat{x}_{ij}}\exp \left(-\displaystyle{\vert x_{ij}\vert ^2 \over \hat{x}_{ij}}\right).$$

Then, the objective function ${\cal C} ({\bf T},{\bf V}) = -\log p({\bf X}\vert {\bf T},{\bf V})$ is simply given as

(19)$$ {\cal C}({\bf T},{\bf V}) = \sum_{i=1}^I\sum_{j=1}^J \left[ \displaystyle{\vert x_{ij}\vert ^2 \over \hat{x}_{ij}} + \log\hat{x}_{ij} \right].$$

The IS divergence between |x _ij|² and $\hat{x}_{ij}$ is defined as [33]

(20)$$d_{IS}(\vert x_{ij}\vert ^2, \hat{x}_{ij}) = \displaystyle{\vert x_{ij}\vert ^2 \over \hat{x}_{ij}} - \log \displaystyle{\vert x_{ij}\vert ^2 \over \hat{x}_{ij}} - 1 ,$$

and is equivalent to the ij-element of the objective function (19) up to a constant term. How to minimize the objective function (19) will be explained in Section III.

2) MNMF

We now return to the left-hand side of Fig. 3 from the lower-right corner, and the scalar x _ij,m is extended to the channel-wise vector ${\bf x}_{ij} = [x_{ij,1},\ldots ,x_{ij,M}]^{\ssf T}$. The power spectrograms |x _ij|² considered in NMF are now extended to the outer product of the channel vector

(21)$$ {\ssf X}_{ij} = {\bf x}_{ij}{\bf x}^{\ssf H}_{ij} = \left[\matrix{\vert x_{ij,1}\vert ^2 & \ldots & \!\! x_{ij,1}x_{ij,M}^{\ast} \cr \vdots & \ddots & \vdots \cr x_{ij,M}x_{ij,1}^{\ast} \!\! & \ldots & \vert x_{ij,M}\vert ^2}\right].$$

To build a multichannel NMF model, let us introduce a Hermitian positive semidefinite matrix ${\ssf H}_{ik}$ that is the same size as ${\ssf X}_{ij}$ and models the spatial property [48,49,84,85] of the kth NMF basis in the ith frequency bin. Then, the outer products are approximated with a rank-K structure similar to (15),

(22)$$ {\ssf X}_{ij} \approx \sum_{k=1}^K {\ssf H}_{ik}t_{ik}v_{kj} = \hat{\ssf X}_{ij} .$$

The objective function of MNMF can basically be defined as the total sum $\sum _{i=1}^I \sum _{j=1}^J d_{IS}({\ssf X}_{ij}, \hat{\ssf X}_{ij})$ of the multichannel IS divergence (see [49] for the definition) between ${\ssf X}_{ij}$ and $\hat{\ssf X}_{ij}$, and can also be derived in a maximum-likelihood sense. Let $\underline{\bf H}$ be an I × K hierarchical matrix such that $[\underline{\bf H}]_{ik} = {\ssf H}_{ik}$. We assume that the likelihood of T, V, and $\underline{\bf H}$ for ${\cal X} = \{\{{\bf x}_{ij}\}_{i=1}^I\}_{j=1}^J$ is decomposed as

(23)$$ p({\cal X}\vert {\bf T},{\bf V},\underline{\bf H}) = \prod_{i=1}^I\prod_{j=1}^J p({\bf x}_{ij}\vert \hat{\ssf X}_{ij}),$$

and that each vector x_ij follows a zero-mean multivariate complex Gaussian distribution with the covariance matrix $\hat{\ssf X}_{ij}$ defined in (22),

(24)$$p({\bf x}_{ij}\vert \hat{\ssf X}_{ij}) \propto \displaystyle{1 \over {\rm det}\hat{\ssf X}_{ij}}\exp \left(- {\bf x}_{ij}^{\ssf H}\hat{\ssf X}_{ij}^{-1}{\bf x}_{ij}\right).$$

Then, similar to (19), the objective function ${\cal C} ({\bf T},{\bf V},\underline{\bf H}) = -\log p({\cal X}\vert {\bf T},{\bf V},\underline{\bf H})$ is given as

(25)$${\cal C}({\bf T},{\bf V},\underline{\bf H}) = \sum_{i=1}^I\sum_{j=1}^J \left[ {\bf x}_{ij}^{\ssf H}\hat{\ssf X}_{ij}^{-1}{\bf x}_{ij} + \log {\rm det}\hat{\ssf X}_{ij} \right].$$

How to minimize the objective function (25) will be explained in Section III.

The spatial properties ${\ssf H}_{ik}$ learned by the model (22) can be used as spatial cues for clustering NMF bases. In particular, the argument $\arg ([{\ssf H}_{ik}]_{mm'})$ of an off-diagonal element m ≠ m′ represents the phase difference between the two microphones m and m′. The left plot of Fig. 6 follows model (22) with k = 1, …, 10. The 10 bases can be clustered into two sources based on their arguments as a post-processing. However, a more elegant way is to introduce the cluster-assignment variable [89] z _kn ≥ 0, $\sum _{n=1}^N z_{kn}=1$, k = 1, …, K, n = 1, …, N, and the source-wise spatial property ${\ssf H}_{in}$, and express the basis-wise property as ${\ssf H}_{ik} = \sum _{n=1}^N z_{kn}{\ssf H}_{in}$. As a result, the model (22) and the objective function (25) respectively become

(26)$$\hat{\ssf X}_{ij} = \sum_{k=1}^K \sum_{n=1}^N z_{kn}{\ssf H}_{in}t_{ik}v_{kj},$$

(27)$${\cal C}({\bf T},{\bf V},\underline{\bf H},{\bf Z}) = \sum_{i=1}^I\sum_{j=1}^J \left[ {\bf x}_{ij}^{\ssf H}\hat{\ssf X}_{ij}^{-1}{\bf x}_{ij} + \log{\rm det}\hat{\ssf X}_{ij}, \right]$$

with [Z]_kn = z _kn and the size of $\underline{\bf H}$ being I × N. The middle plot of Fig. 6 shows the result following the model (26). We see that source-wise spatial properties are successfully learned. The objective function (27) can be minimized in a similar manner to (25).

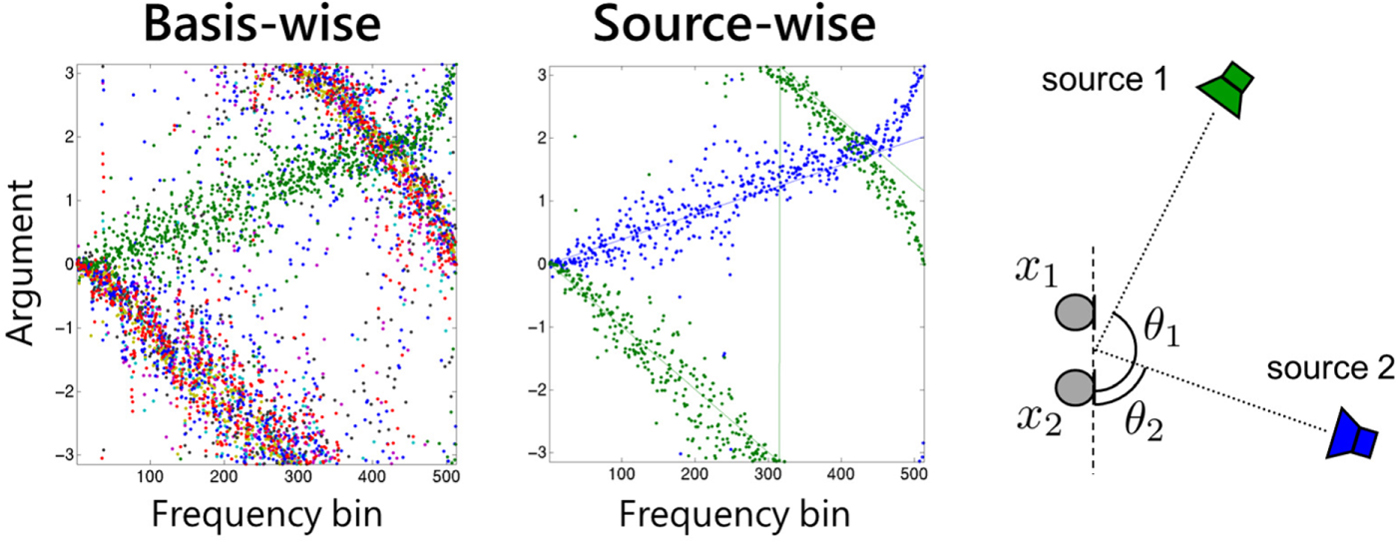

Fig. 6. Example of MNMF-learned spatial property. The left and middle plots show the learned complex arguments ${\rm arg}([{\ssf H}_{ik}]_{12}), k=1,\ldots,10$, and ${\rm arg}([{\ssf H}_{in}]_{12}), n=1,2$, respectively. The right figure illustrates the corresponding two-source two-microphone situation.

C) ILRMA

ILRMA can be explained in two ways, as there are two paths in Fig. 2.

1) Extending IVA with NMF

The first way is to extend IVA by introducing NMF for source estimates, as illustrated in Fig. 7, with the aim of developing more precise spectral models. Let the objective function (13) of IVA be rewritten as

(28)$${\cal C}({\cal W}) = \sum_{n=1}^N G({\bf Y}_{n}) -2J\sum_{i=1}^I\log \vert {\rm det}\,{\bf W}_i\vert$$

with Y_n being an I × J matrix, [Y_n]_ij = y _ij,n. Then, let us introduce the NMF model for Y_n as

(29)$$p({\bf Y}_{n}\vert {\bf T}_n,{\bf V}_n) = \prod_{i=1}^I \prod_{j=1}^J p(y_{ij,n}\vert \hat{y}_{ij,n})$$

(30)$$p(y_{ij,n}\vert \hat{y}_{ij,n}) \propto \displaystyle{1 \over \hat{y}_{ij,n}}\exp\left( -\displaystyle{\vert y_{ij,n}\vert ^2 \over \hat{y}_{ij,n}} \right)$$

(31)$$\hat{y}_{ij,n} =\sum_{k=1}^K t_{ik,n}v_{kj,n}$$

with [T_n]_ik = t _ik,n and [V_n]_kj = v _kj,n. The objective function is then

(32)$$\eqalign{{\cal C}({\cal W},\{{\bf T}_n\}_{n=1}^N, \{{\bf V}_n\}_{n=1}^N) &=\sum_{n=1}^N\sum_{i=1}^I\sum_{j=1}^J \left[ \displaystyle{\vert y_{ij,n}\vert ^2 \over \hat{y}_{ij,n}} + \log\hat{y}_{ij,n} \right]\cr &\quad -2J\sum_{i=1}^I\log \vert {\rm det}\,{\bf W}_i\vert.}$$

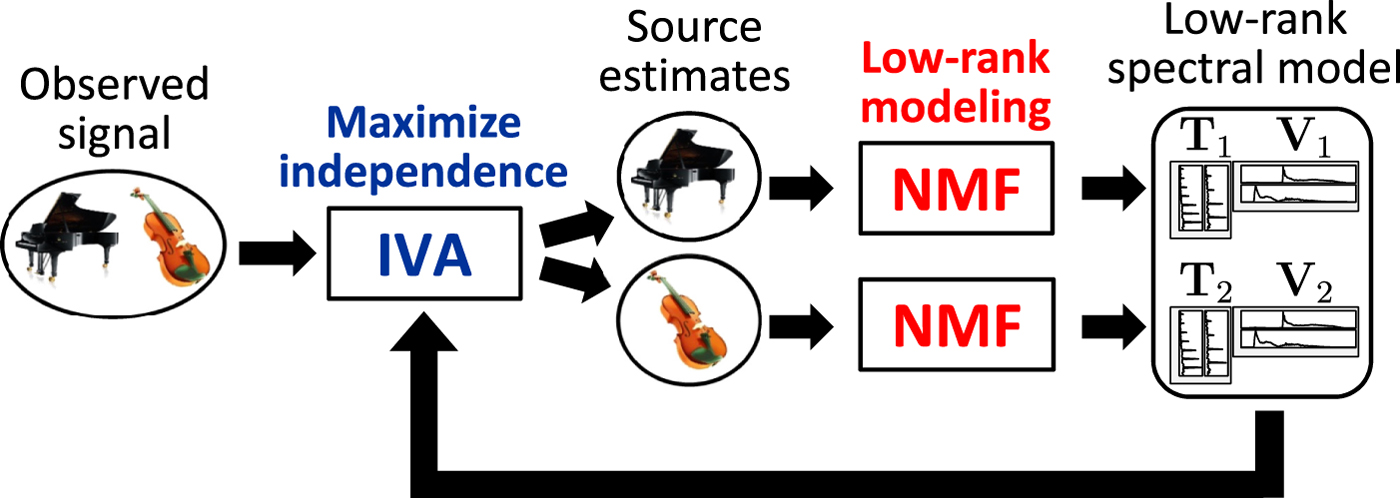

Fig. 7. ILRMA: unified method of IVA and NMF.

2) Restricting MNMF

The second way is to restrict MNMF in the following manner for computational efficiency. Let the spatial property matrix ${\ssf H}_{in}$ be restricted to rank-1 ${\ssf H}_{in}={\bf h}_{in}{\bf h}_{in}^{\ssf H}$ with ${\bf h}_{in} = [h_{i1n},\ldots ,h_{iMn}]^{\ssf T}$. Then, the MNMF model (26) can be simplified as

(33)$$\hat{\ssf X}_{ij} = {\bf H}_i{\bf D}_{ij}{\bf H}_i^{\ssf H}$$

with H_i = [h_i1, …, h_iN] and an N × N diagonal matrix D_ij whose nth diagonal element is

(34)$$\hat{y}_{ij,n} = \sum_{k=1}^K z_{kn}t_{ik}v_{kj}.$$

We further restrict the mixing system to be determined, i.e., N=M, enabling us to convert the mixing matrix H_i to the separation matrix W_i by ${\bf H}_i = {\bf W}_i^{-1}$. Substituting (33) into (27), we have

(35)$$\eqalign{{\cal C}({\cal W},{\bf T},{\bf V},{\bf Z}) &=\sum_{i=1}^I\sum_{j=1}^J\sum_{n=1}^N\left[ \displaystyle{\vert y_{ij,n}\vert ^2 \over \hat{y}_{ij,n}} + \log\hat{y}_{ij,n} \right]\cr &\quad -2J\sum_{i=1}^I\log\vert {\rm det}\,{\bf W}_i\vert.}$$

3) Difference between two models

The two ILRMA objective functions (32) and (35) are different in the models (31) and (34) of the source estimates. In (31), the NMF bases are not shared among the source estimates n through the optimization process. In (34), the NMF bases are shared at the beginning of the optimization in accordance with randomly generated cluster-assignment variables 0 ≤ z _kn ≤ 1, and assigned dynamically to the source estimates by optimizing the variable z _kn.

How to optimize the objective functions (32) and (35) will be explained in the next section.

III. OPTIMIZATION

The objective functions (8), (13), (19), (25), (27), (32), and (35) can be optimized in various ways. Regarding ICA (8), for instance, gradient descent [23], natural gradient [24], FastICA [27,90], and auxiliary function-based optimization (AuxICA) [29], to name a few, have been proposed as optimization methods. This paper focuses on an auxiliary function approach because all the above objective functions can efficiently be optimized by updates derived from this approach.

A) Auxiliary function approach

This subsection explains the general framework of the approach known as the majorization-minimization algorithm [61–63]. Let θ be a set of objective variables, e.g., θ = {T, V} in the case of NMF (19). For an objective function ${\cal C} (\theta )$, an auxiliary function ${\cal C} ^+(\theta, \tilde{\theta})$ with a set of auxiliary variables $\tilde{\theta}$ satisfies the following two conditions.

• • The auxiliary function is greater or equal to the objective function

  (36)$$ {\cal C}^+(\theta,\tilde{\theta}) \geq {\cal C}(\theta).$$

• • When minimized with respect to the auxiliary variables, both functions become the same,

  (37)$$ {\rm min}_{\tilde{\theta}}\,{\cal C}^+(\theta,\tilde{\theta}) = {\cal C}(\theta).$$

With these conditions, one can indirectly minimize the objective function ${\cal C} (\theta)$ by minimizing the auxiliary function ${\cal C} ^+(\theta ,\tilde{\theta})$ through the iteration of the following updates:

1. (i) the update of auxiliary variables

   (38)$$ \tilde{\theta}^{(\ell)} \leftarrow {\rm argmin}_{\tilde{\theta}}\, {\cal C}^+(\theta^{(\ell-1)},\tilde{\theta}) ,$$

2. (ii) the update of objective variables

   (39)$$ \theta^{(\ell)} \leftarrow {\rm argmin}_{\theta}\, {\cal C}^+(\theta,\tilde{\theta}^{(\ell)}),$$

as illustrated in Fig. 8. The superscript $\cdot ^{(\ell )}$ indicates that the update is in the ℓth iteration, starting from the initial sets θ⁽⁰⁾ and $\tilde{\theta}^{(0)}$ of variables (randomly initialized in most cases).

Fig. 8. Majorization-minimization: minimizing the auxiliary function indirectly minimizes the objective function.

A typical situation in which this approach is taken is that the objective function is complicated and not easy to directly minimize but an auxiliary function can be defined in a way that it is easy to minimize.

In the next three subsections, we explain how to minimize the objective functions introduced in Section II. The order is NMF/MNMF, IVA/ICA, and ILRMA, which is different from that of Section II. The reason why the NMF/MNMF case comes first is that the derivation is simpler than the IVA/ICA case and directly by the auxiliary function approach.

B) NMF and MNMF

1) NMF

For the objective function (19) with $\hat{x}_{ij}$ defined in (15), we employ the auxiliary function

(40)$$\eqalign{&{\cal C}^+({\bf T},{\bf V},{\cal R},{\bf Q})\cr &\quad = \sum_{i=1}^I\sum_{j=1}^J \left[ \sum_{k=1}^K \displaystyle{r_{ij,k}^2\vert x_{ij}\vert ^2 \over t_{ik}v_{kj}} + \displaystyle{\hat{x}_{ij} \over q_{ij}} + \log q_{ij} -1 \right],}$$

with auxiliary variables ${\cal R}$, $[{\cal R}]_{ij,k} = r_{ij,k}$, and Q, [Q]_ij = q _ij, that satisfy r _ij,k ≥ 0, $\sum _{k=1}^K r_{ij,k} = 1$ and q _ij > 0. The auxiliary function ${\cal C} ^+$ satisfies conditions (36) and (37) because the following two equations hold. The first one,

(41)$$\displaystyle{1 \over \hat{x}_{ij}} = \displaystyle{1 \over \sum_{k=1}^K t_{ik}v_{kj}} \leq \sum_{k=1}^K \displaystyle{r_{ij,k}^2 \over t_{ik}v_{kj}},$$

originates from the fact that a reciprocal function is convex and therefore satisfies Jensen's inequality. The equality holds when $r_{ij,k} = ({t_{ik}v_{kj}})/({\hat{x}_{ij}})$. The second one,

(42)$$ \log \hat{x}_{ij} \leq \log q_{ij} + \displaystyle{\hat{x}_{ij}-q_{ij} \over q_{ij}} ,$$

is derived by the Taylor expansion of the logarithmic function. The equality holds when $q_{ij} = \hat{x}_{ij}$.

The update (38) of the auxiliary variables is directly derived from the above equality conditions,

(43)$$ r_{ij,k} \leftarrow \displaystyle{t_{ik}v_{kj} \over \hat{x}_{ij}}, \ {}^{\forall}i,j,k \quad {\rm and} \quad q_{ij} \leftarrow \hat{x}_{ij} , {}^{\forall}i,j .$$

The update (39) of the objective variables is derived by letting the partial derivatives of ${\cal C} ^+$ with respect to the variables T and V be zero,

(44)$$\eqalign{& t_{ik}^2 \leftarrow \displaystyle{\sum_{j=1}^J({r_{ij,k}^2\vert x_{ij}\vert ^2})/({v_{kj}}) \over \sum_{j=1}^J({v_{kj}})/({q_{ij}}) } \quad {\rm and}\cr & v_{kj}^2 \leftarrow \displaystyle{\sum_{i=1}^I({r_{ij,k}^2\vert x_{ij}\vert ^2})/({t_{ik}}) \over \sum_{i=1}^I({t_{ik}})/({q_{ij}})}.}$$

Substituting (43) into (44) and simplifying the resulting expressions, we have well-known multiplicative update rules

(45)$$\eqalign{&t_{ik} \leftarrow t_{ik} \sqrt{\displaystyle{\sum_{j=1}^J(({v_{kj}})/({\hat{x}_{ij}}))({\vert x_{ij}\vert ^2})/({\hat{x}_{ij}}) \over \sum_{j=1}^J({v_{kj}})/({\hat{x}_{ij}})} } \cr &v_{kj} \leftarrow v_{kj}\sqrt{ \displaystyle{\sum_{i=1}^I(({t_{ik}})/({\hat{x}_{ij}}))({\vert x_{ij}\vert ^2})/({\hat{x}_{ij}}) \over \sum_{i=1}^I({t_{ik}})/({\hat{x}_{ij}})} },}$$

for minimizing the IS-NMF objective function (19).

2) MNMF

The derivation of the NMF update rules can be extended to MNMF. Let us first introduce auxiliary variables ${\ssf R}_{ij,k}$ and ${\ssf Q}_{ij}$ of M × M Hermitian positive semidefinite matrices as extensions of r _ij,k and q _ij, respectively. Then, for the MNMF objective function (25), let us employ the auxiliary function

(46)$$\eqalign{& {\cal C}^+({\bf T},{\bf V},\underline{\bf H}, \underline{\cal R},\underline{\bf Q})\cr &\quad = \sum_{i=1}^I\sum_{j=1}^J \sum_{k=1}^K \displaystyle{{\bf x}_{ij}^{\ssf H}{\ssf R}_{ij,k}{\ssf H}_{ik}^{-1}{\ssf R}_{ij,k} {\bf x}_{ij} \over t_{ik}v_{kj}} \cr &\qquad + \sum_{i=1}^I\sum_{j=1}^J \left[ {\rm tr}(\hat{\ssf X}_{ij}{\ssf Q}_{ij}^{-1}) + \log{\rm det}\,{\ssf Q}_{ij} -M \right],}$$

with auxiliary variables $\underline{\cal R}$, $[\underline{\cal R}]_{ij,k} = {\ssf R}_{ij,k}$, and $\underline{\bf Q}$, $[\underline{\bf Q}]_{ij}={\ssf Q}_{ij}$, that satisfy $\sum _{k=1}^K {\ssf R}_{ij,k} = {\ssf I}$ with ${\ssf I}$ being the identity matrix of size M. The auxiliary function ${\cal C} ^+$ satisfies the conditions (36) and (37) because the following two equations hold. The first one,

(47)$${\rm tr} \left[\left(\sum_{k=1}^K{\ssf H}_{ik}t_{ik}v_{kj}\right)^{-1} \right] \leq \sum_{k=1}^K \displaystyle{{\rm tr}({\ssf R}_{ij,k}{\ssf H}_{ik}^{-1}{\ssf R}_{ij,k}) \over t_{ik}v_{kj}} ,$$

is a matrix extension of (41). The equality holds when ${\ssf R}_{ij,k} = t_{ik}v_{kj}{\ssf H}_{ik}\hat{\ssf X}_{ij}^{-1}$. The second one [66],

(48)$$ \log{\rm det}\hat{\ssf X}_{ij} \leq \log{\rm det}\,{\ssf Q}_{ij} + {\rm tr}( \hat{\ssf X}_{ij}{\ssf Q}_{ij}^{-1}) -M ,$$

is a matrix extension of (42). The equality holds when ${\ssf Q}_{ij} = \hat{\ssf X}_{ij}$.

The update (38) of the auxiliary variables is directly derived from the above equality conditions,

(49)$$ {\ssf R}_{ij,k} \leftarrow t_{ik}v_{kj}{\ssf H}_{ik}\hat{\ssf X}_{ij}^{-1} , {}^\forall i,j,k \quad {\rm and} \quad {\ssf Q}_{ij} \leftarrow \hat{\ssf X}_{ij}, {}^{\forall}i,j.$$

The update (39) of the objective variables is derived by letting the partial derivatives of ${\cal C} ^+$ with respect to the variables T, V, and $\underline{\bf H}$ be zero,

(50)$$\eqalign{&t_{ik}^2 \leftarrow \displaystyle{\sum_{j=1}^J ({1}/{v_{kj}}) {\bf x}_{ij}^{\ssf H}{\ssf R}_{ij,k}{\ssf H}_{ik}^{-1}{\ssf R}_{ij,k}{\bf x}_{ij} \over \sum_{j=1}^J v_{kj} {\rm tr}({\ssf Q}_{ij}^{-1}{\ssf H}_{ik}) } \cr &v_{ik}^2 \leftarrow \displaystyle{\sum_{i=1}^I ({1}/{t_{ik}}) {\bf x}_{ij}^{\ssf H}{\ssf R}_{ij,k}{\ssf H}_{ik}^{-1}{\ssf R}_{ij,k}{\bf x}_{ij} \over \sum_{i=1}^I t_{ik} {\rm tr}({\ssf Q}_{ij}^{-1}{\ssf H}_{ik}) } \cr {\ssf H}_{ik} &\left( t_{ik}\sum_{j=1}^J{\ssf Q}_{ij}^{-1}v_{kj}\right) {\ssf H}_{ik} = \sum_{j=1}^J \displaystyle{{\ssf R}_{ij,k}{\ssf X}_{ij}{\ssf R}_{ij,k} \over t_{ik}v_{kj}}.}$$

Substituting (50) into (51) and simplifying the resulting expressions, we have the following multiplicative update rules for minimizing the MNMF objective function (25):

(51)$$ \eqalign{& t_{ik} \leftarrow t_{ik}\sqrt{\displaystyle{\sum_{j=1}^J v_{kj} {\bf x}_{ij}^{\ssf H}\hat{\ssf X}_{ij}^{-1}{\ssf H}_{ik}\hat{\ssf X}_{ij}^{-1}{\bf x}_{ij} \over \sum_{j=1}^J v_{kj} {\rm tr}(\hat{\ssf X}_{ij}^{-1}{\ssf H}_{ik})}}\cr & v_{kj} \leftarrow v_{kj}\sqrt{\displaystyle{\sum_{i=1}^I t_{ik} {\bf x}_{ij}^{\ssf H}\hat{\ssf X}_{ij}^{-1}{\ssf H}_{ik}\hat{\ssf X}_{ij}^{-1}{\bf x}_{ij} \over \sum_{i=1}^I t_{ik} {\rm tr}(\hat{\ssf X}_{ij}^{-1}{\ssf H}_{ik})} }\cr & {\ssf H}_{ik} \leftarrow {\ssf A}^{-1}\#({\ssf H}_{ik}{\ssf B}{\ssf H}_{ik}),}$$

where # calculates the geometric mean [91] of two positive semidefinite matrices as

(52)$$ {\ssf X}\#{\ssf Y} = {\ssf X}({\ssf X}^{-1}{\ssf Y})^{1/2}$$

and ${\ssf A}=\sum_{j=1}^J v_{kj}\hat{\ssf X}_{ij}^{-1}$ and ${\ssf B}=\sum _{j=1}^J v_{kj}\hat{\ssf X}_{ij}^{-1}{\ssf X}_{ij}\hat{\ssf X}_{ij}^{-1}$.

So far, we have explained the optimization of the objective function (25). The other objective function, (27) with (26), can be optimized similarly [49].

C) IVA and ICA

We next explain how to minimize the IVA objective function (13). The ICA case (8) can simply be derived by letting I=1 in the IVA case.

1) Auxiliary function for contrast function

Since the contrast function G(y_j,n) = −log p(y_j,n) is generally a complicated part to be minimized, we first discuss an auxiliary function for a contrast function. The contrast function with the density (14) is given as

$$G({\bf y}_{j,n})=\displaystyle{1 \over \beta}\sqrt{\vert \vert {\bf y}_{j,n}\vert \vert _2^2+\alpha}$$

with

$$\vert \vert {\bf y}_{j,n}\vert \vert _2 = \sqrt{\sum_{i=1}^I \vert y_{ij,n}\vert ^2}$$

being the L2 norm. It is common that a contrast function depends only on the L2 norm. If there is a real-valued function G _R(r _j,n) that satisfies G _R(||y_j,n||₂) = G(y_j,n) and G′_R(r _j,n)/r _j,n is monotonically decreasing in r _j,n ≥ 0, we have an auxiliary function,

(53)$$ G^+({\bf y}_{j,n}, r_{j,n}) = \displaystyle{G'_R(r_{j,n}) \over 2r_{j,n}} \vert \vert {\bf y}_{j,n}\vert \vert _2^2 + F(r_{j,n}),$$

that satisfies [43] the two conditions (36) and (37). The term F(r _j,n) does not depend on the objective variable y_j,n. The equality holds when r _j,n = ||y_j,n||₂. For the density function (14), the coefficient ((G′_R(r _j,n))/(2r _j,n)) is given as

$$\displaystyle{1 \over 2\beta\sqrt{r_{j,n}^2+\alpha}}.$$

2) Auxiliary function for objective function

Now, we introduce an auxiliary function for the IVA objective function (13) by simply replacing G(y_j,n) with G ⁺(y_j,n, r _j,n),

(54)$$ {\cal C}^+({\cal W}, {\bf R}) = \sum_{j=1}^J \sum_{n=1}^N G^+({\bf y}_{j,n}, r_{j,n}) -2J\sum_{i=1}^I \log\vert {\rm det}\,{\bf W}_i\vert,$$

with auxiliary variables R, [R]_j,n = r _j,n. The equality ${\cal C} ^+({\cal W}, {\bf R}) = {\cal C} ({\cal W})$ is satisfied when r _j,n = ||y_j,n||₂ for all j = 1, …, J and n = 1, …, N. This corresponds to the update (38) of the auxiliary variables.

For the minimization of ${\cal C} ^+$ with respect to the set ${\cal W}=\{{\bf W}_i\}_{i=1}^I$ of separation matrices

(55)$$ {\bf W}_i = \left[\matrix{{\bf w}_{i,1}^{\ssf H} \cr \vdots \cr {\bf w}_{i,N}^{\ssf H}} \right],$$

let the auxiliary function ${\cal C} ^+$ be rewritten as follows by omitting the terms F(r _j,n) that do not depend on ${\cal W}$:

(56)$$ J\sum_{i=1}^I \left[\sum_{n=1}^N {\bf w}_{i,n}^{\ssf H}{\bf U}_{i,n}{\bf w}_{i,n} -2 \log\vert {\rm det}\,{\bf W}_i\vert \right]$$

(57)$${\bf U}_{i,n} = \displaystyle{1 \over J}\sum_{j=1}^J \displaystyle{G'_R(r_{j,n}) \over 2r_{j,n}} {\bf x}_{ij}{\bf x}_{ij}^{\ssf H}.$$

Note that $\vert \vert {\bf y}_{j,n}\vert \vert _2^2=\sum _{i=1}^I y_{ij,n} y_{ij,n}^{\ast}$ and $y_{ij,n}={\bf w}_{i,n}^{\ssf H}{\bf x}_{ij}$ from (4) are used in the rewriting. Letting the gradient $({\partial {\cal C} ^+})/({\partial {\bf w}_{i,n}^{\ast}})$ of (55), equivalently the gradient of (57), with respect to w_i,n* be zero, we have N simultaneous equations [43],

(58)$$ {\bf w}_{i,m}^{\ssf H} {\bf U}_{i,n} {\bf w}_{i,n} = \delta_{mn}, \quad m=1,\ldots,N,$$

where δ_mn is the Kronecker delta. Considering all N rows of the separation matrix (56), we then have N × N simultaneous equations, i.e., (59) for n = 1, …, N. This problem has been formulated as the hybrid exact-approximate diagonalization (HEAD) [92] for U_i,1, …, U_i,N. Solving HEAD problems to update W_i for i = 1, …, I constitutes the update (39) of the objective variables.

3) Solving the HEAD problem

An efficient way [43] to solve the HEAD problem for a separation matrix W_i is to calculate

(59)$$ {\bf w}_{i,n} \leftarrow ({\bf W}_i {\bf U}_{i,n})^{-1} {\bf e}_n,$$

for each n, where e_n is the vector whose nth element is one and the other elements are zero, and update it as

(60)$$ {\bf w}_{i,n} \leftarrow \displaystyle{{\bf w}_{i,n} \over \sqrt{{\bf w}_{i,n}^{\ssf H}{\bf U}_{i,n}{\bf w}_{i,n}}},$$

to accommodate the HEAD constraint ${\bf w}_{i,n}^{\ssf H}{\bf U}_{i,n}{\bf w}_{i,n}=1$.

4) Whole AuxIVA algorithm

Algorithm 1 summarizes the procedures discussed so far in this subsection. To be concrete, the algorithm description is specific to the case of the super-Gaussian density (14).

D) ILRMA

The ILRMA objective function (32) can be minimized by alternating NMF updates similar to (45) and the HEAD problem solver (as the IVA part), as illustrated in Fig. 7.

Let us first consider the NMF updates of $\{{\bf T}_n\}_{n=1}^N$ and $\{{\bf V}_n\}_{n=1}^N$ by focusing on the first term of (32). Note that for each n, the objective function is the same as (19) if |y _ij,n|² and $\hat{y}_{ij,n}$ are replaced with |x _ij|² and $\hat{x}_{ij}$, respectively. We thus have the following updates for n = 1, …, N:

(61)$$\matrix{t_{ik,n} \leftarrow t_{ik,n}\sqrt{ \displaystyle{\sum_{j=1}^J(({v_{kj,n}})/({\hat{y}_{ij,n}}))(({\vert y_{ij,n}\vert ^2}/( {\hat{y}_{ij}})) \over \sum_{j=1}^J({v_{kj,n}})/({\hat{y}_{ij,n}})} } \cr v_{kj,n} \leftarrow v_{kj,n}\sqrt{ \displaystyle{\sum_{i=1}^I(({t_{ik,n}})/({\hat{y}_{ij,n}}))(({\vert y_{ij,n}\vert ^2})/( {\hat{y}_{ij,n}})) \over \sum_{i=1}^I({t_{ik,n}})/({\hat{y}_{ij,n}})}}.}$$

Next we consider the update of ${\cal W}$ as the IVA part. For the objective function (32), let us omit the $\log \hat{y}_{ij,n}$ terms that do not depend on ${\cal W}$,

(62)$$ \sum_{n=1}^N\sum_{i=1}^I\sum_{j=1}^J \displaystyle{\vert y_{ij,n}\vert ^2 \over \hat{y}_{ij,n}} -2J\sum_{i=1}^I\log \vert {\rm det}\,{\bf W}_i\vert,$$

and then rewrite it in a similar way to (56),

(63)$$J\sum_{i=1}^I\left[\sum_{n=1}^N {\bf w}_{i,n}^{\ssf H}{\bf U}_{i,n}{\bf w}_{i,n} -2\log \vert {\rm det}\,{\bf W}_i\vert \right],$$

(64)$${\bf U}_{i,n} = \displaystyle{1 \over J}\sum_{j=1}^J \displaystyle{1 \over \hat{y}_{ij,n}} {\bf x}_{ij}{\bf x}_{ij}^{\ssf H}.$$

Since (63) has the same form as (56), the optimization reduces to solving the HEAD problem for the weighted covariance matrices (64).

Note that no auxiliary function is used to derive (63), unlike in the derivation of (56). A very similar objective function to (62) is derived for the IVA objective function (13) if we assume a Gaussian with time-varying variance $\sigma _{j,n}^2$ [44],

(65)$$ p({\bf y}_{j,n}) \propto \displaystyle{1 \over \sigma_{j,n}^2} \exp\left(-\displaystyle{\sum_{i=1}^I \vert y_{ij,n}\vert ^2 \over \sigma_{j,n}^2}\right).$$

The difference between the objective functions is in $\hat{y}_{ij,n}$ and $\sigma _{j,n}^2$, and this difference exactly corresponds to the difference between ILRMA and IVA (see Fig. 4 in [56], where ILRMA was called determined rank-1 MNMF).

So far, we have explained the optimization of the objective function (32). The other objective function, (35) with (34), can be optimized similarly [56].

IV. EXPERIMENT

This section shows experimental results of the discussed methods for a simple two-source two-microphone situation. Since this paper is a review paper, detailed experimental results under a variety of conditions are not shown here. Such experimental results can be found in the original papers, e.g., [49,56]. The purpose of this section is to illustrate the characteristics of the reviewed five methods (ICA, IVA, ILRMA, NMF, MNMF).

In the experiment, we measured impulse responses from two loudspeakers to two microphones in a room whose reverberation time was RT₆₀ = 200 ms. Then, a music source and a speech source were convolved (their source images at the first microphone are shown at the left most of Fig. 9) and mixed for 8-second microphone observations. The sampling frequency was 8 kHz. The frame width and shift of the STFT were 256 ms and 64 ms, respectively. For the density functions of ICA (9) and IVA (14), we set the parameters as α = β = 0.01. The number of update iterations was 50 for ICA, IVA, ILRMA, and NMF to attain sufficient separations. However, for MNMF, 50 was insufficient and we iterated the updates 200 times to obtain sufficient separations.

Fig. 9. Source images (left-most column) and source estimates by ICA, IVA, and ILRMA (three columns on the right) whose scales were adjusted by projection back (PB). The first and second rows correspond to music and speech sources, respectively. The plots are spectrograms colored in log scale with large values being yellow. The ICA estimates were not well separated in a full-band sense (SDRs = 6.27 dB, 1.38 dB). The IVA estimations were well separated (SDRs = 13.52 dB, 8.79 dB). The ILRMA estimates were even better separated (SDRs = 16.78 dB, 12.33 dB). Detailed investigations are shown in Fig. 10.

The three plots in the right-hand side of Fig. 9 show the separation results obtained by ICA, IVA, and ILRMA. These are the spectrograms after scaling ambiguities were adjusted to the source images shown in the leftmost by the projection back (PB) approach [93–97], specifically by the procedure described in [98]. Signal-to-distortion ratios (SDRs) [99] are reported in the captions to show how well the results were separated. To investigate the characteristics of these methods, Fig. 10 shows the source estimates without PB and related auxiliary variables. Specifically, in this example, the speech source had a pause at around from 3 to 4 seconds. Some of the IVA variables R and ILRMA variables V shown in the bottom row successfully extracted the pause and contributed to the separation.

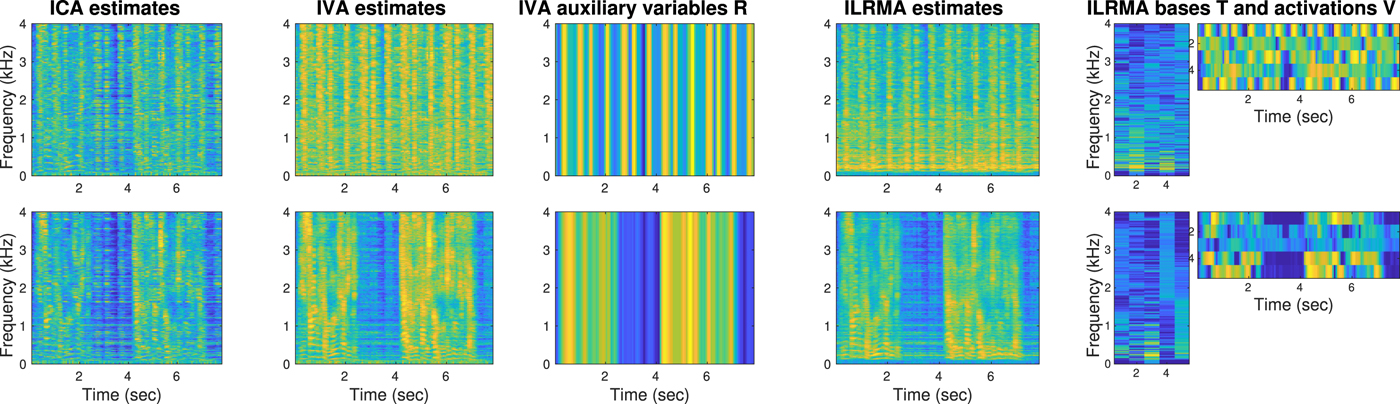

Fig. 10. (Continued from Fig. 9) Source estimates and auxiliary variables of ICA, IVA, and ILRMA. The source estimates y _ij,n were not scale-adjusted, and had direct links to the auxiliary variables. The ICA estimates were not well separated because there was no communication channel among frequency bins (auxiliary variables used in the other two methods) and the permutation problem was not solved. The IVA estimates were well separated. The IVA auxiliary variables R, [R]_j,n = r _j,n, represented the activities of source estimates and helped to solve the permutation problem. The ILRMA estimates were even better separated. The ILRMA bases T and activations V, [T_n]_ik = t _ik,n, [V_n]_kj = v _kj,n, modeled the source estimates with low-rank matrices, which were richer representations than the IVA auxiliary variables R.

Figure 11 shows how NMF and MNMF modeled and separated the two-channel mixtures. NMF extracted 10 bases for each channel. However, there was no link between the bases and sources. Therefore, separation to two sources was not attained in the NMF case. In the MNMF case, 10 NMF bases were extracted for the multichannel mixtures, and clustered and separated into two sources.

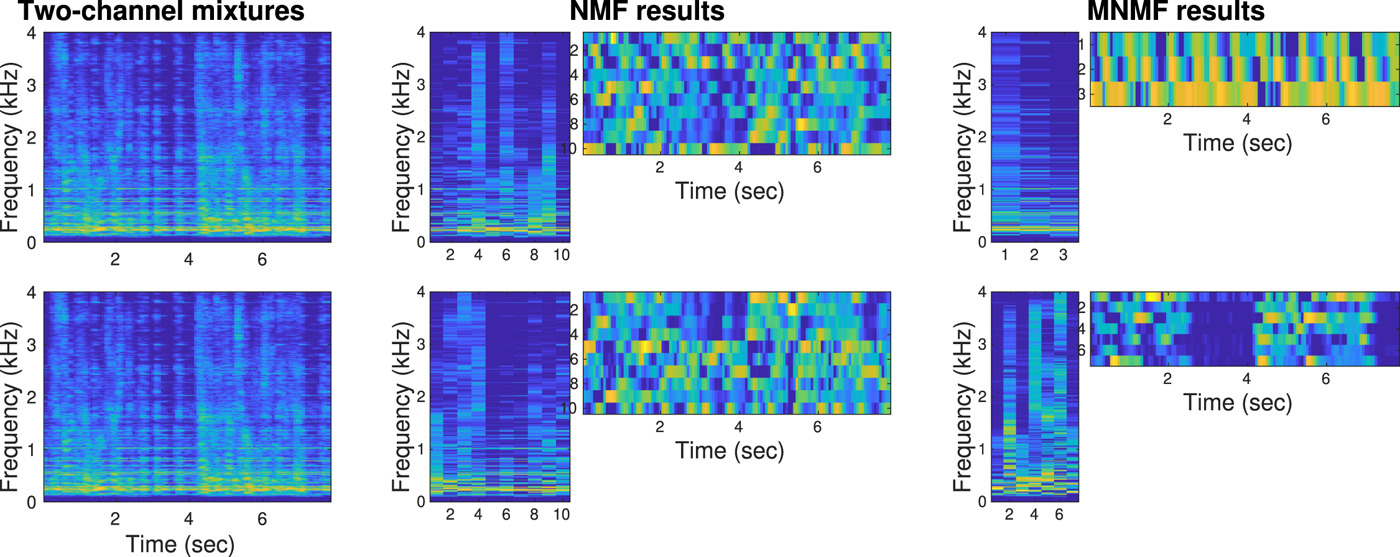

Fig. 11. Experimental mixtures and variables (log scale, large values in yellow) of NMF and MNMF. The Two-channel mixtures look very similar in a power spectrum sense. However, the phases (not shown) are considerably different to achieve effective multichannel separation. The NMF results were obtained corresponding to each mixture. No multichannel information was exploited, and thus the two sources were not separated. In the MNMF results, 10 NMF bases were clustered into two classes according to the multichannel information ${\ssf H}_{in}$ in the model (26). The off-diagonal elements $[{\ssf H}_{in}]_{mm'}, m\ne m'$, expressed the phase differences between the microphones as spatial cues, and the two sources were well separated (SDRs = 14.96 dB, 10.31 dB).

V. CONCLUSION

Five methods for BSS of audio signals have been explained. ICA and IVA resort to the independence and super-Gaussianity of sources. NMF and MNMF model spectrograms with low-rank structures. ILRMA integrates these two different lines of methods and exploits the independence and the low-rankness of sources. All the objective functions regarding these methods can be optimized by auxiliary function approaches. This review paper has explained these facts in a structured and concise manner, and hopefully will contribute to the development of further methods for BSS.
